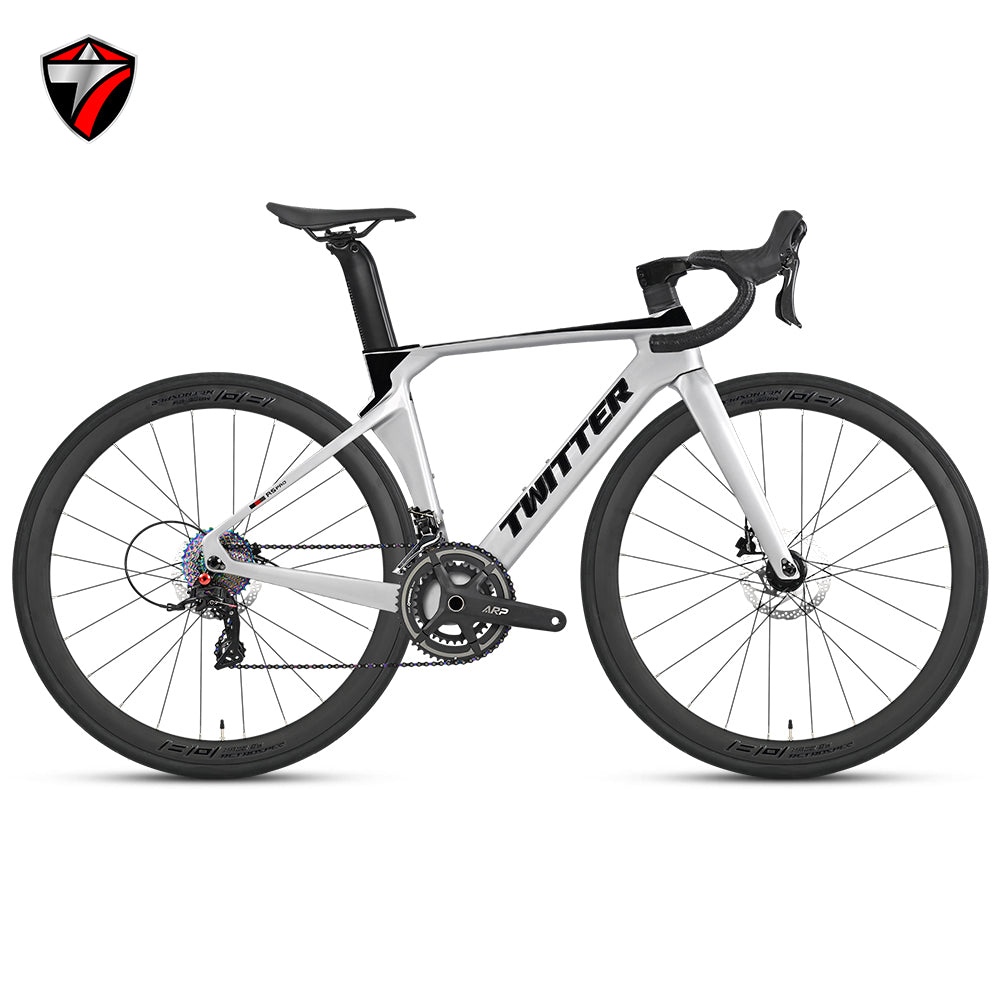

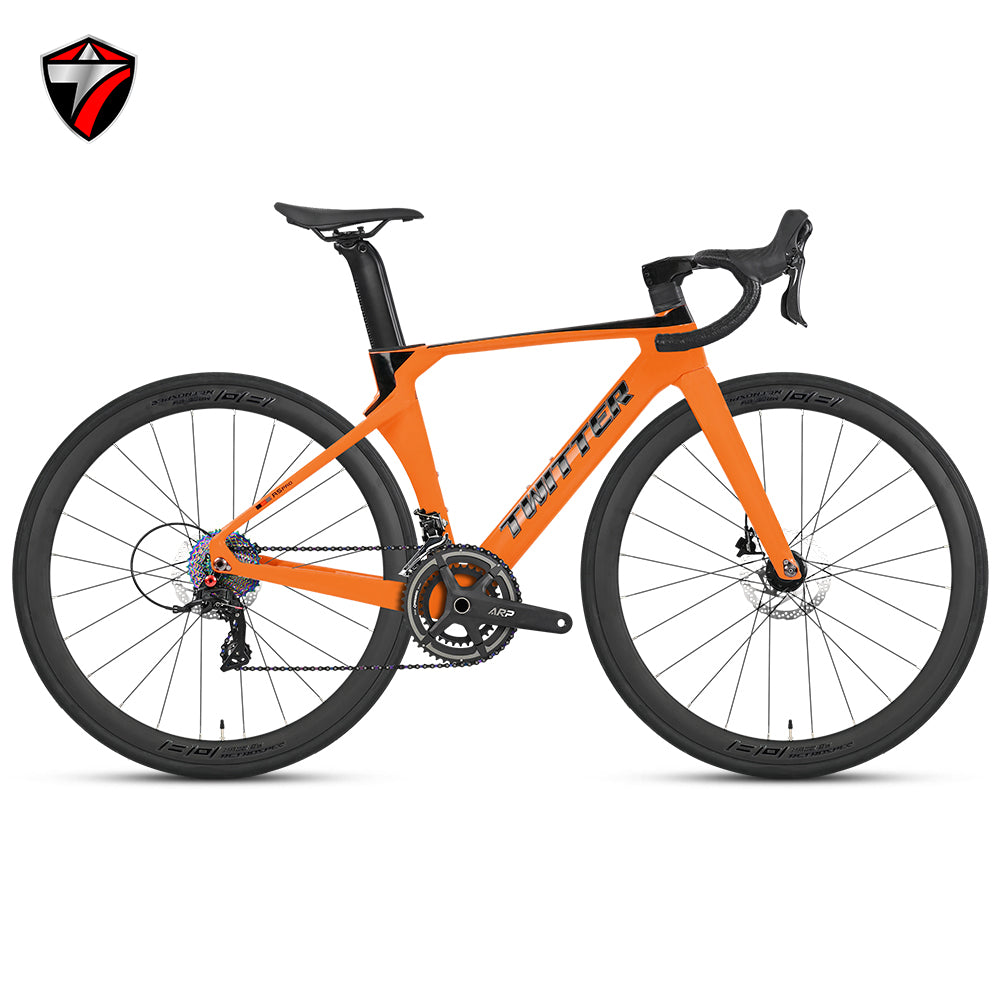

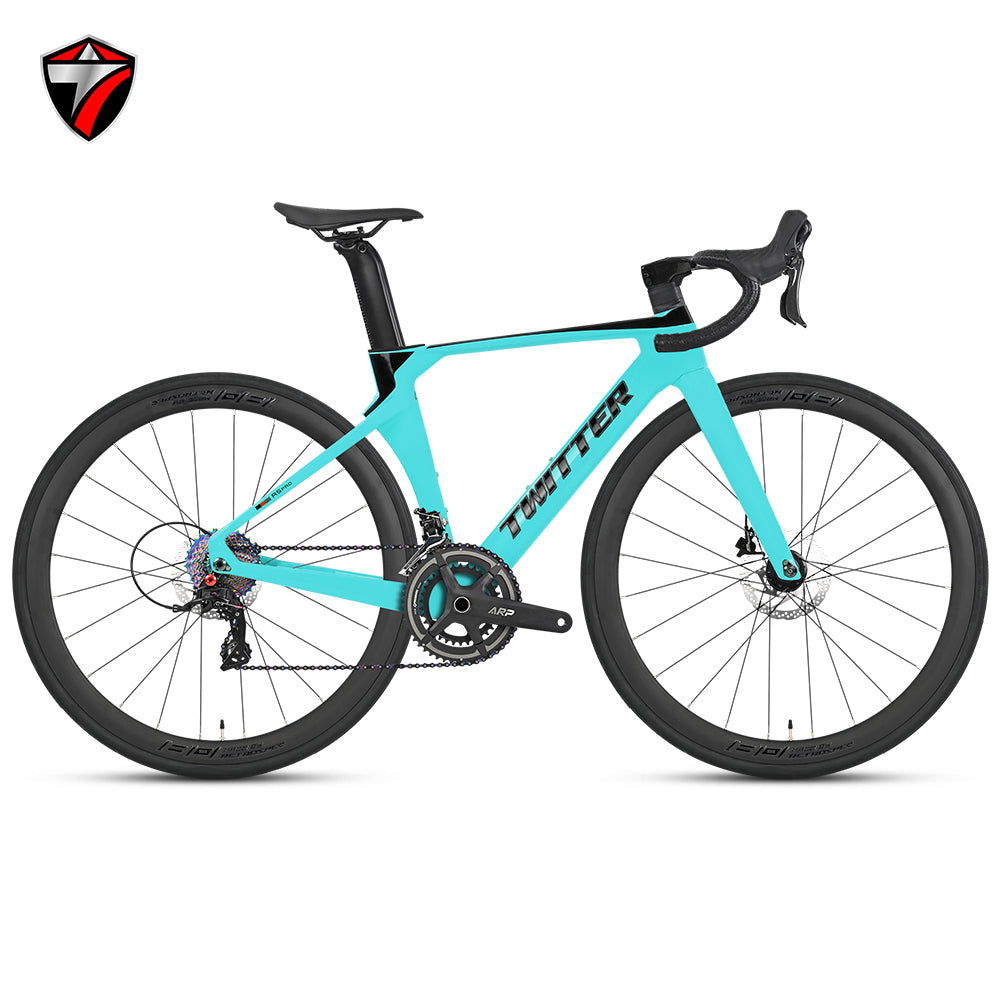

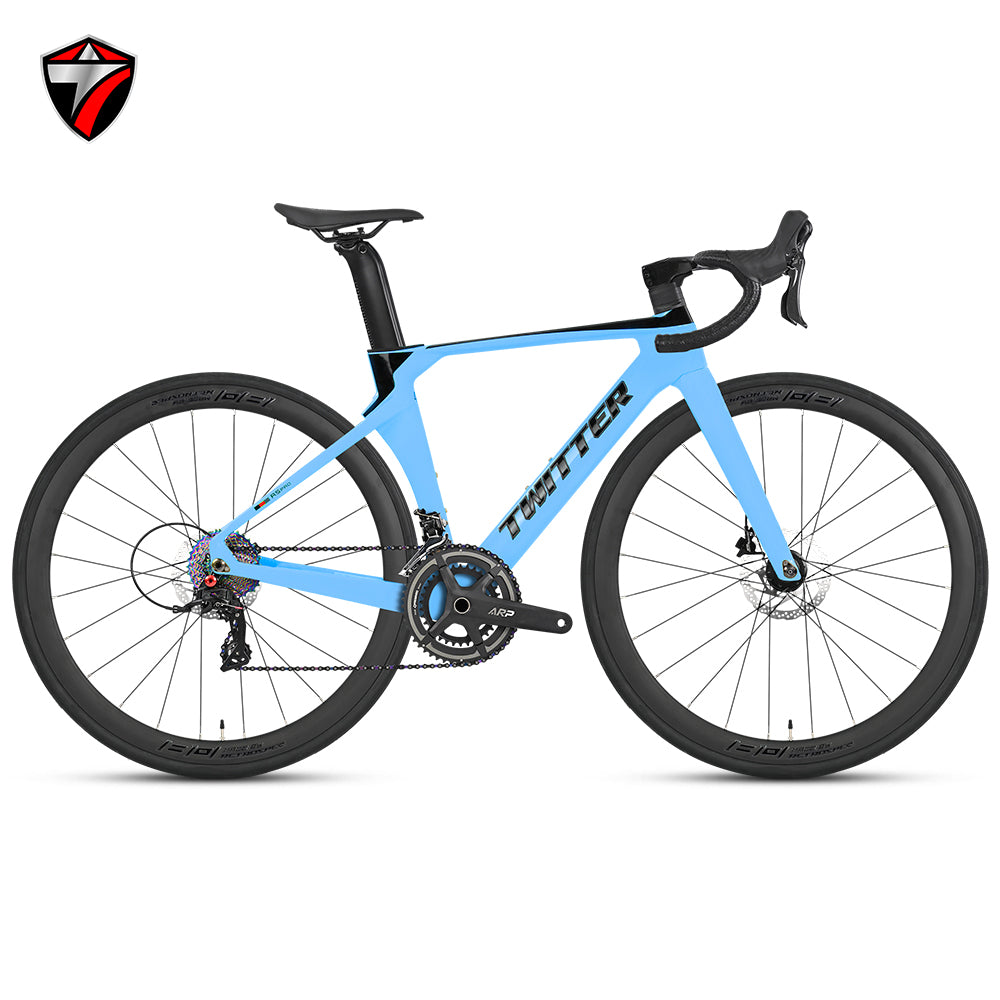

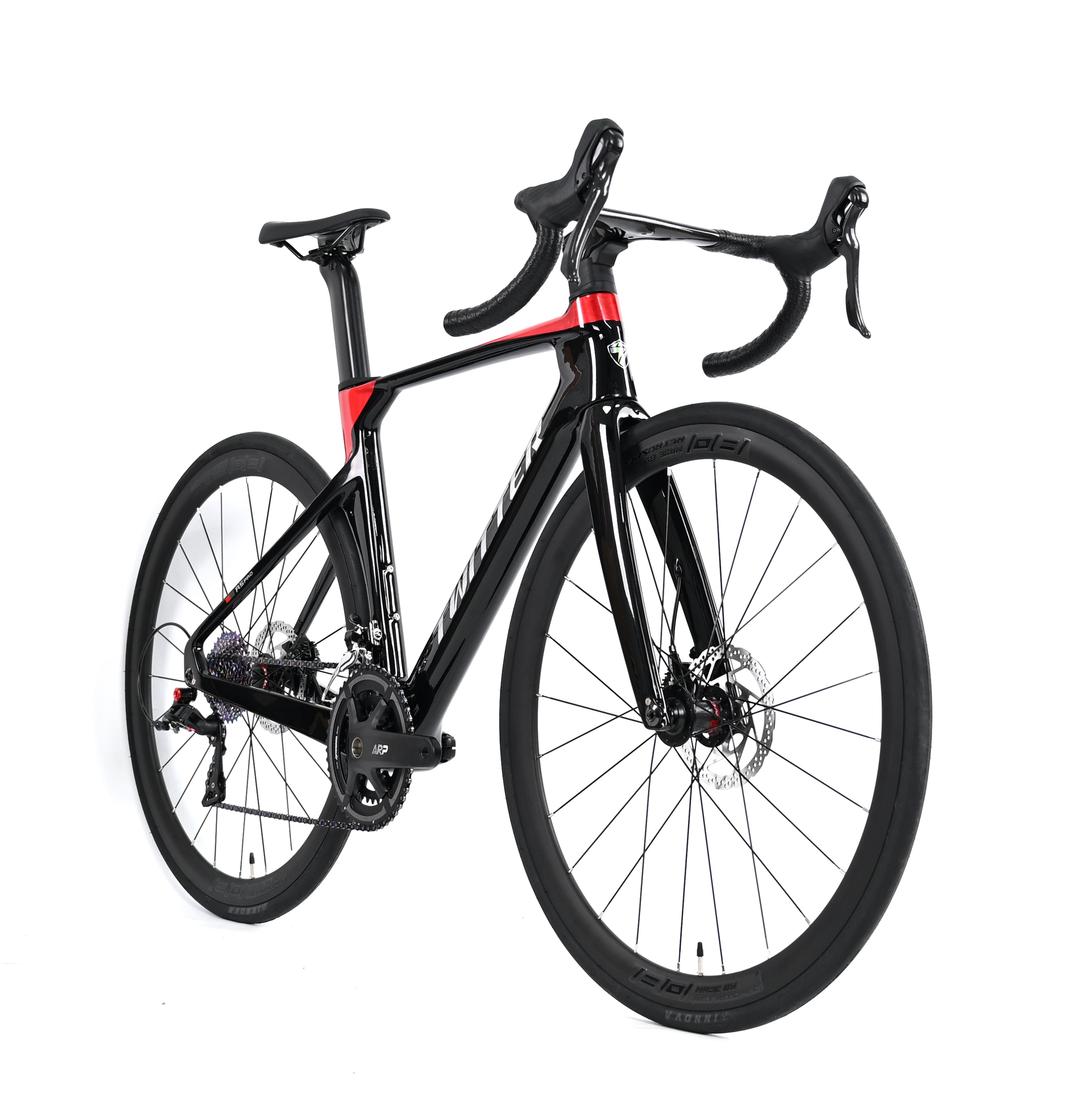

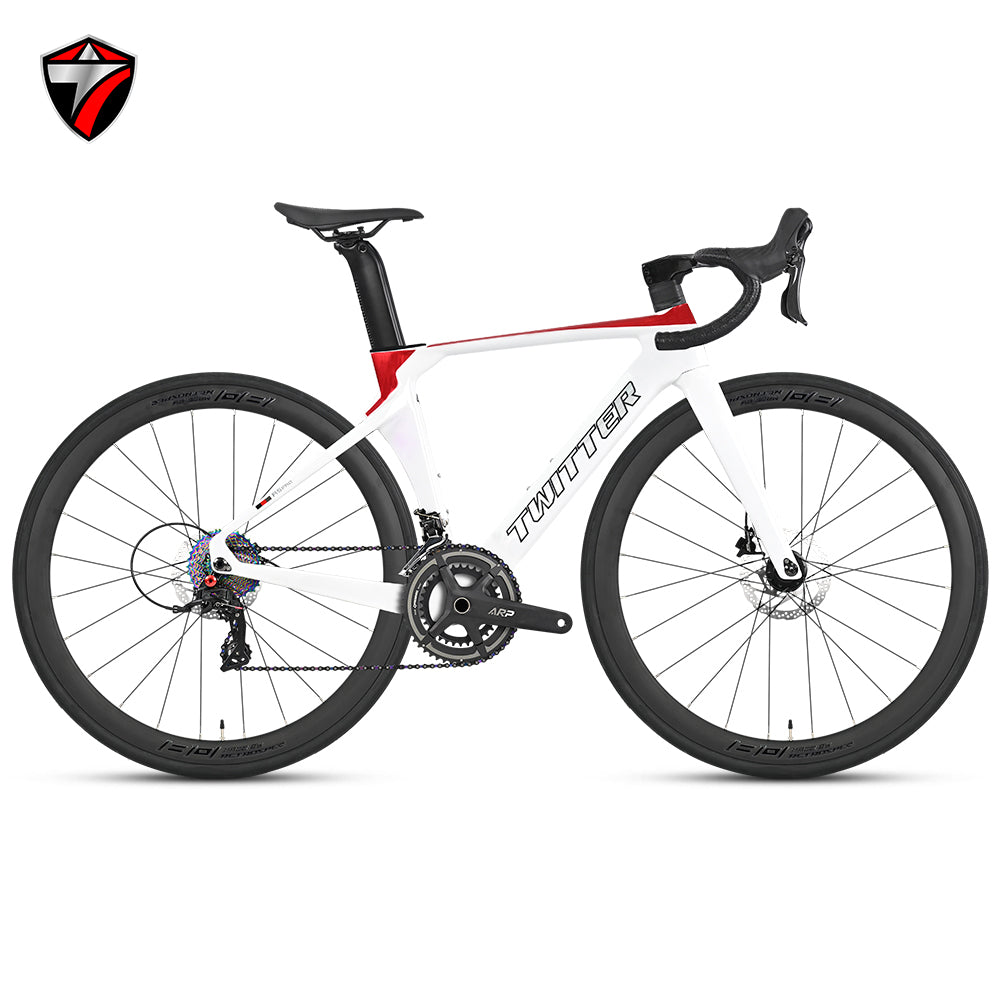

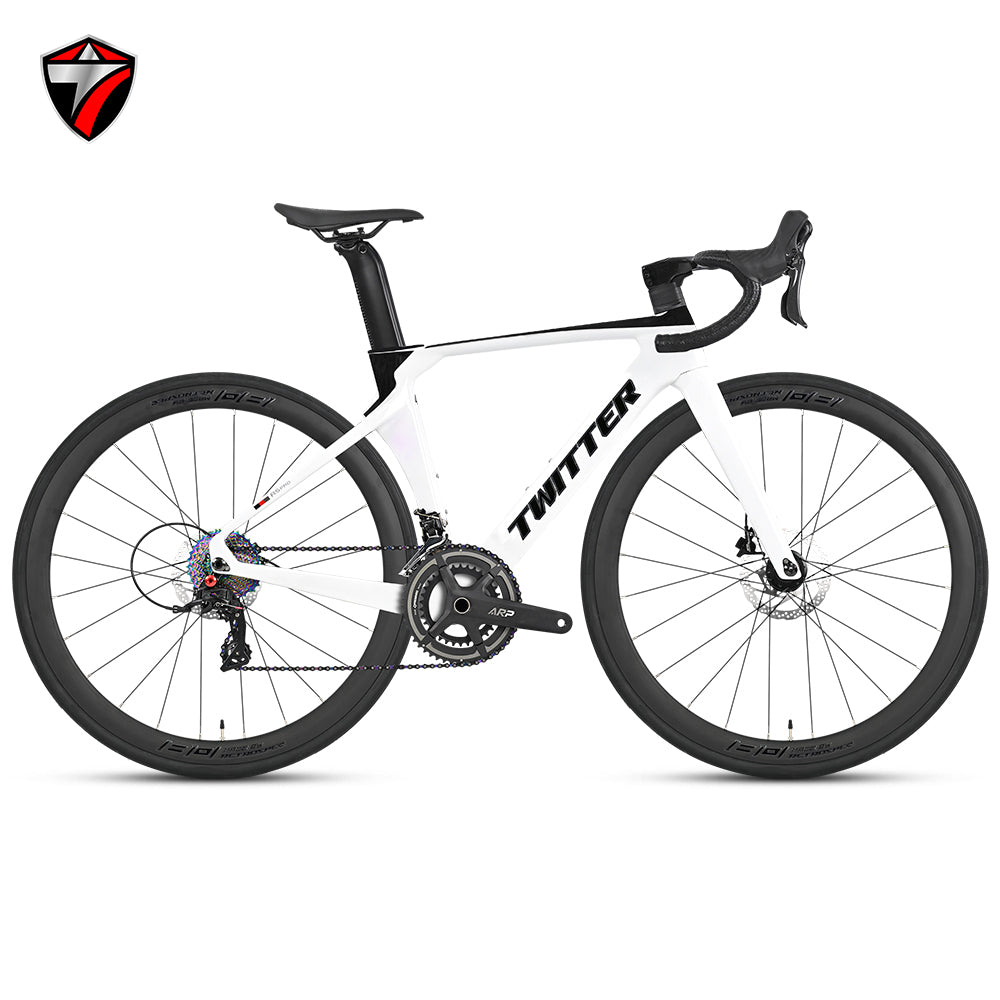

R5 Pro - Term - Carbon Road Bike
/
Specification
Specification
Key Components
-
Wheel Size: 700C
-
Frame Heights: 43.5 / 46 / 48 / 50 / 52 / 54 / 56 cm
-
Bike Colors: WhiteBlack / WhiteRed / BlackRed / MatteBlack / MatteGray / Yellow / Others / Full Holographic
-
Net Weight: 9.3 kg (both variants)
Frame & Structure
-

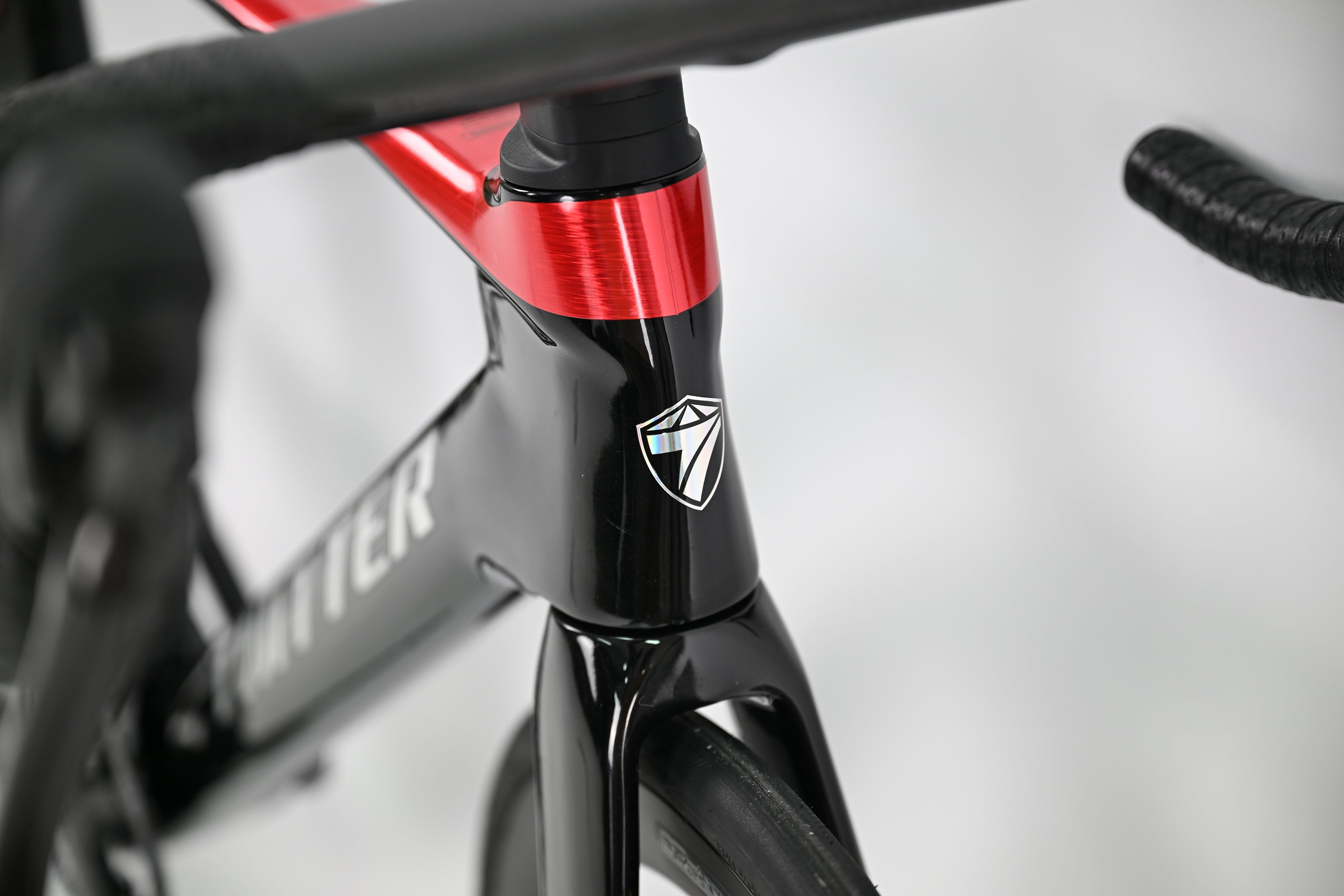

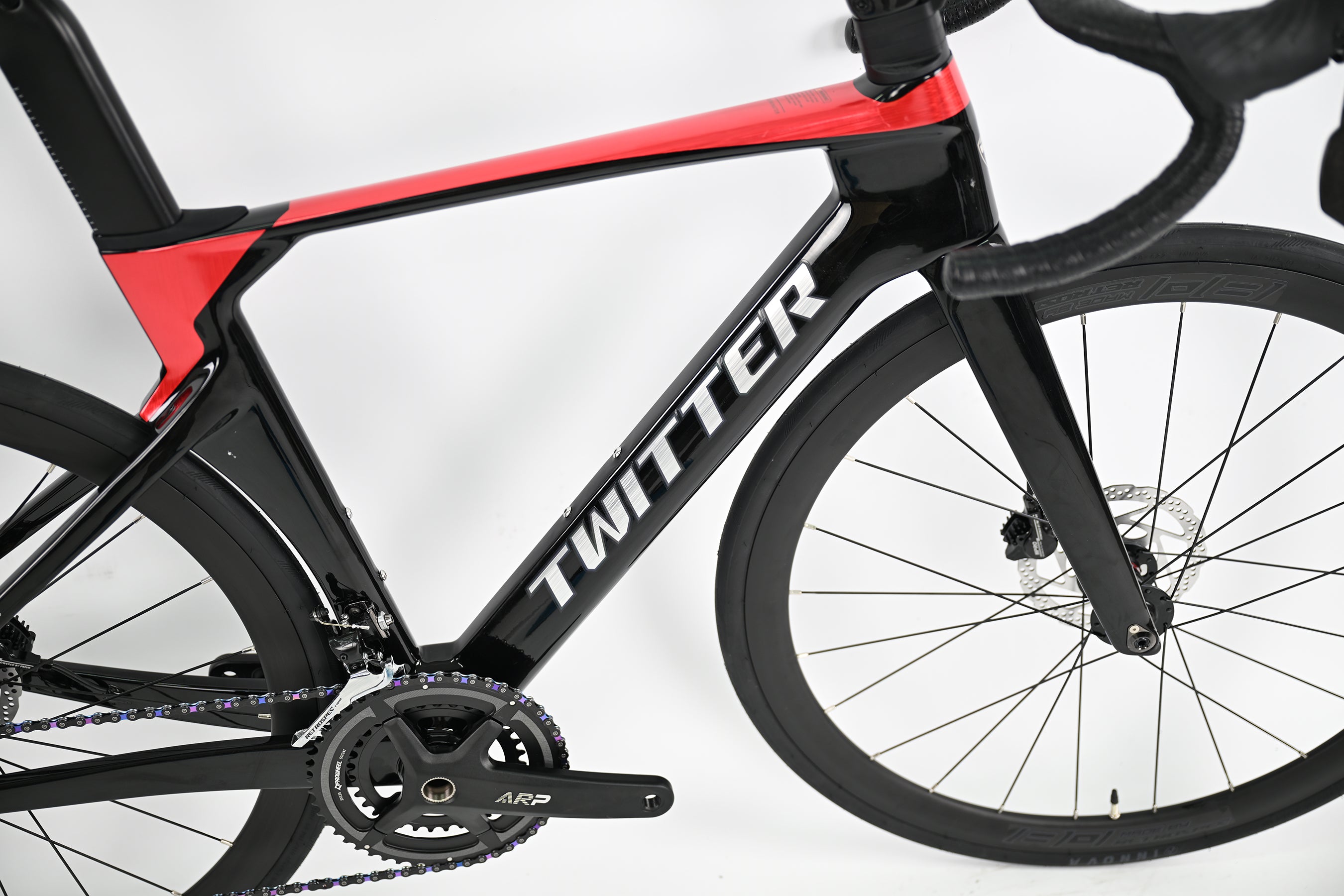

Frame: R5pro (Disc & Thru-Axle 12×142), high modulus Carbon Fiber, Aero-Racing geometry, full internal cable routing
-
Fork: R5pro (Disc & Thru-Axle 12×100), high modulus Carbon Fiber, 700C
-
Seat Post: High modulus Carbon Fiber, Aero-Racing design
-

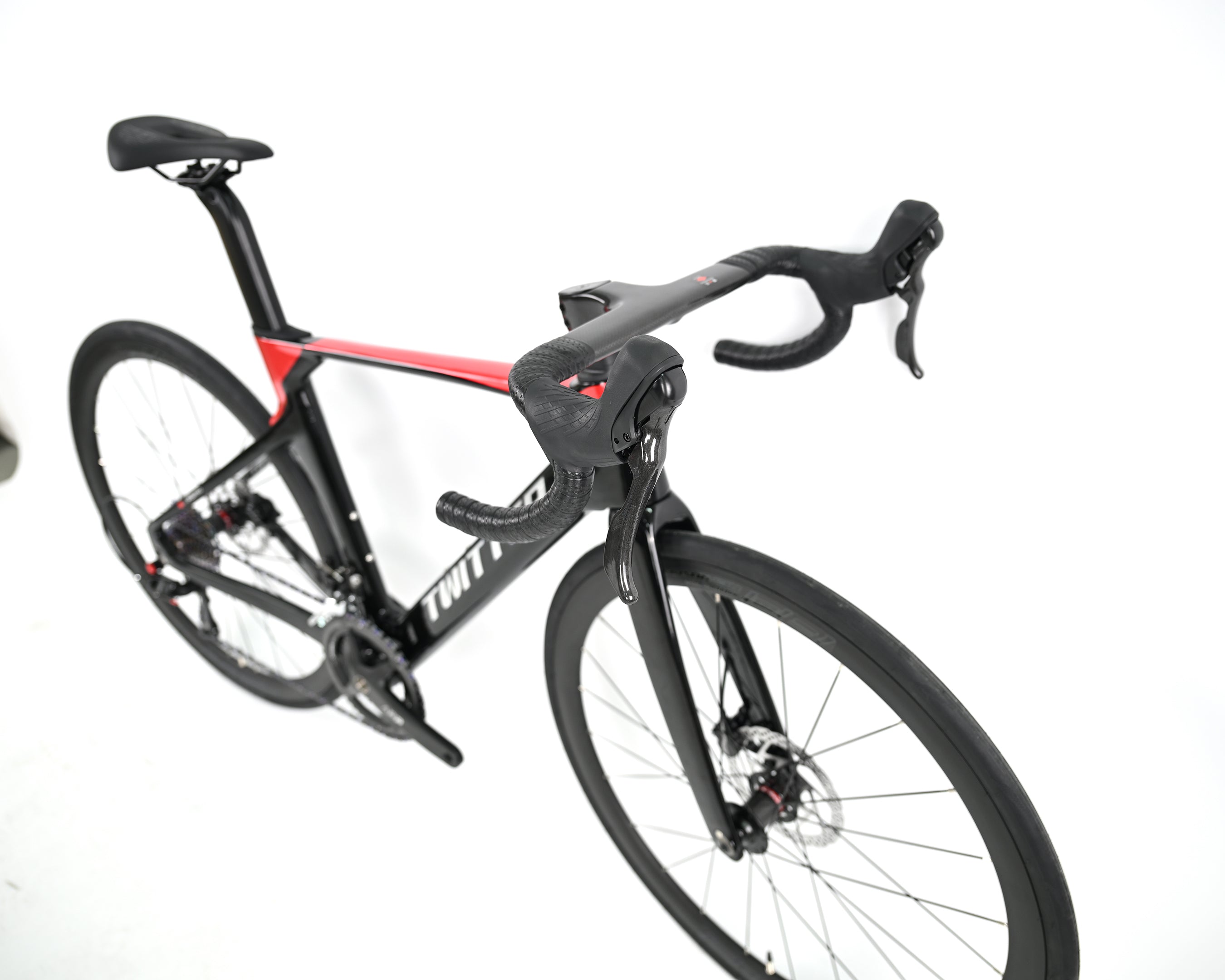

Handlebar Set: TW 3K Carbon Fiber Integrated Handlebar & Stem (420×90 mm), full internal cable routing
-
Clamps: Hidden screw fit to frame
-
Head Set: CNC aluminum alloy with sealed bearings (52×52 mm)
-
Bottom Bracket: Threaded T47×24 mm, hollow & sealed bearings
-
Washer: Special for internal cable routing

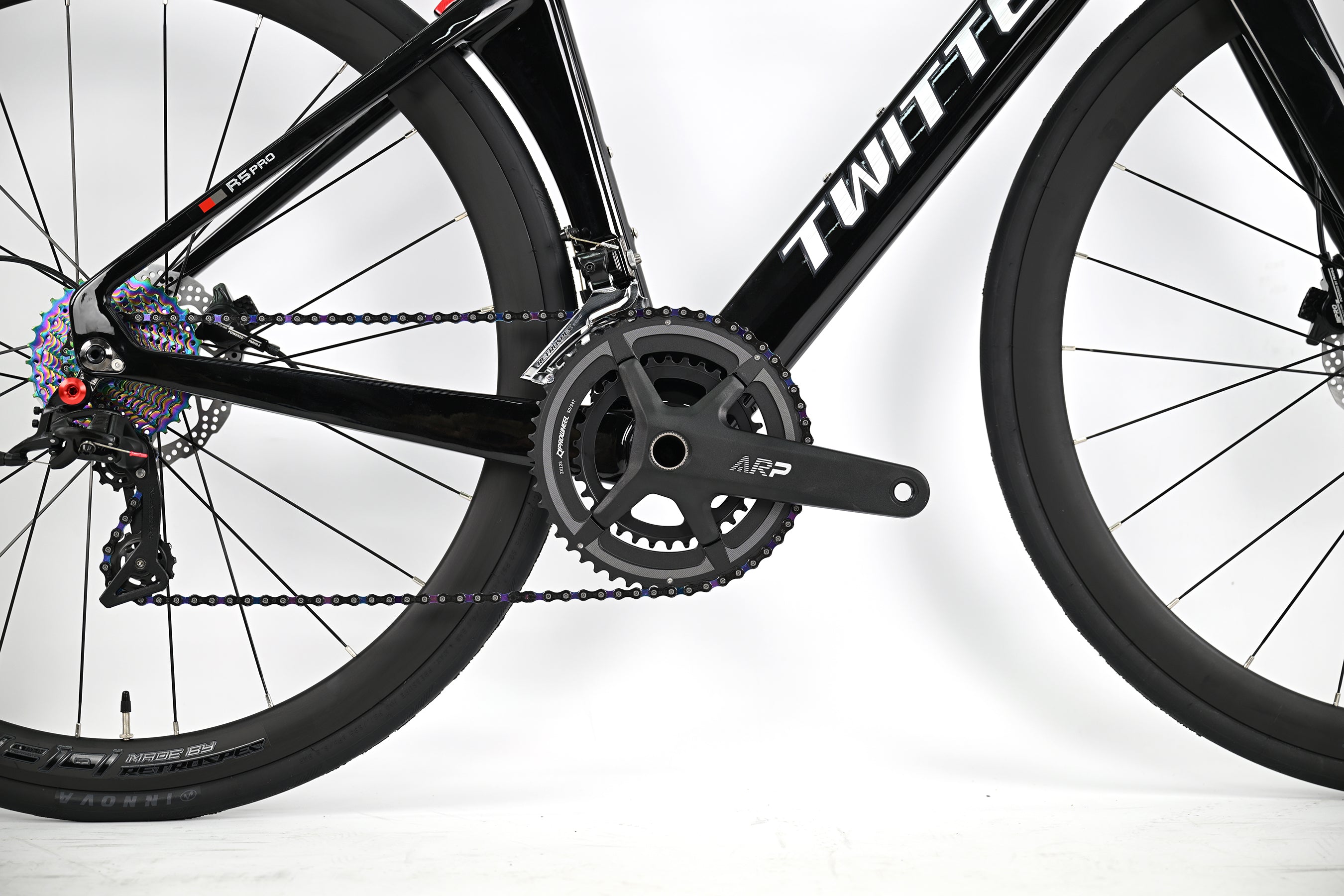

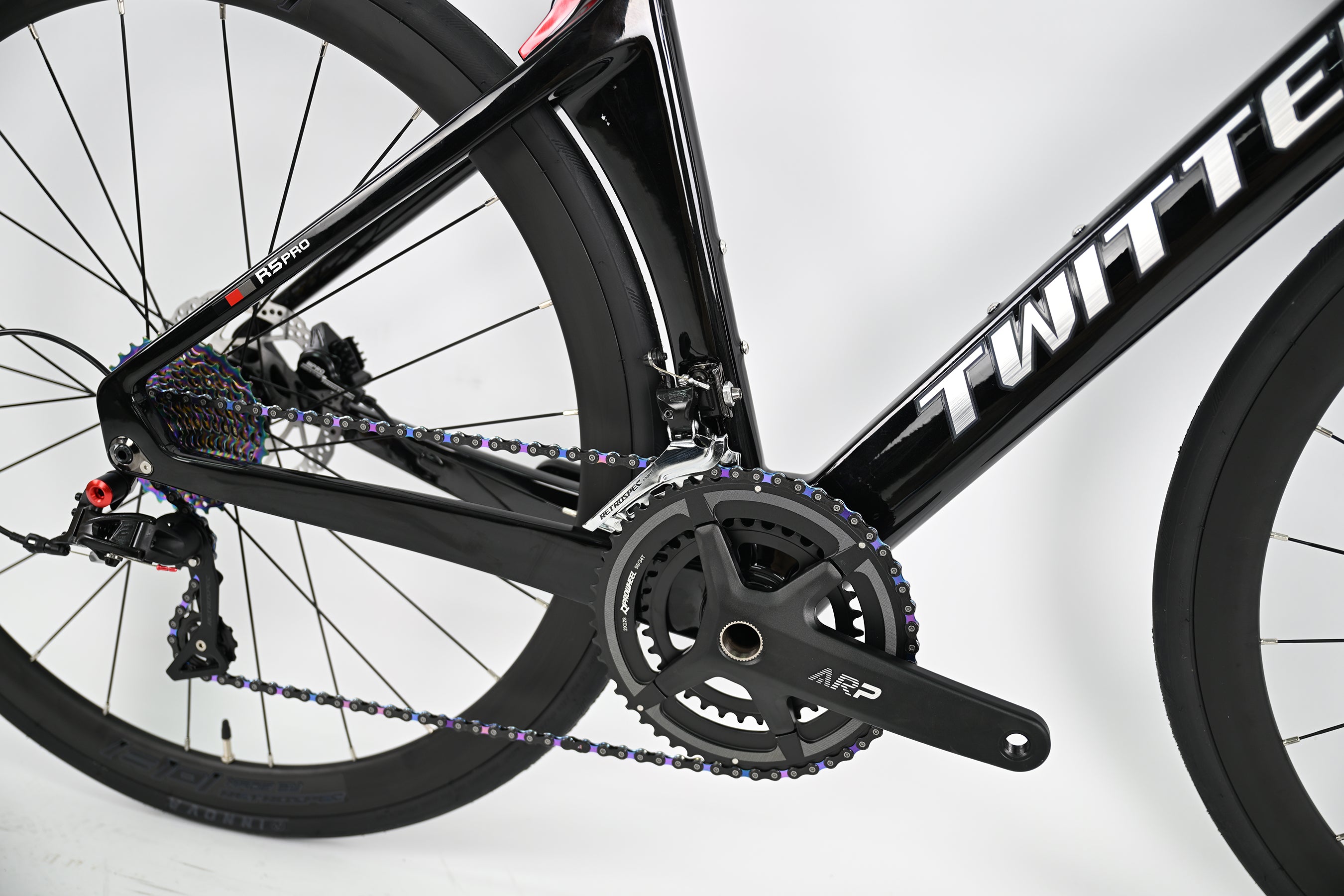

Drivetrain Options
Variant 1 – RS-24S Hydraulic Disc, Alloy Wheel
-
System: RS-24S, hydraulic disc, alloy wheel
-
Shifters: RS (SENSAH HRD6900-R) 2×12-speed hydraulic
-

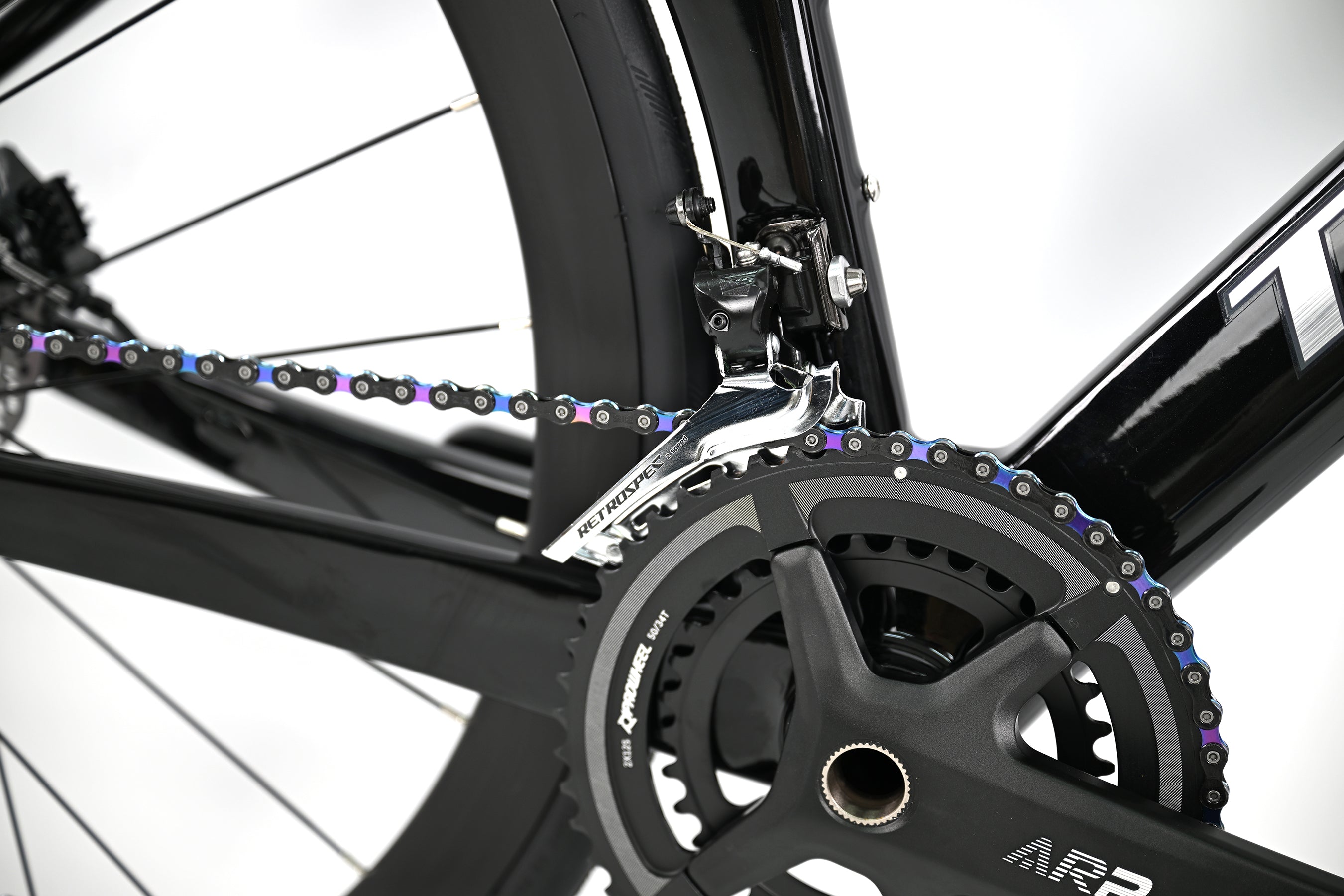

Front Derailleur: RS (SENSAH Z2) 2-speed
-

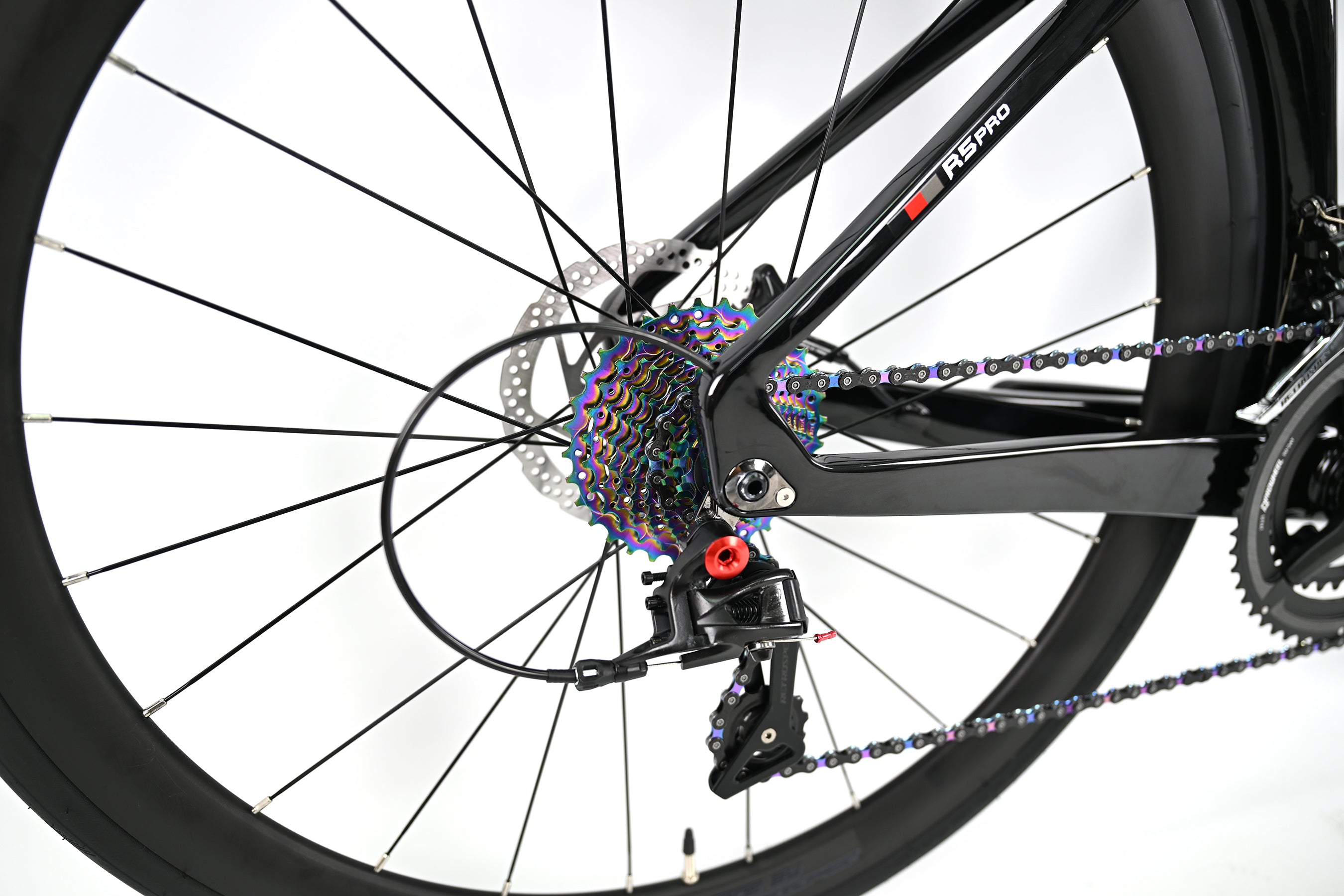

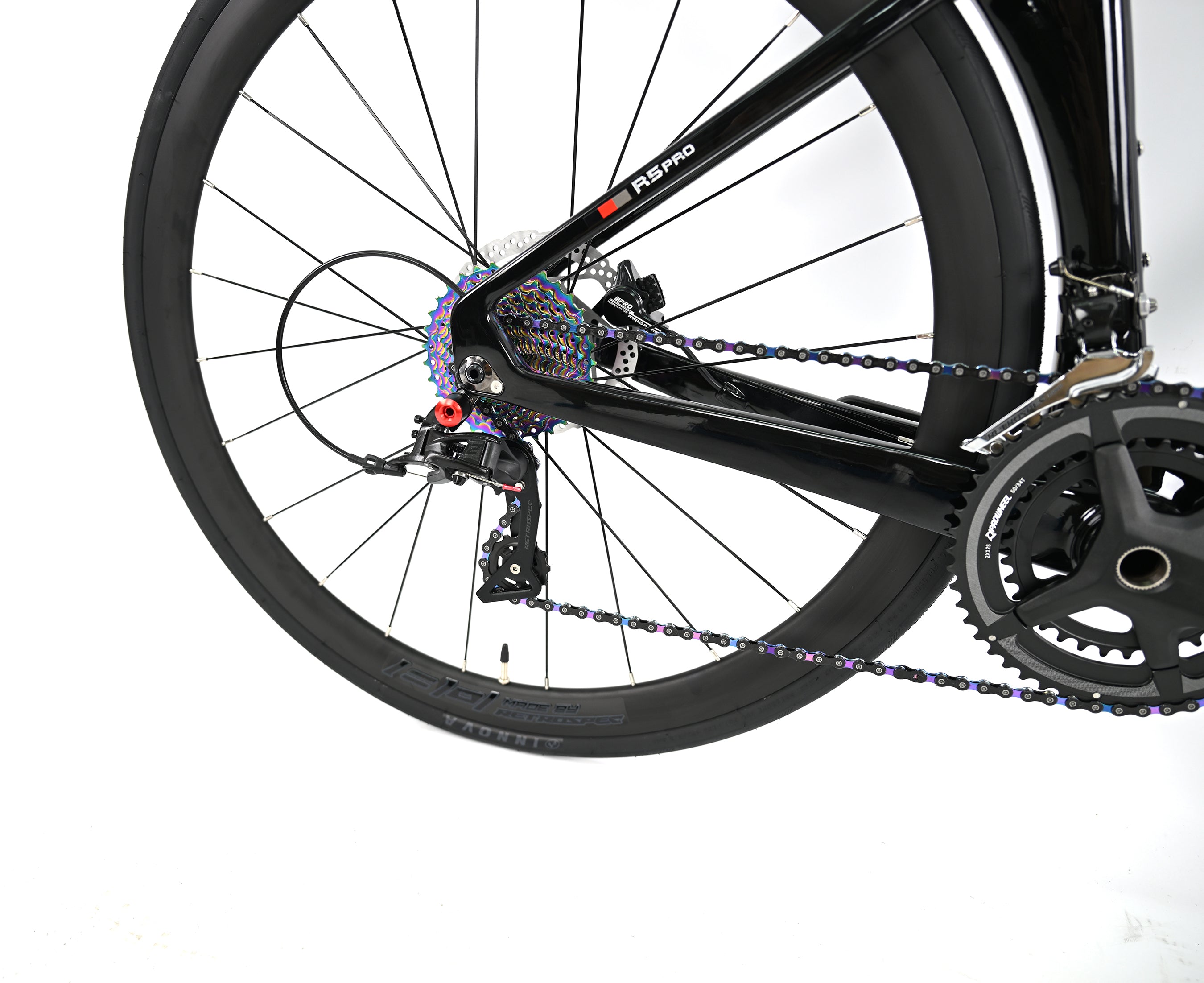

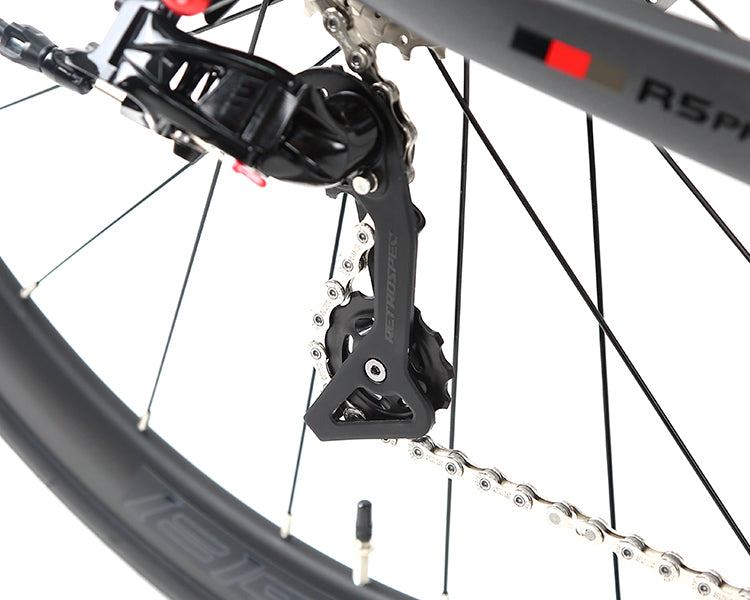

Rear Derailleur: RS (SENSAH RD8500-GS) 12-speed
-

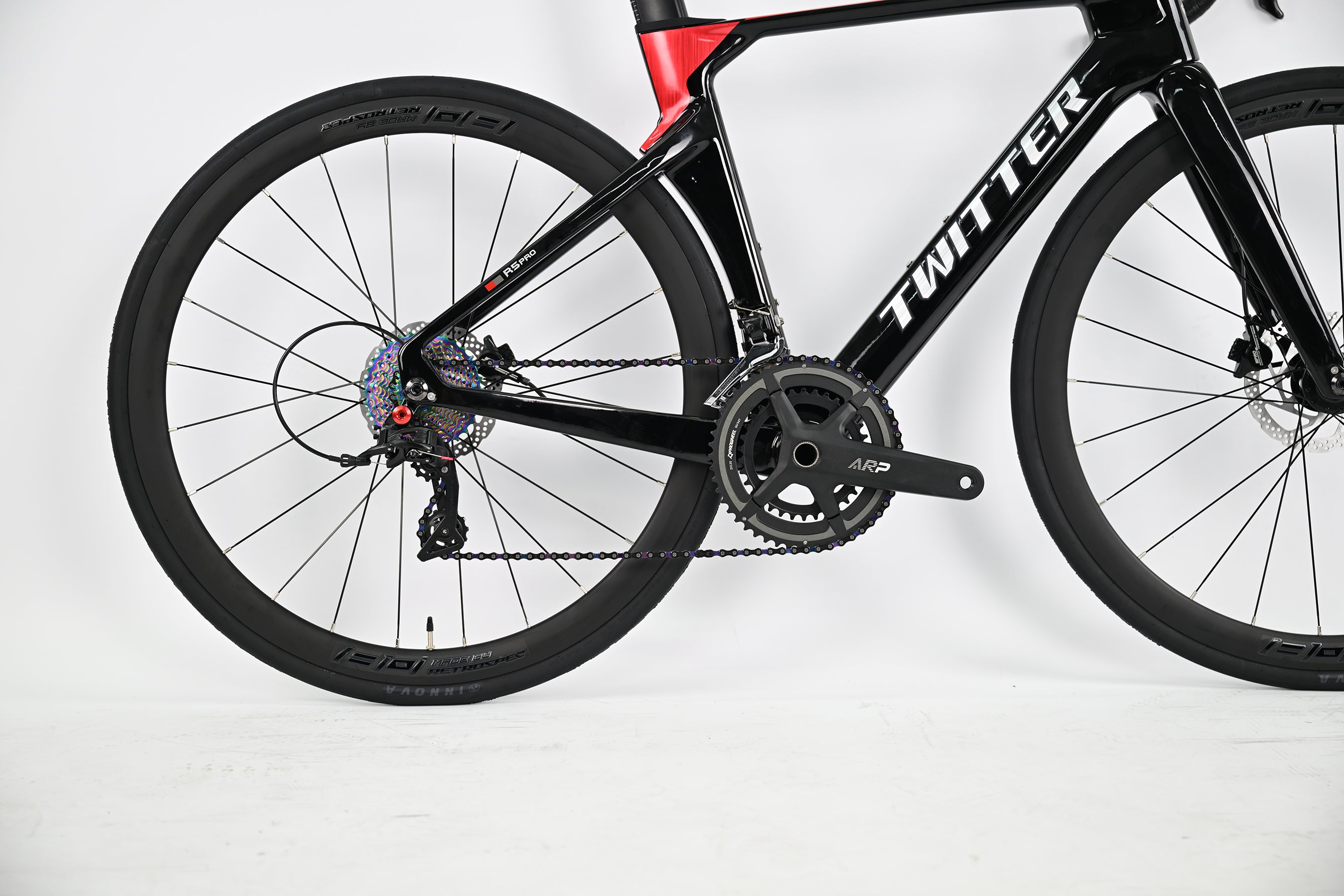

Crankset: Prowheel ARP aluminum alloy hollow 34/50T
-
Cassette: SUNSHINE 12-speed, 11–32T
-
Chain: SUMC 12-speed
-

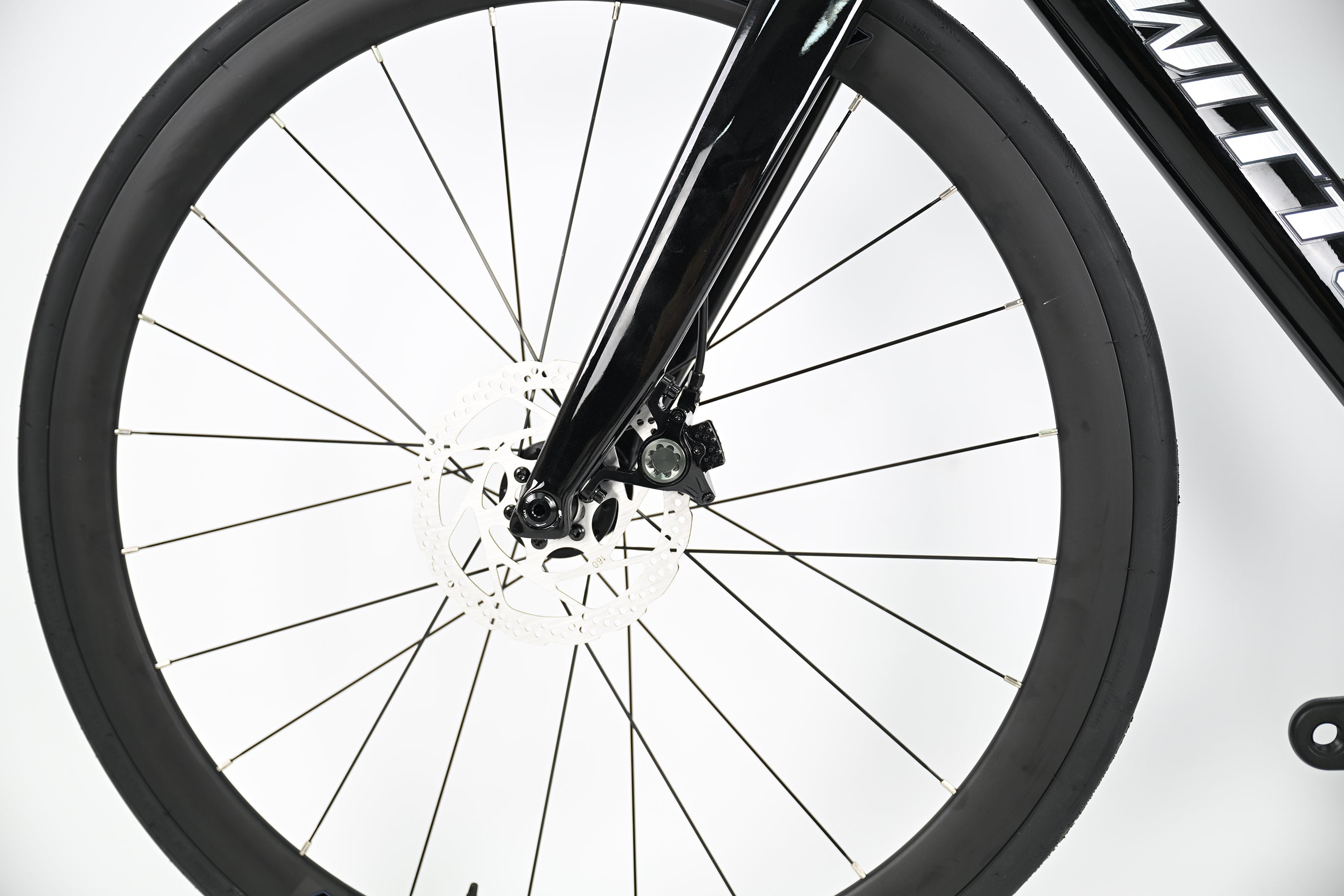

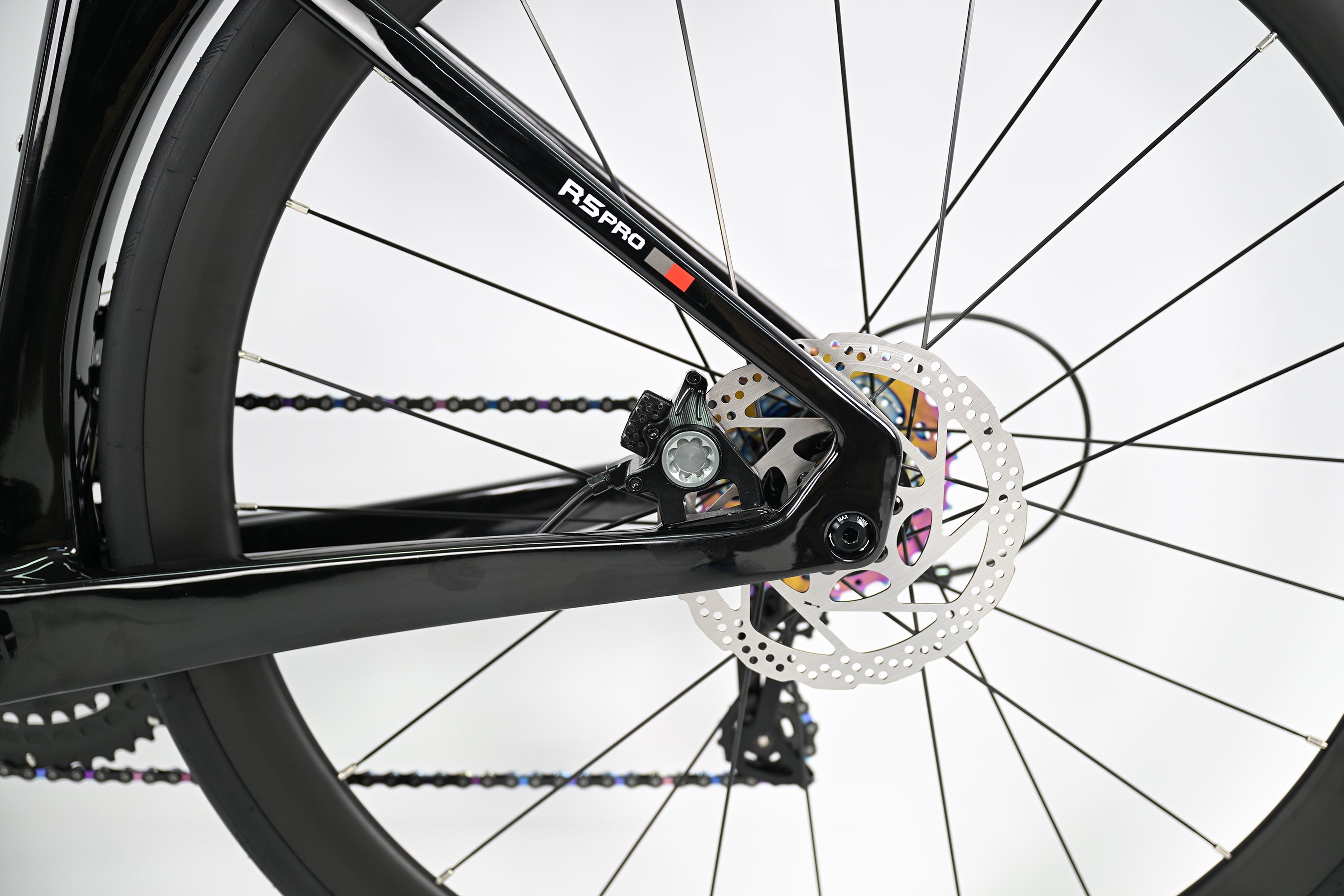

Brakes: RS (SENSAH HRD-G100) hydraulic disc, 160/160 mm rotors
Variant 2 – WheelTop TX 24S Wireless Hydraulic, Alloy Wheel
-
System: WheelTop TX 24S, wireless & hydraulic, alloy wheel
-
Shifters: WheelTop EDS TX 2×12-speed (wireless & hydraulic)
-
Front Derailleur: WheelTop EDS TX 2-speed (wireless)
-
Rear Derailleur: WheelTop EDS TX 12-speed (wireless)
-
Crankset: Prowheel ARP aluminum alloy hollow 34/50T
-
Cassette: SUNSHINE 12-speed, 11–32T
-
Chain: SUMC 12-speed
-
Brakes: WheelTop hydraulic disc, 160/160 mm rotors
Wheelset & Tires
-

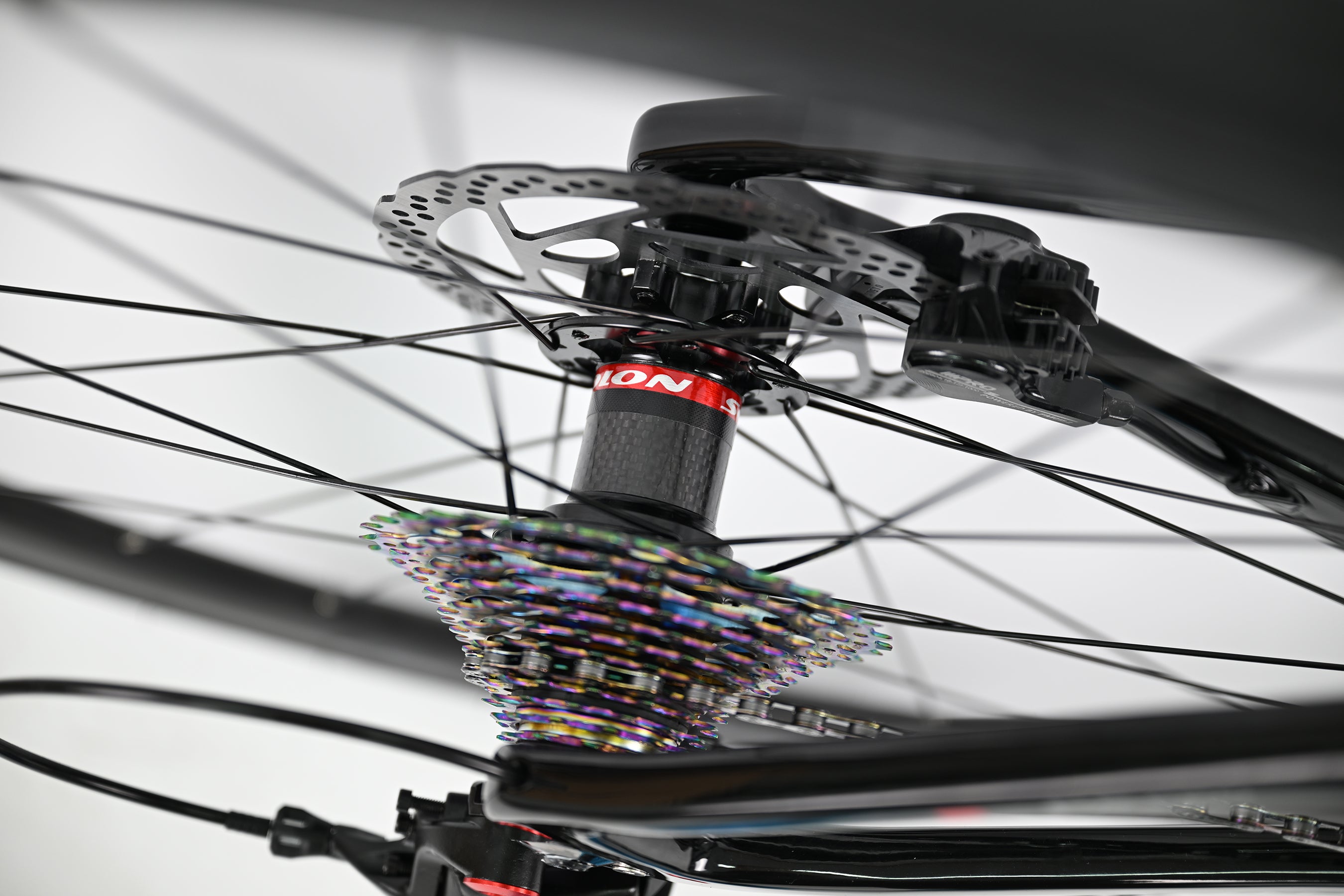

Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, slotted, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142
-
Rims: RS aluminum alloy AL7005, double wall, W21×H38 mm, 700C
-
Spokes: SHUNJIU circular 14G
-
Tires: INNOVA 700×28C, black
Braking System
-
Variant 1: RS (SENSAH HRD-G100) hydraulic disc, 160/160 mm
-
Variant 2: WheelTop hydraulic disc, 160/160 mm
Additional Components
-

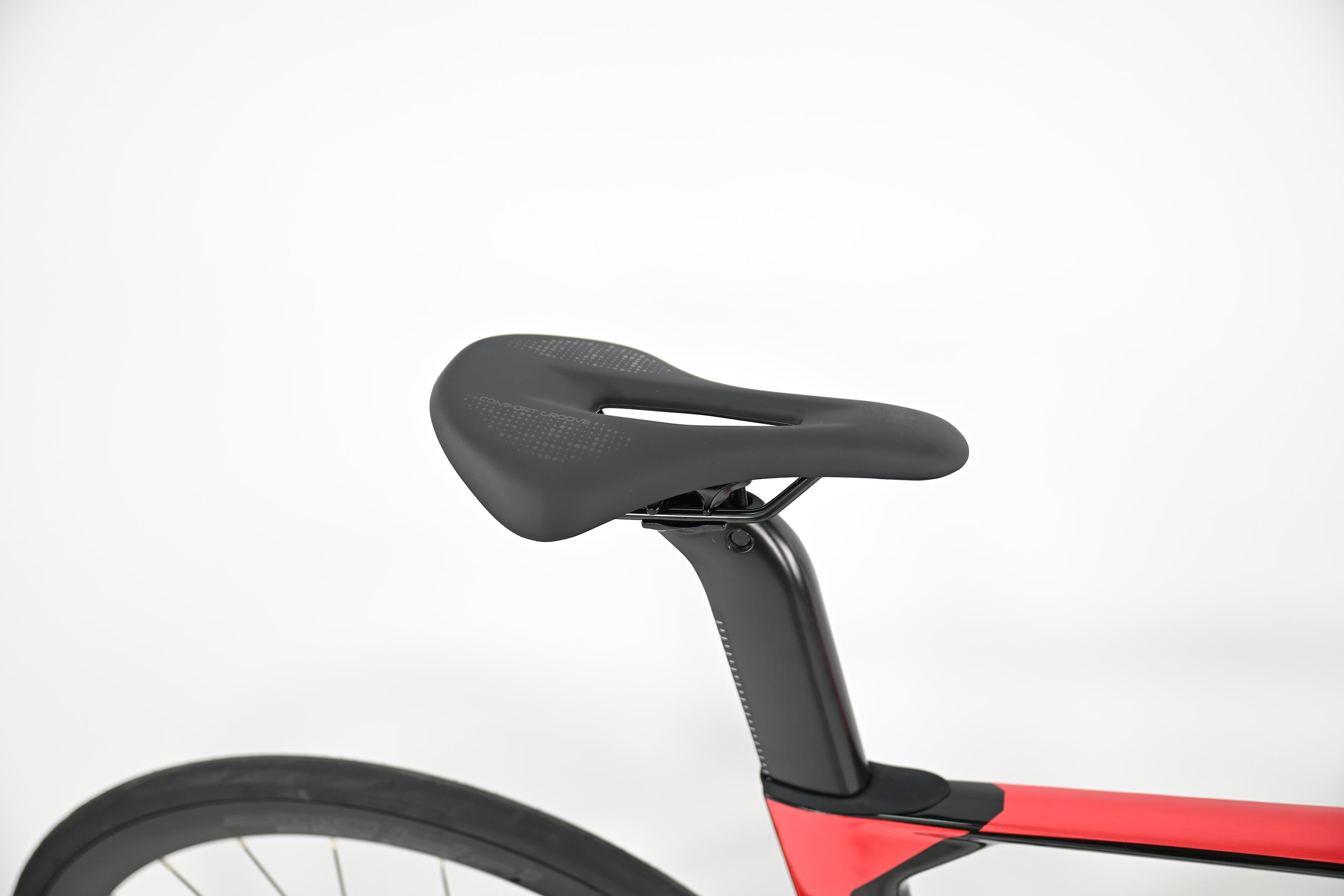

Saddle: Lightweight and comfortable racing saddle
-
Pedals: Lightweight & skid-resistant
-
Cables: JAGWIRE performance cables
Included Accessories
-
Safety reflectors (handlebar, seat post, front wheel, rear wheel)
-
PC bottle cage + tools
-
Manual + warranty card
