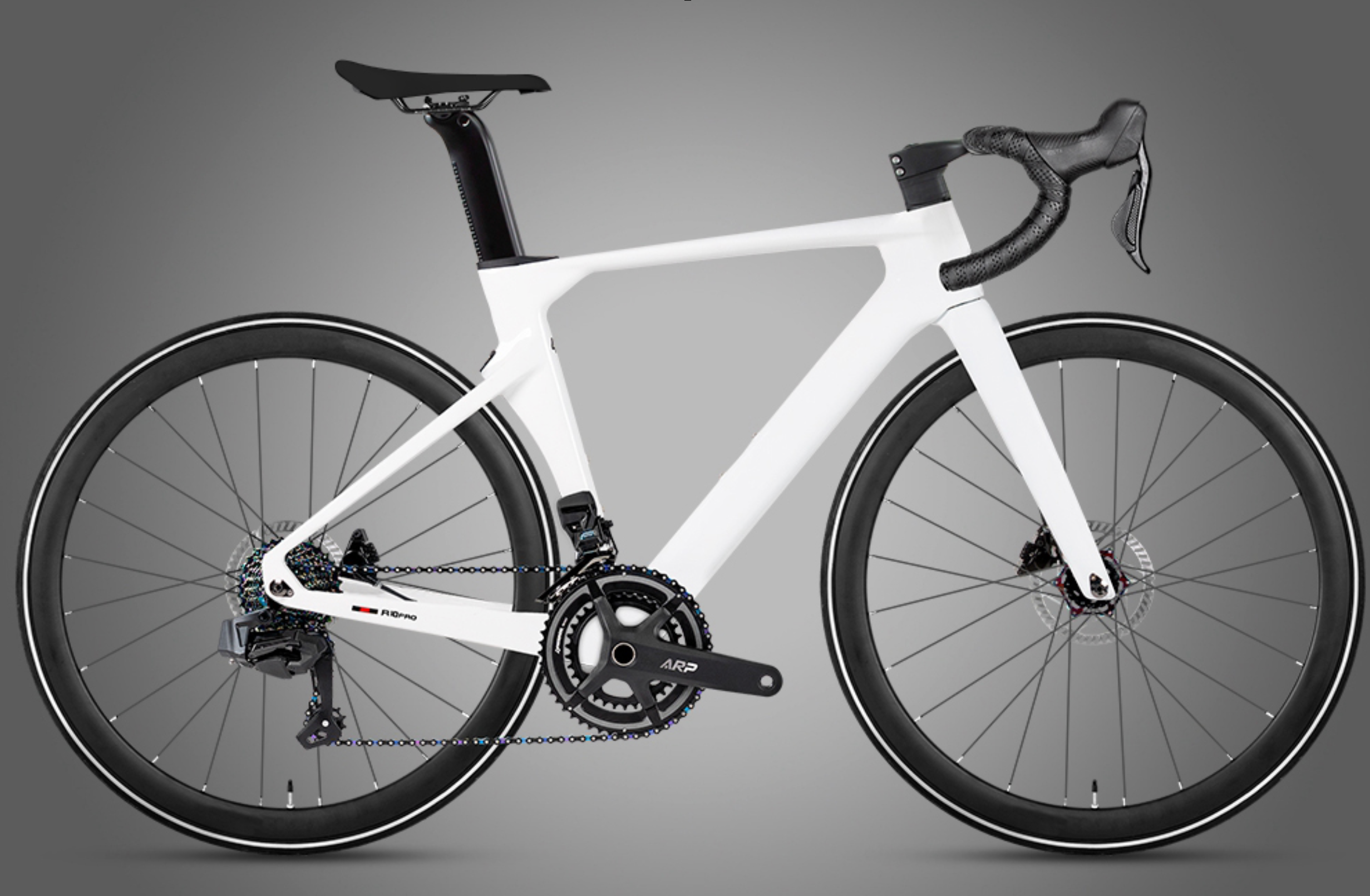

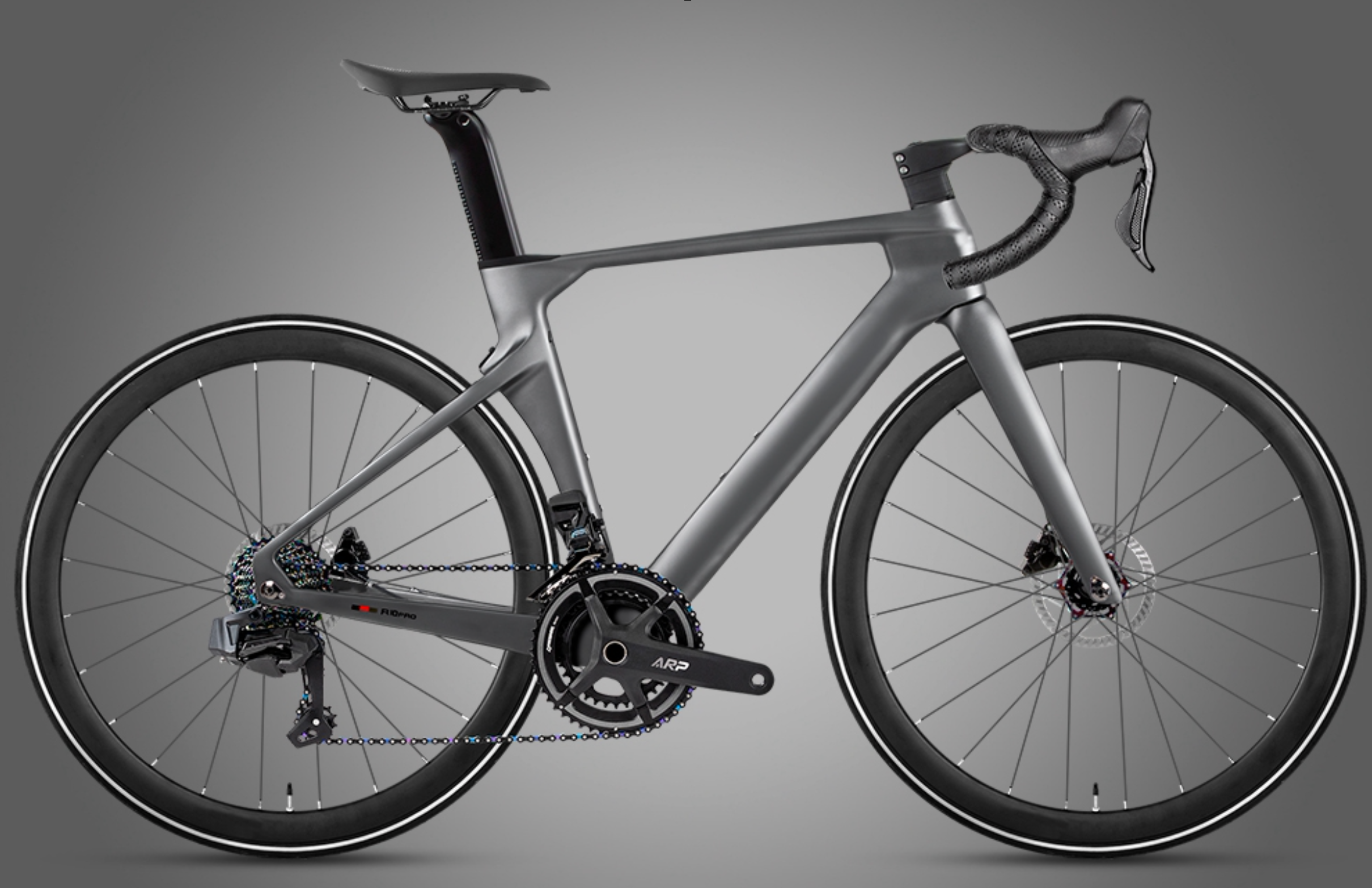

R10 Pro - Disc (Sport) Twitter Carbon Road Bike
/
Specification
Specification
Key Components
-
Wheel Size: 700C
-
Frame Heights: 43.5 / 46 / 48 / 50 / 52 / 54 / 56 cm
-
Bike Colors: White / Matte Black / Matte Dark Gray / Others / Full Holographic
-
Net Weight: 9.3 kg (Alloy Wheel Version) / 9.2 kg (Carbon Wheel Version)
Frame & Structure
-
Frame: R10 (Disc & Thru-Axle 12×142), high modulus Carbon Fiber, Aero-Racing design, full internal cable routing
-
Fork: R10pro (Disc & Thru-Axle 12×100), high modulus Carbon Fiber, 700C
-
Seat Post: High modulus Carbon Fiber, Aero-Racing profile
-
Handlebar Set: Lightweight Aluminum Alloy Integrated Handlebar & Stem (400×90 mm), full internal cable routing
-
Clamps: Hidden screw fit to frame
-
Head Set: CNC aluminum alloy with sealed bearings (52×52 mm)
-
Bottom Bracket: Threaded T47×24 mm, hollow & sealed bearings
-
Washer: Special for internal cable routing
Drivetrain Options
Variant 1 – RS-22S Hydraulic Disc, Alloy Wheel
-
System: RS-22S, hydraulic disc, alloy wheel
-
Shifters: RS (SENSAH HRD6900-R) 2×11-speed hydraulic
-
Front Derailleur: RS (SENSAH Z2) 2-speed
-
Rear Derailleur: RS (SENSAH RD8500-GS) 11-speed
-
Crankset: Prowheel ARP aluminum alloy hollow 34/50T
-
Cassette: SUNSHINE 11-speed, 11–30T
-
Chain: SUMC 11-speed
-
Brakes: RS (SENSAH HRD-G100) hydraulic disc, 160/160 mm rotors
Variant 2 – RS-22S Hydraulic Disc, Carbon Wheel (Flat Rim 50H)
-
System: RS-22S, hydraulic disc, carbon wheel & flat rim
-
Shifters: RS (SENSAH HRD6900-R) 2×11-speed hydraulic
-
Front Derailleur: RS (SENSAH Z2) 2-speed
-
Rear Derailleur: RS (SENSAH RD8500-GS) 11-speed
-
Crankset: Prowheel ARP aluminum alloy hollow 34/50T
-
Cassette: SUNSHINE 11-speed, 11–30T
-
Chain: SUMC 11-speed
-
Brakes: RS (SENSAH HRD-G100) hydraulic disc, 160/160 mm rotors
Wheelset & Tires
Variant 1 – Alloy Wheelset
-
Hubs: RS aluminum alloy, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142
-
Rims: RS AL7005 aluminum alloy, double wall, W21×H38 mm
-
Spokes: SHUNJIU circular 14G
-
Tires: RS foldable 700×28C with reflective edges
Variant 2 – Carbon Wheelset (Flat Rim 50H)
-
Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142
-
Rims: RS high modulus Carbon Fiber flat rim, W28×H50 mm
-
Spokes: SHUNJIU circular 14G
-
Tires: RS foldable 700×28C with reflective edges
Braking System
-
Brakes: RS (SENSAH HRD-G100) hydraulic disc, 160 mm front / 160 mm rear rotors
Additional Components
-
Saddle: Lightweight and comfortable racing saddle
-
Pedals: Lightweight & skid-resistant
-
Cables: JAGWIRE performance cables
Included Accessories
-
Standard safety reflectors (handlebar, seat post, front wheel, rear wheel)
-
PC bottle cage + tools
-
Manual + warranty card
Description
Description
Geometry Image
Geometry Image
R10 Pro - Disc (Sport) Features
Why choose this bike
Carbon Aero Frame
R10 carbon fiber frame with 12×142 mm thru-axle and full internal cable routing.
R10 carbon fiber frame with 12×142 mm thru-axle and full internal cable routing.
Carbon Disc Fork
R10pro carbon fork with 12×100 mm thru-axle for stable, responsive handling.
R10pro carbon fork with 12×100 mm thru-axle for stable, responsive handling.
2×11-Speed Hydraulic
SENSAH RS 2×11-speed drivetrain with HRD hydraulic shifting for smooth, reliable performance.
SENSAH RS 2×11-speed drivetrain with HRD hydraulic shifting for smooth, reliable performance.
Hydraulic Disc Brakes
SENSAH HRD-G100 hydraulic discs with 160 mm rotors deliver consistent braking confidence.
SENSAH HRD-G100 hydraulic discs with 160 mm rotors deliver consistent braking confidence.
Alloy or Carbon Wheelset
Choose between AL7005 alloy or 50H flat carbon rims paired with 700×28C reflective tires.
Choose between AL7005 alloy or 50H flat carbon rims paired with 700×28C reflective tires.
Color Options

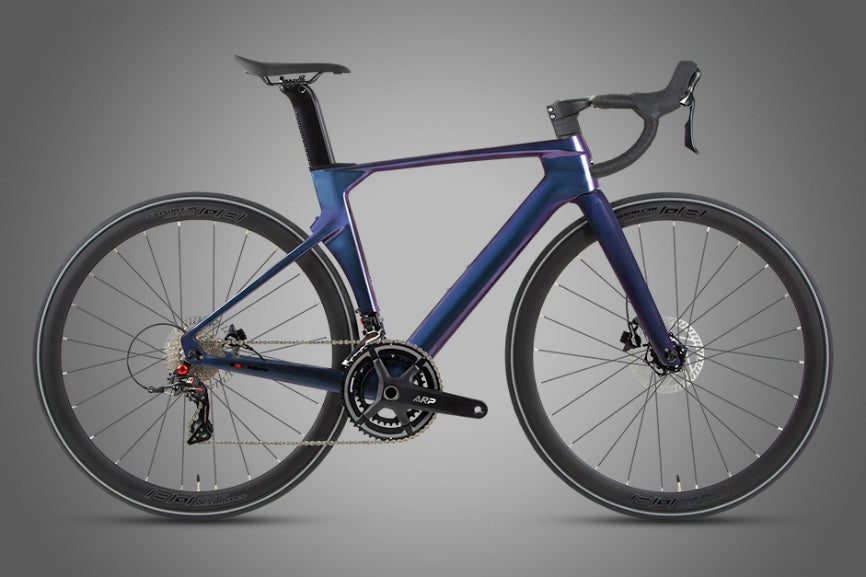

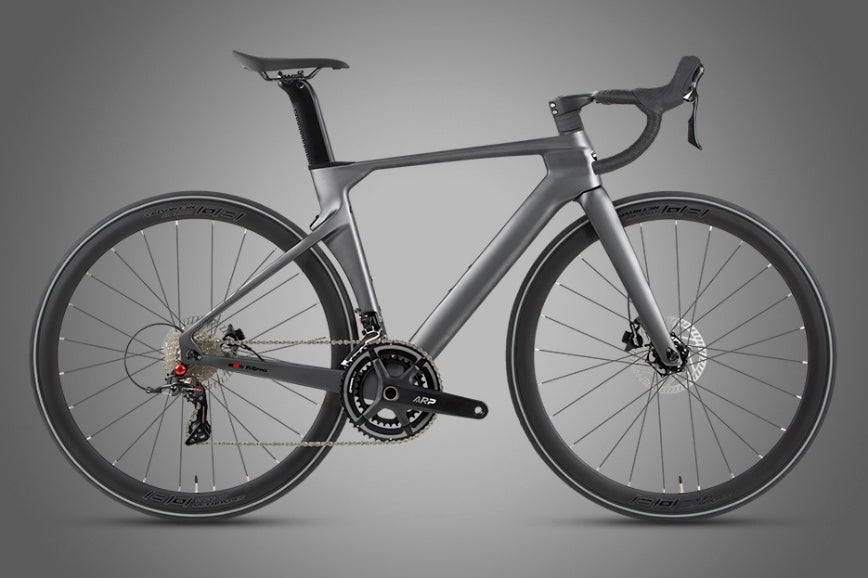

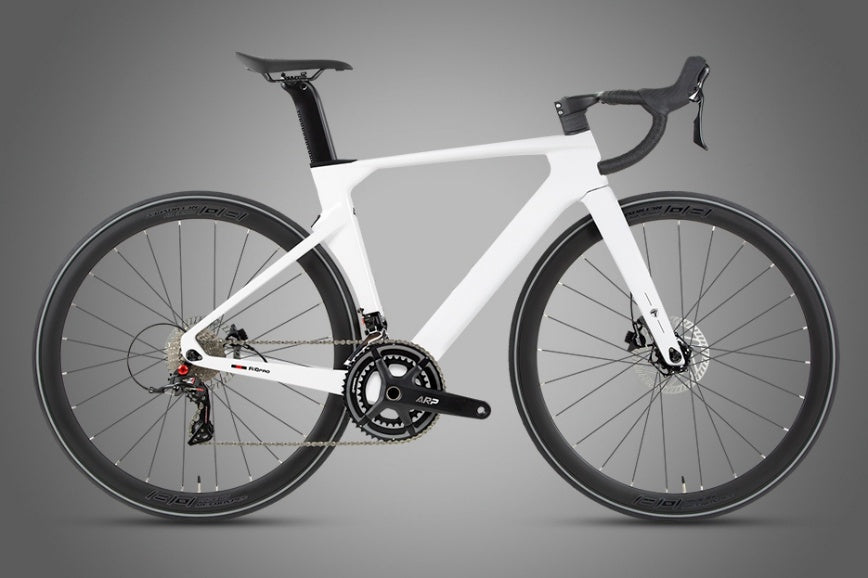

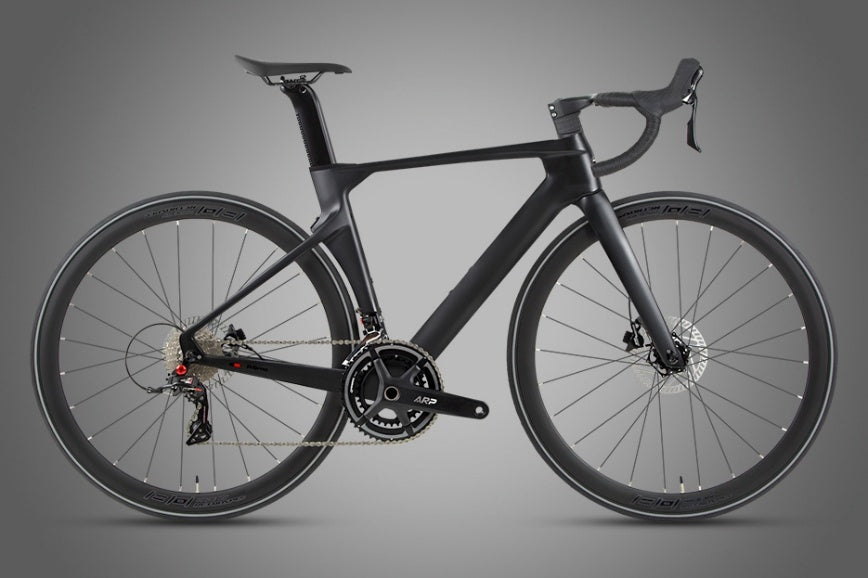

Available in White, Matte Black, Matte Dark Gray, Others, and Full Holographic finishes.
Available in White, Matte Black, Matte Dark Gray, Others, and Full Holographic finishes.
