EM6 - 3RD - Cyctrac Electric Mountain Bike

$2,564.00

Color: Silver

Bicycle features: Normal

Normal Remap

Configurations: Shimano deore m6100 - 12 speed / m430/500w low

SHIMANO DEORE M6100 - 12 Speed / M430/500W LOW SHIMANO DEORE M6100 - 12 Speed / M430/500W HIGH Wheeltop EDS OX-12 Speed (Wireless)/ M430/500W High

Product variants

Quantity

Secured checkout

Specification

Key Components

Specification	Detail
Bike Model	EM6 (3rd)
Frame Size	29(27.5)×16" / 18"

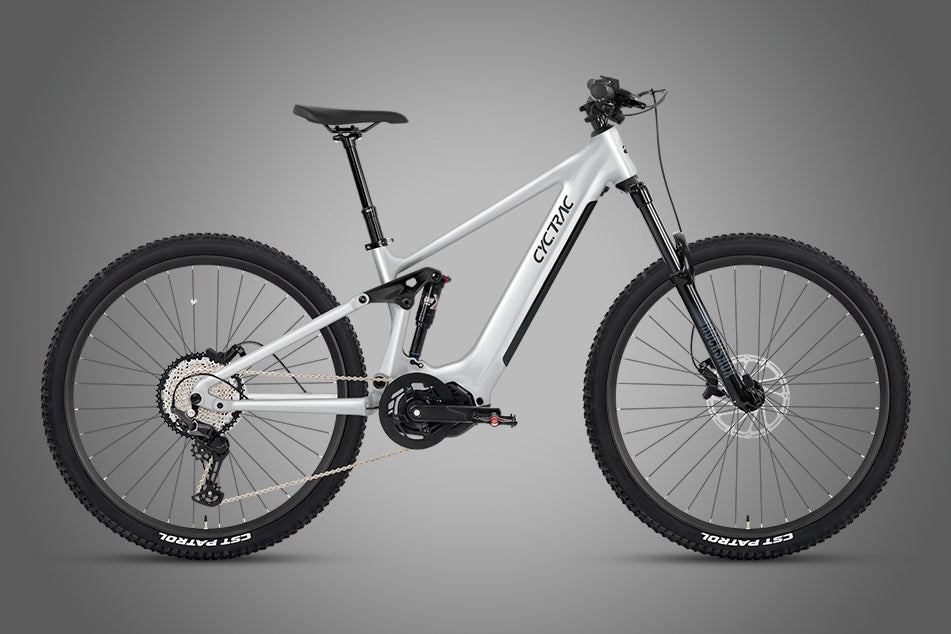

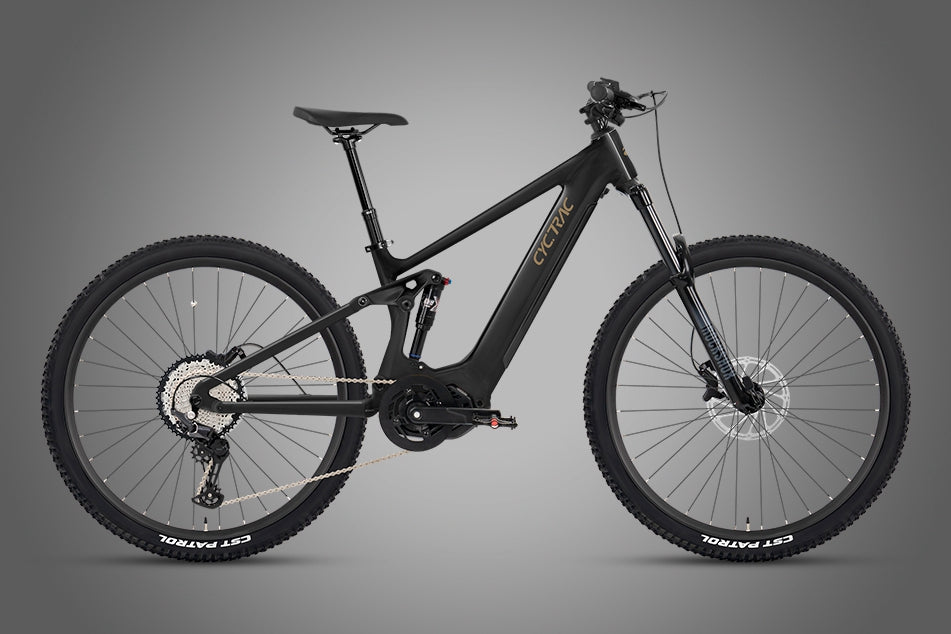

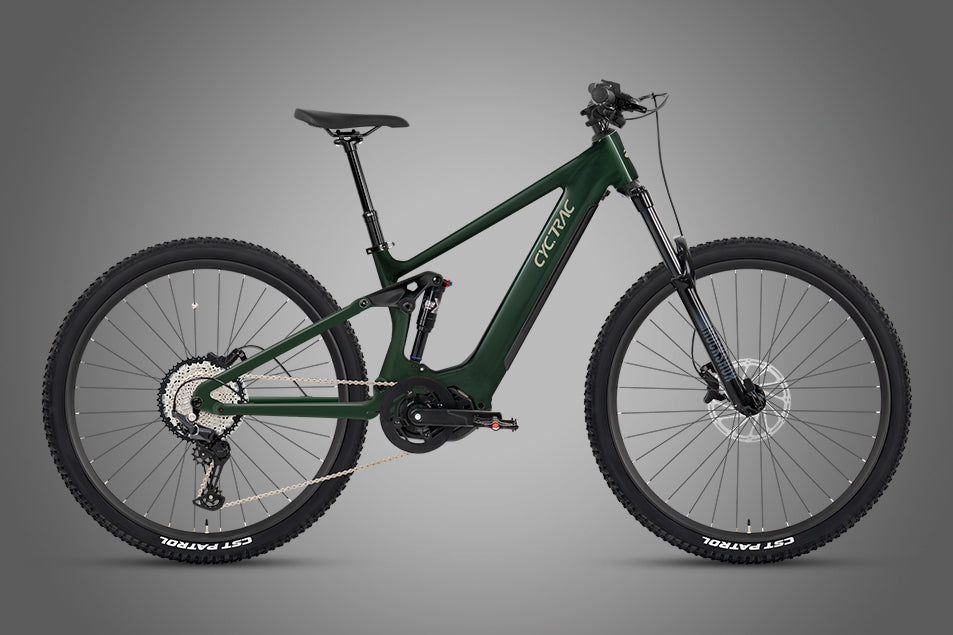

Bike Color	Silver / Black / DarkGreen
Net Weight	Varies from 25.9 KG to 26.7 KG (depending on configuration)
Max Load	160 KG

Frame & Structure

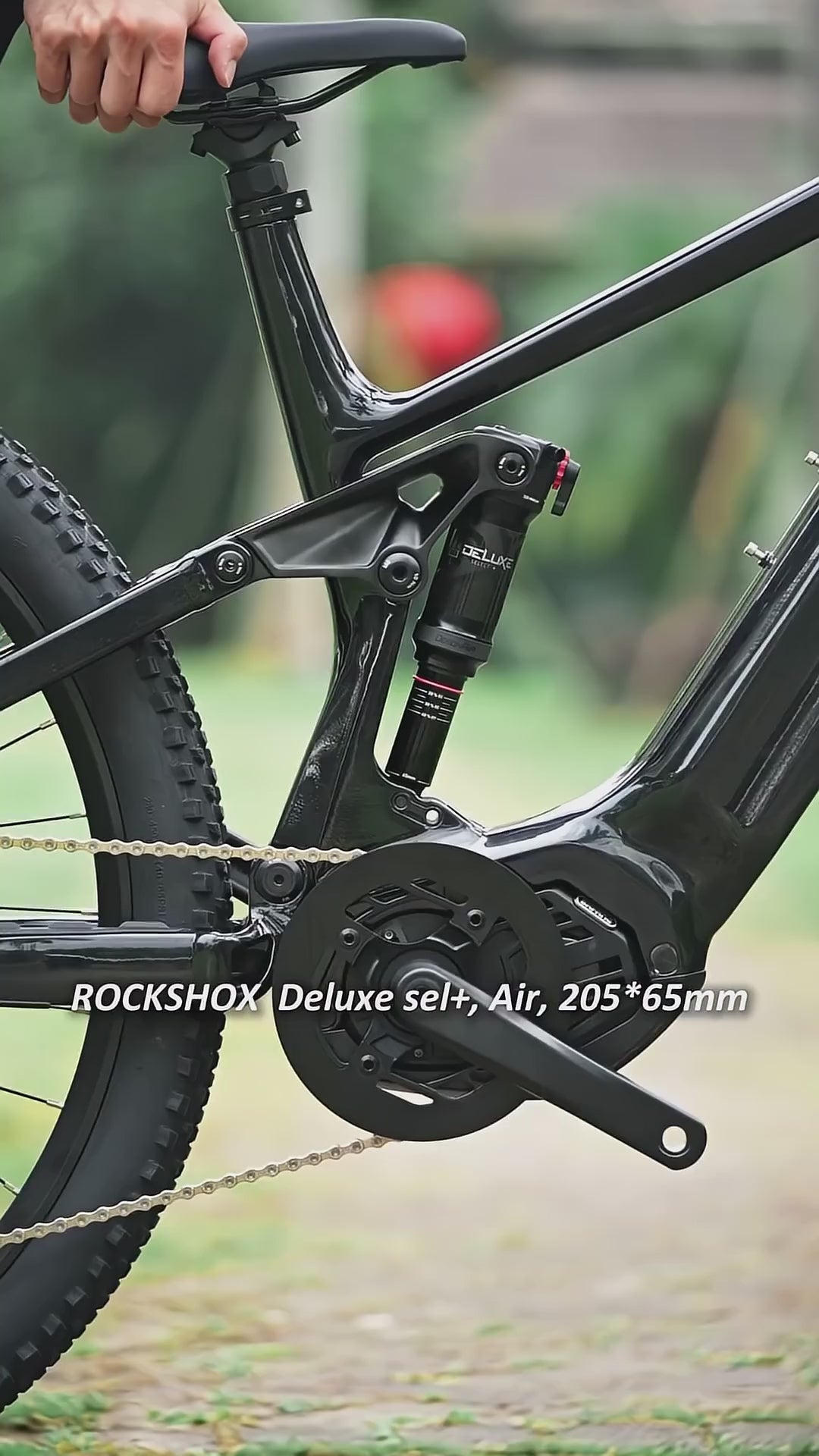

•Frame: CYCTRAC-EM6(3rd), Enduro level, AL6061-T6, Flat weld, Inner cables, Thru-axle 12148 Boost, UDH, 150 & 160mm Travel, DNM air rear shox 20562

•Head Sets: Inner-Cables routing, Sealed bearings 52*52mm

•Handelbar Sets: RS, Alu alloy, Matte, Handlebar 31.8×720, Stem 45, Clamps 34.9mm

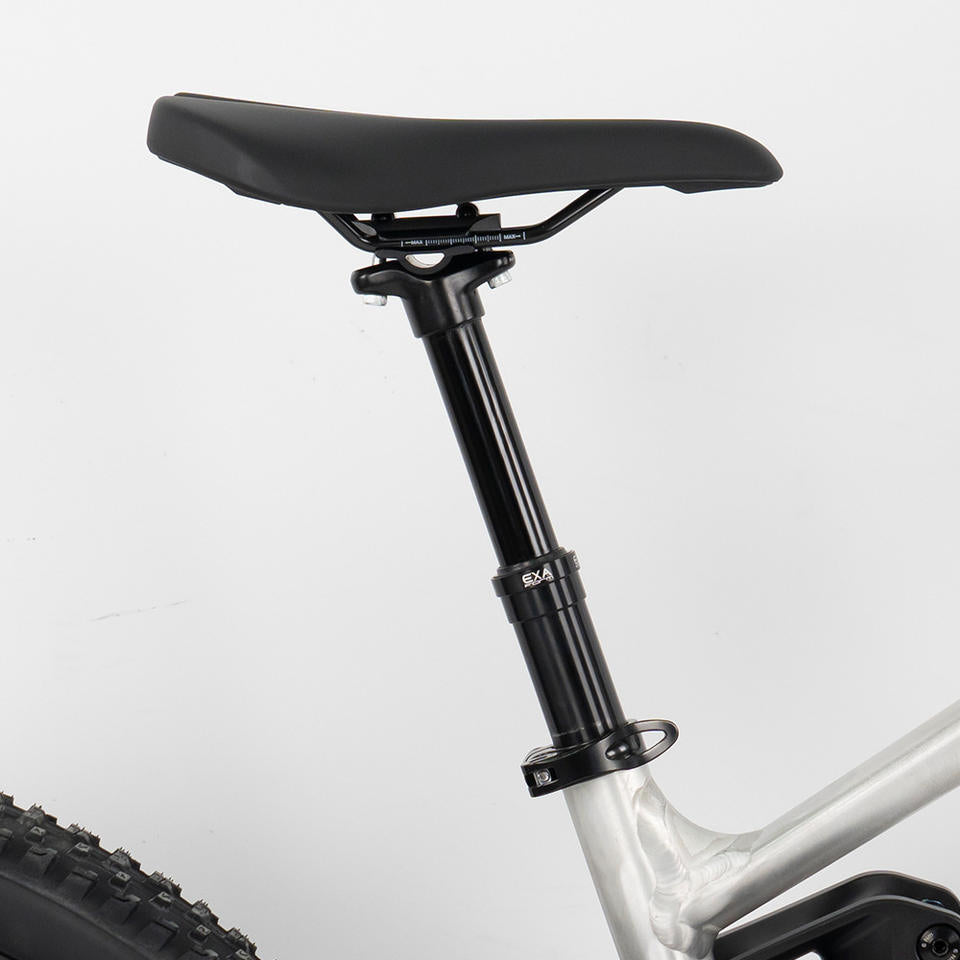

•Seat Post: RS Height-adjustable & Remote 31.6*100/125mm Travel

Motor System & Battery

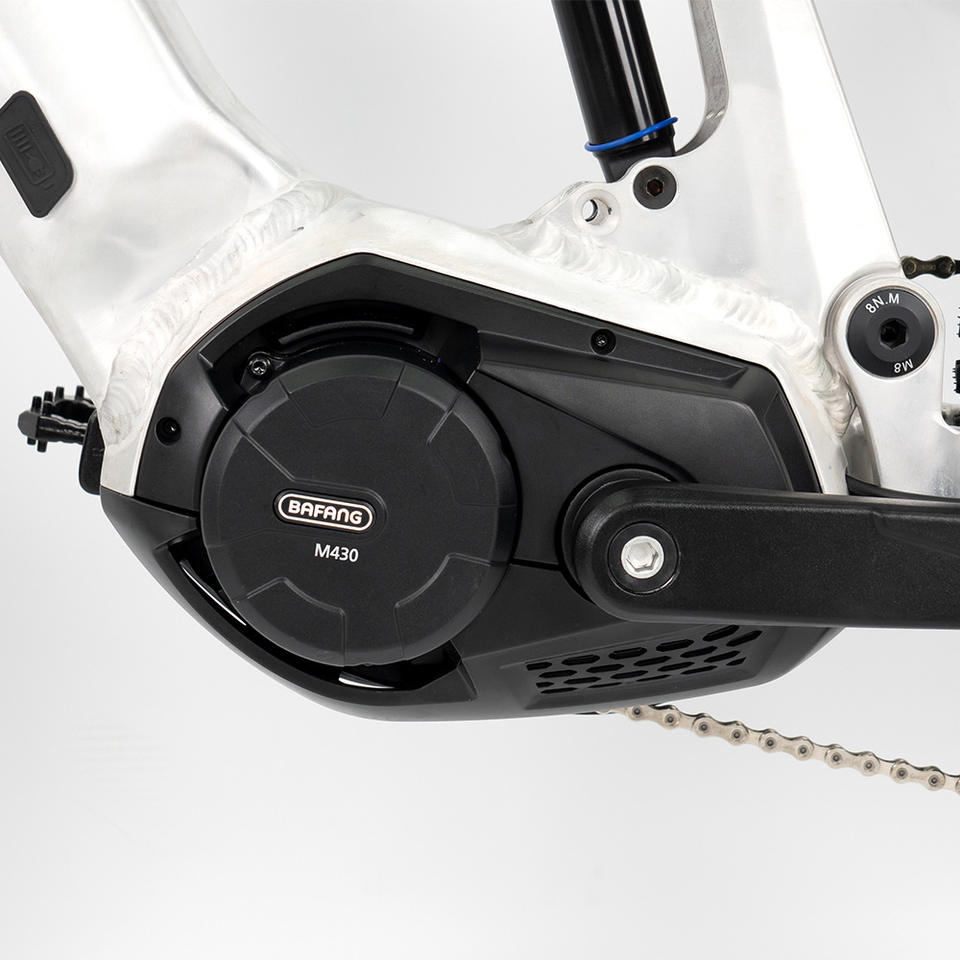

•Motor System: Bafang Mid, M430, 48V500W

•Max Torque: 140 Nm

•Battery: Samsung 21700 Li-ion, 720Wh, 48V15A

•Endurance (Pedal Assist): Max 120-140 KM

•Speed Limit: 25KMh Default (max 45KMh)

•Pedal Sensor: Torque + Cadence, Throttle available

•Full charge time: 5-6 Hours

•Charger: 3A, DC2.1

•HMI: CYC-C101, LCD digital, USB/Type-C

•Waterproof: IP X6

Drivetrain Options (ConfRev)

Variant 1 – LOW (M6100/12S+M430/500W)

•Fork: RS, MgAl alloy, Air, Manual, 150mm, Thru-axle 15*110

•Derailleur Lever: SHIMANO DEORE/M6100-12S

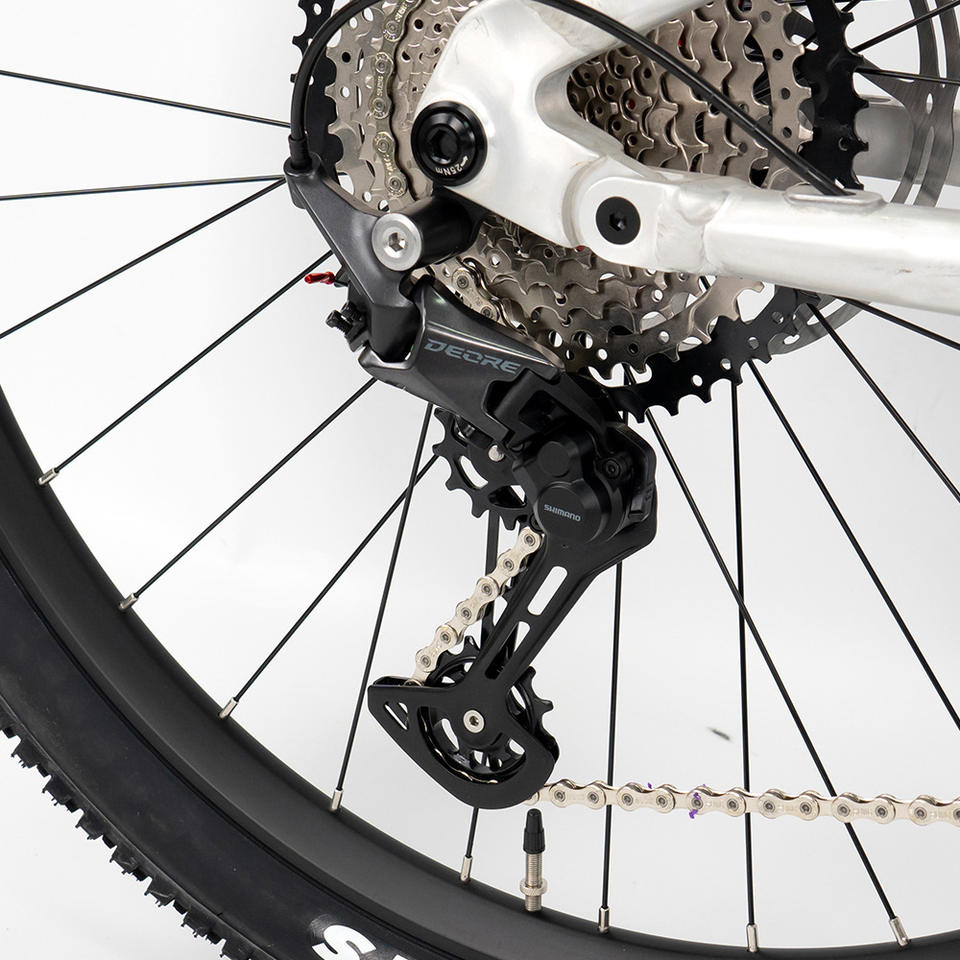

•Rear Derailleur: SHIMANO DEORE/M6100-12S

•Cranksets: Matching with Mid Motor, 38T

•Cassettes: SUNSHINE-12S, 11-50T

•Chain: SUMC-12S

Variant 2 – HIGH (M6100/12S+M430/500W)

•Fork: ROCKSHOX-35S, Air, Manual, 160mm, Thru-axle 15*110

•Derailleur Lever: SHIMANO DEORE/M6100-12S

•Rear Derailleur: SHIMANO DEORE/M6100-12S

•Cranksets: Matching with Mid Motor, 38T

•Cassettes: SUNSHINE-12S, 11-50T

•Chain: SUMC-12S

Variant 3 – HIGH (Wheeltop 12S+M430/500W)

•Fork: ROCKSHOX-35S, Air, Manual, 160mm, Thru-axle 15*110

•Derailleur Lever: Wheeltop EDS OX-12S wireless

•Rear Derailleur: Wheeltop EDS OX-12S wireless

•Cranksets: Matching with Mid Motor, 38T

•Cassettes: SUNSHINE-12S, 11-50T

•Chain: SUMC-12S

Wheelset & Tires

•Hub: RS, Alu alloy, 4-sealed Bearings, HG, Disc, 32Holes, Thru-axle F15×110_R12×148mm Boost

•Rim: RS, Alu alloy with Double-wall & Rivets, W30×H21mm

•Spoke: SHUNJIU, Circular 14G

•Tire: CST, 29/27.5×2.4"

Braking System

•Brake: RS, Alu alloy, 4-piston hydraulic disc, 203/203mm (Standard on all variants)

Additional Components

•Grips: Circular 22.2×120mm, PU leather & locking Ring

•Saddle: RS, Comfortable and Thickened for MTB

•Pedals: RS, Alu alloy & Skid resistant for MTB

Description

The EM6 (3rd) is an extreme Enduro-level E-Mountain Bike, engineered for the most challenging descents and technical climbs. Built on a robust AL6061-T6 Aluminum frame with flat welding, the EM6 is powered by the massive Bafang M430 mid-drive motor, delivering an astonishing 140 N.m of Max Torque. With up to 160mm of travel (front and rear) and a large 720Wh Samsung battery, this bike is ready for any terrain. Crucially, the M430 system includes a Throttle available option, offering riders maximum control and power on demand.

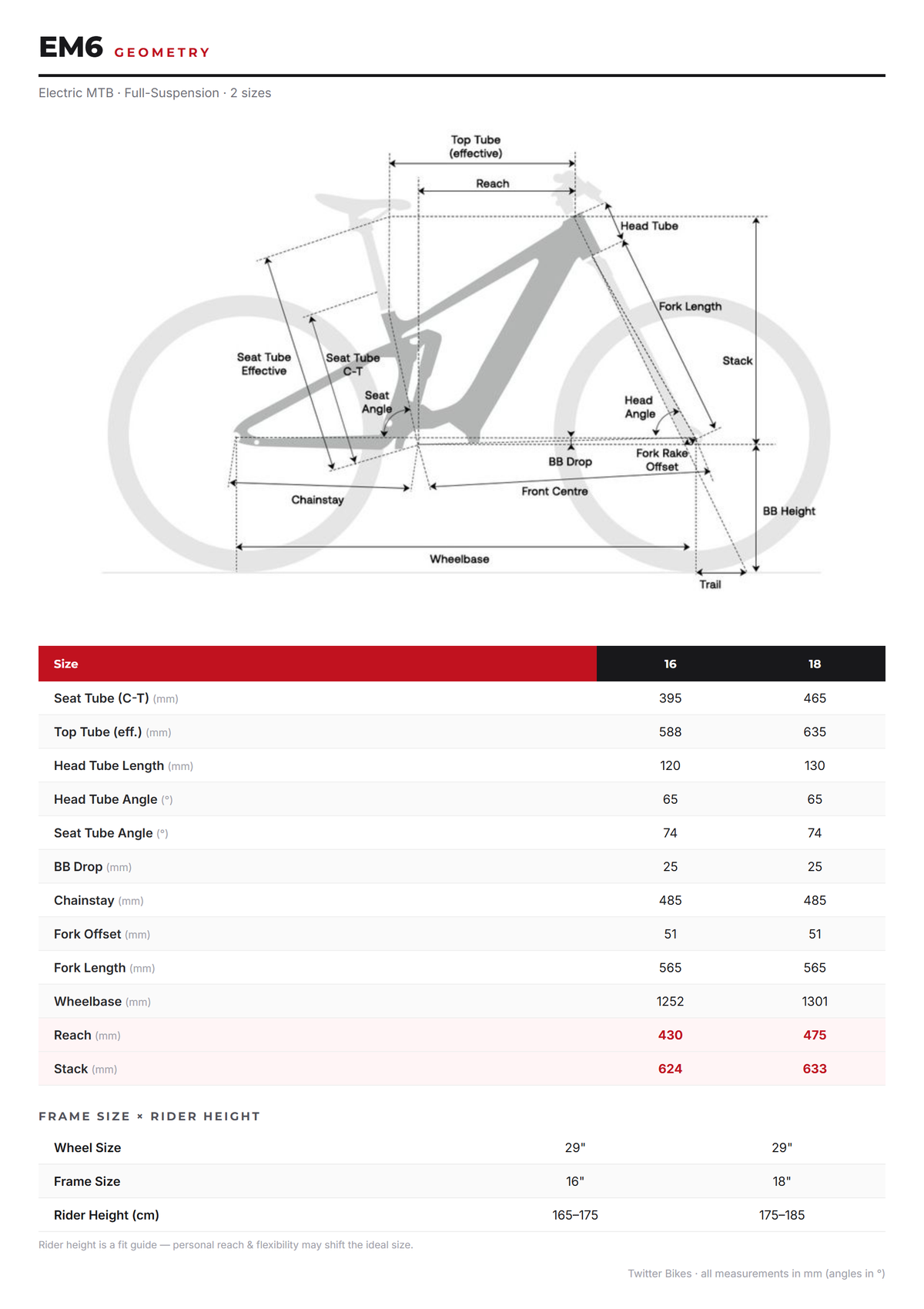

Geometry Image

EM6 - 3RD - Cyctrac Electri...

Silver, Normal, SHIMANO DEORE M6100 - 12 Speed / M430/500W LOW

$2,564.00

EM6 - 3RD Features

Why choose this bike

EM6 Trail Frame

AL7005 Boost frame with 140mm rear travel and internal routing built for demanding terrain.

150mm Air Fork

Choose RS air suspension or upgrade to ROCKSHOX RECON on the high variant.

Three Drive Choices

Select Shimano M6100 or Wheeltop wireless 12-speed for the shifting feel you prefer.

4-Piston Braking

RS-LD400 four-piston hydraulic brakes with 203mm rotors deliver strong and consistent stopping power.

Boost Wheelset

RS hubs and double-wall rims provide strength and stability with MAXXIS 2.25" tires.

Color Options

Matte Black, Dark Green, Dark Blue, and Dark Red finishes are available.

Model	Type	Subtype	Size	Ideal Height (cm)	Leg Seam (cm)	Arm Length (cm)	Seat Tube C-T (mm)	Seat Angle (°)	Chainstay (mm)	Stack (mm)	Trail (mm)	BB Height (mm)	BB Drop (mm)	Front Center (mm)	Fork Length (A2C) (mm)	Head Tube (mm)	Effective Top Tube (mm)	Reach (mm)	Head Angle (°)	Fork Rake (mm)	Seat Tube Effective (mm)	Wheelbase (mm)
EM6	Full Suspension	27.5	16"	165–175	75–82	58–64	406	76	460	630	—	—	—	768	555	130	599	442	66	51	—	—
EM6	Full Suspension	27.5	18"	175–185	80–88	62–70	457	76	460	630	—	—	—	786	555	130	617	460	66	51	—	—
