EM19 2025 - Wheeltop EDS OX-12S wireless 12 Speed - M820 36V20A - CYCTRAC Carbon eMTB - Bike Size (Wheel*Frame): S (27.5"*16") - Seat Post + Front Fork Configuration: HIGH Config

Twitter Electric

⏱ Made to Order: 10-25 Business days

EM19 - Cyctrac Electric Mountain Bikes

(1)

$3,077.00

Color: Black

Bicycle features: Normal

Normal Remap

Configurations: Shimano deore m6100 - 12 speed / m820 low

SHIMANO DEORE M6100 - 12 Speed / M820 LOW SHIMANO DEORE M6100 - 12 Speed / M820 HIGH WheelTop EDS OX 12 Speed (Wireless)

Product variants

Quantity

Secured checkout

EM19 - Cyctrac Electric Mou...

Black, Normal, SHIMANO DEORE M6100 - 12 Speed / M820 LOW

$3,077.00

Key Components

Specification	Detail
Bike Model	EM19
Frame Size	29(27.5)×16" / 18"
Bike Color	Black / DarkGray / DarkGreen / DarkRed
Net Weight	Varies from 21.3 KG to 22.1 KG (depending on configuration)
Max Load	140 KG

Frame & Structure

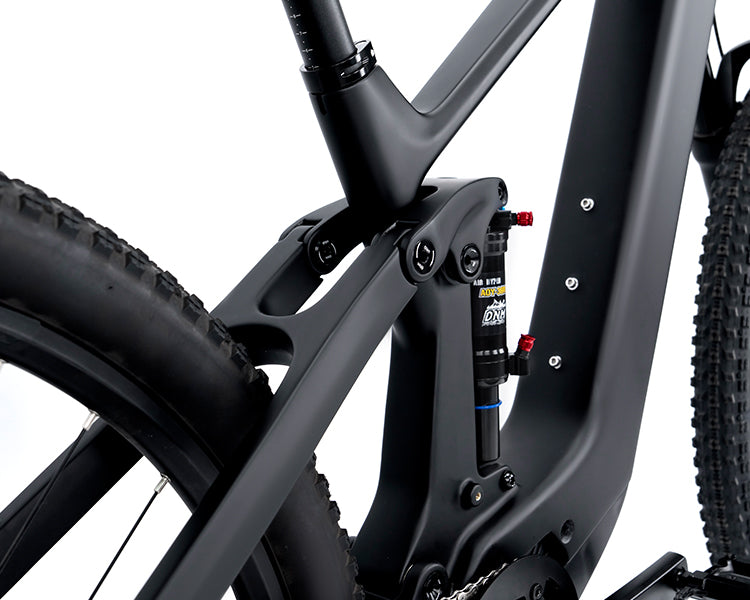

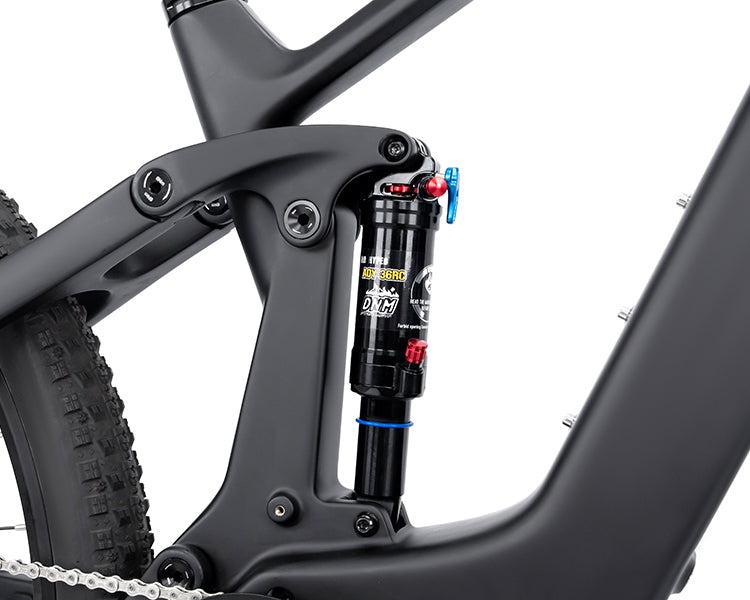

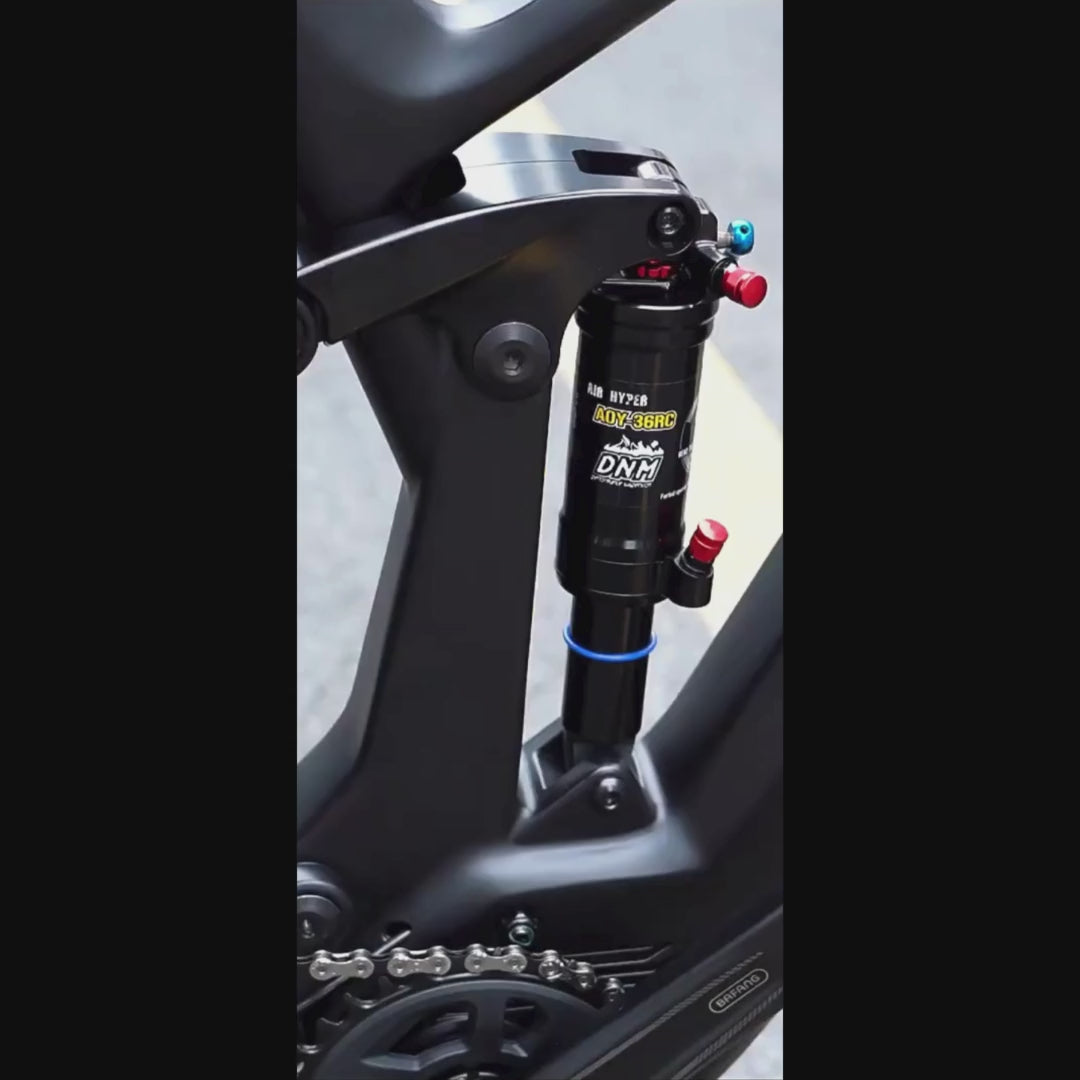

•Frame: CYCTRAC, EM19, AM, High modulus Carbon fiber, Inner cables, Thru-axle 12148 Boost, UDH, 145mm Travel, DNM air rear shox 20055

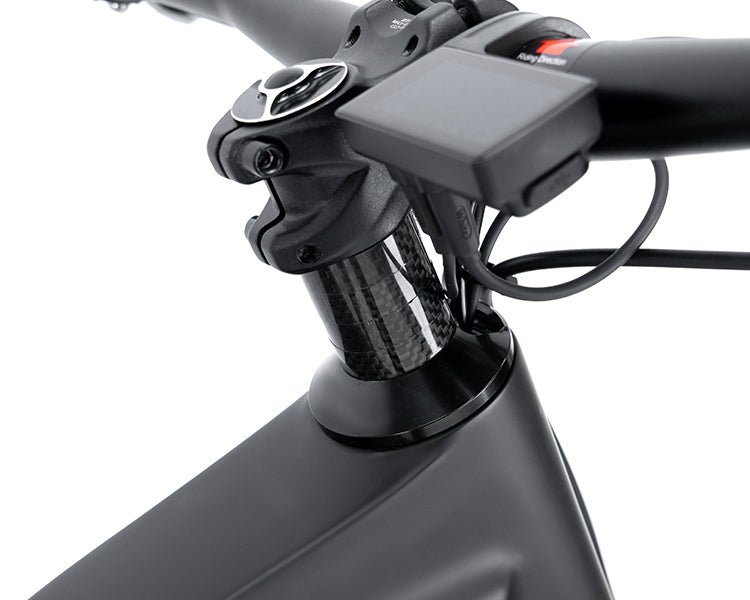

•Head Sets: Inner-Cables routing, Sealed bearings 52*52mm

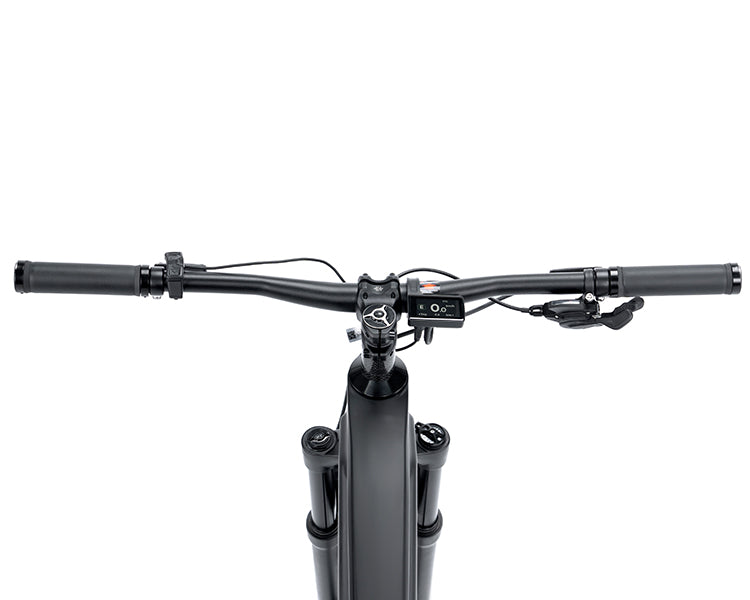

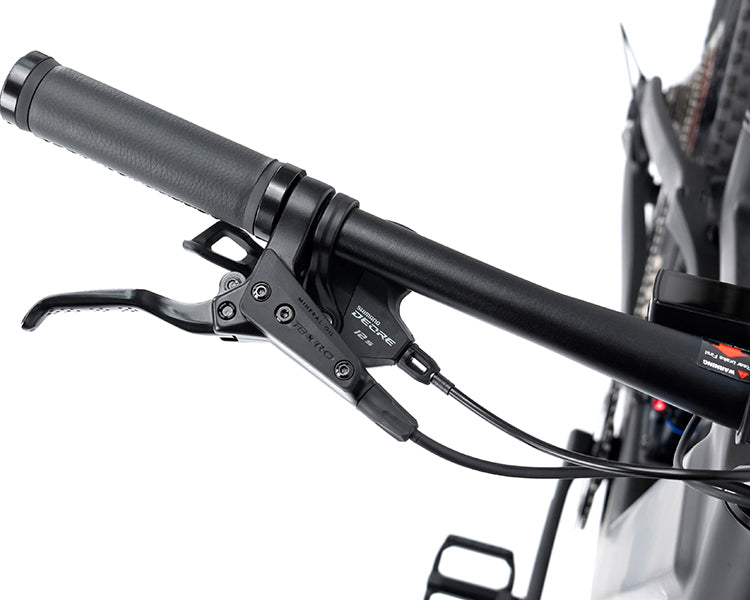

•Handelbar Sets: RS, Alu alloy, Matte, Handlebar 31.8×720, Stem 45, Clamps 34.9mm

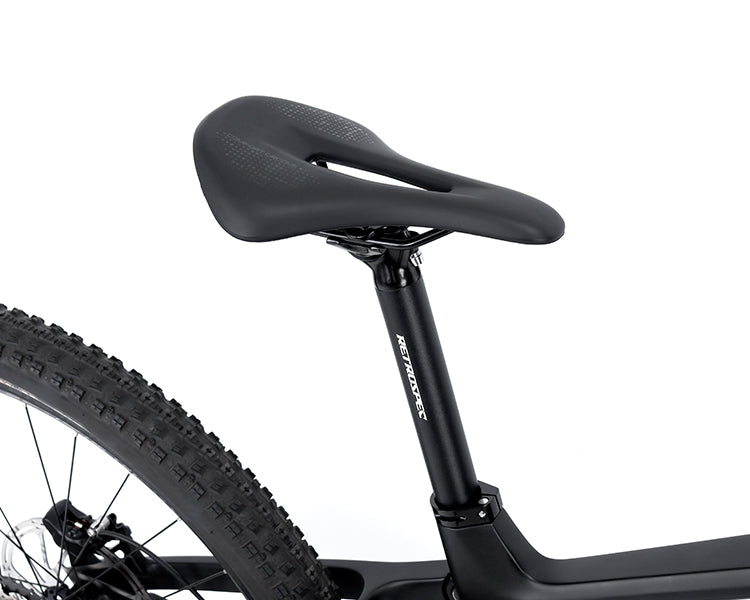

•Seat Post: RS Height-adjustable & Remote 31.6*100/125mm Travel

Motor System & Battery

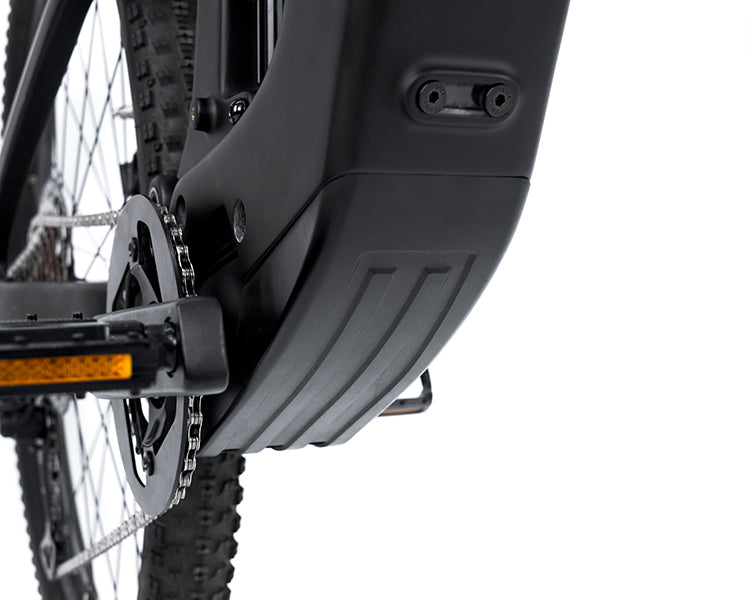

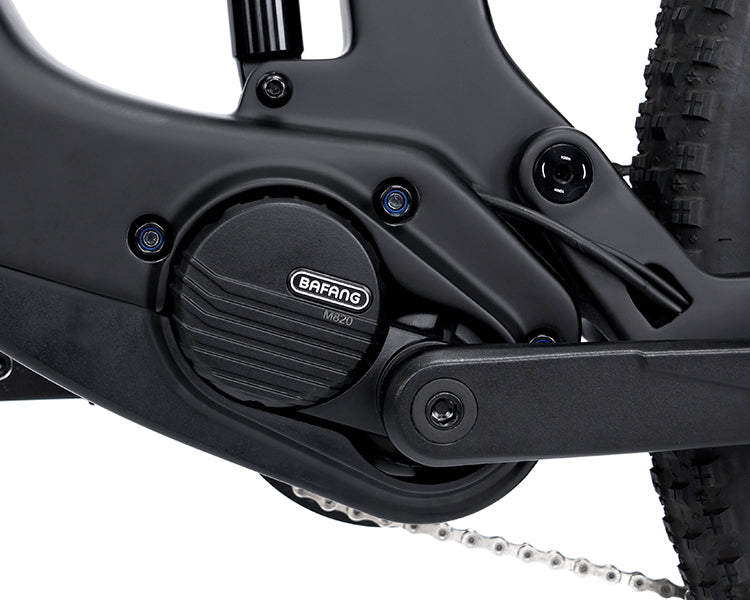

•Motor System: Bafang Mid, M820, 36V250W (48V250W)

•Max Torque: 85 Nm

•Battery: Samsung 21700 Li-ion, 720Wh, 36V20A (48V15A)

•Endurance (Pedal Assist): Max 130-150 KM

•Speed Limit: 25KMh Default (max 45KMh)

•Pedal Sensor: Torque + Speed (cadence)

•Full charge time: 5-7 Hours

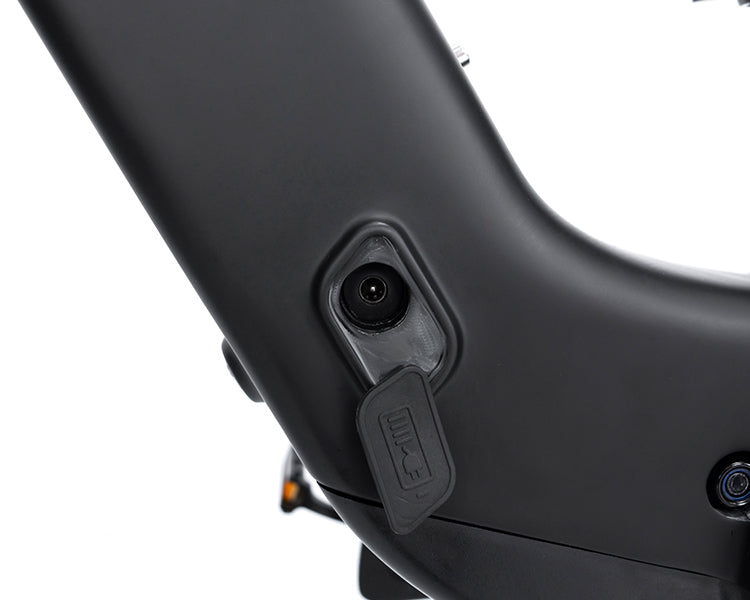

•Charger: 3A, DC2.1

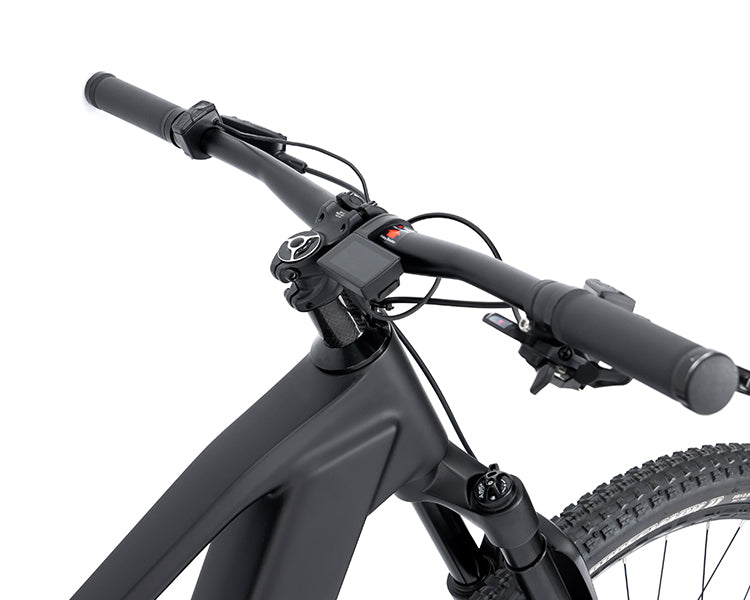

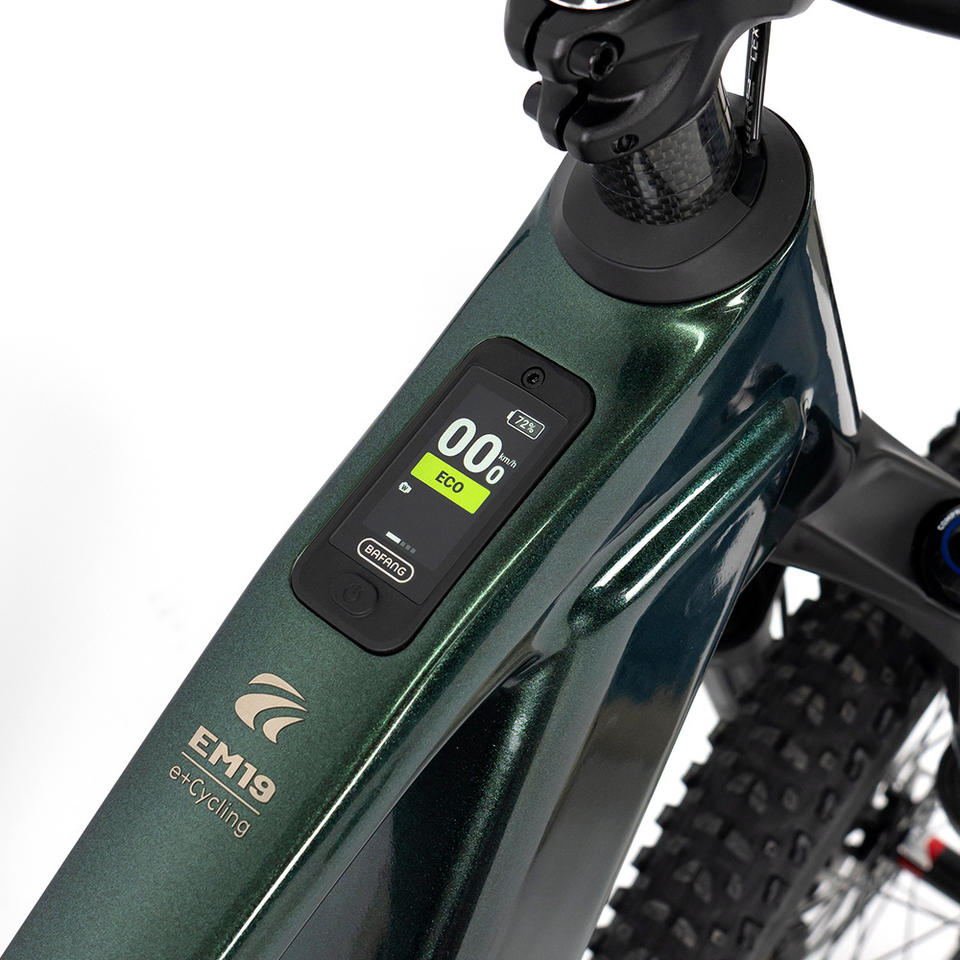

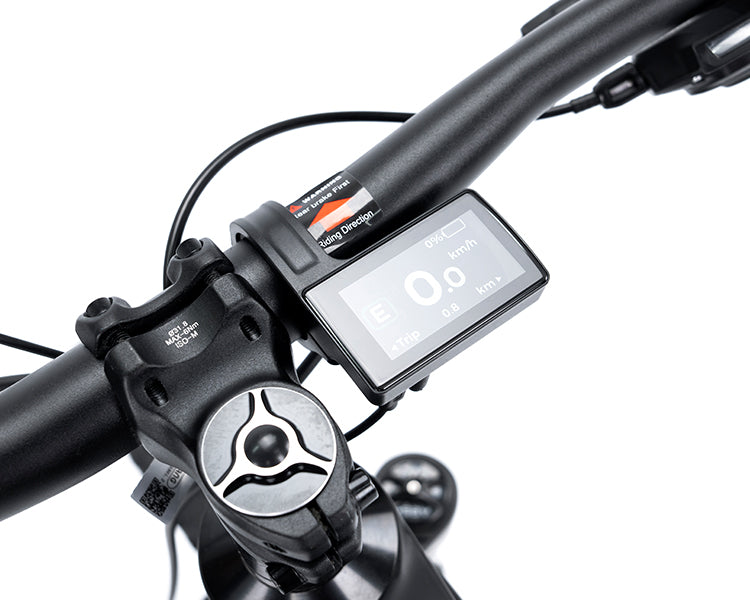

•HMI: Bafang-C030, LCD digital (Built in Top tube), Bluetooth/BafangGo App

•Waterproof: IP X6

Drivetrain Options (ConfRev)

Variant 1 – LOW (M6100/12S+M820)

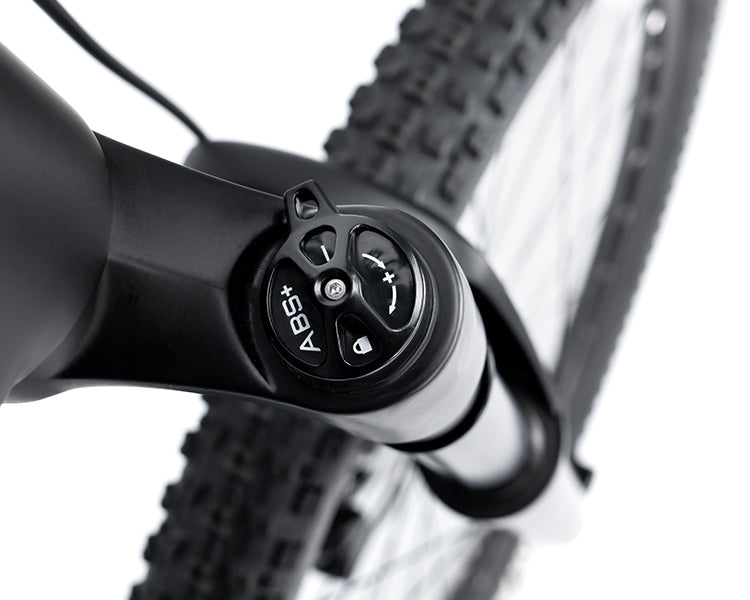

•Fork: RS, MgAl alloy, Air, Manual, 150mm, Thru-axle 15*110

•Derailleur Lever: SHIMANO DEORE/M6100-12S

•Rear Derailleur: SHIMANO DEORE/M6100-12S

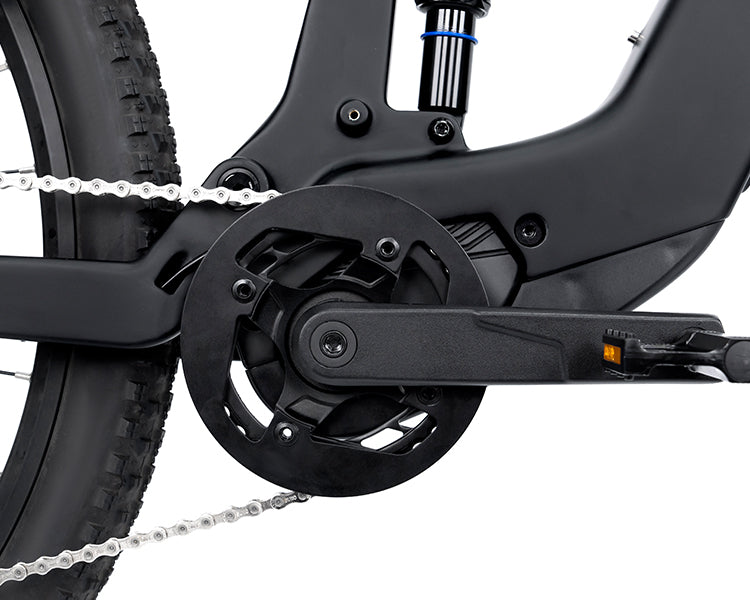

•Cranksets: Matching with Mid Motor, 34T

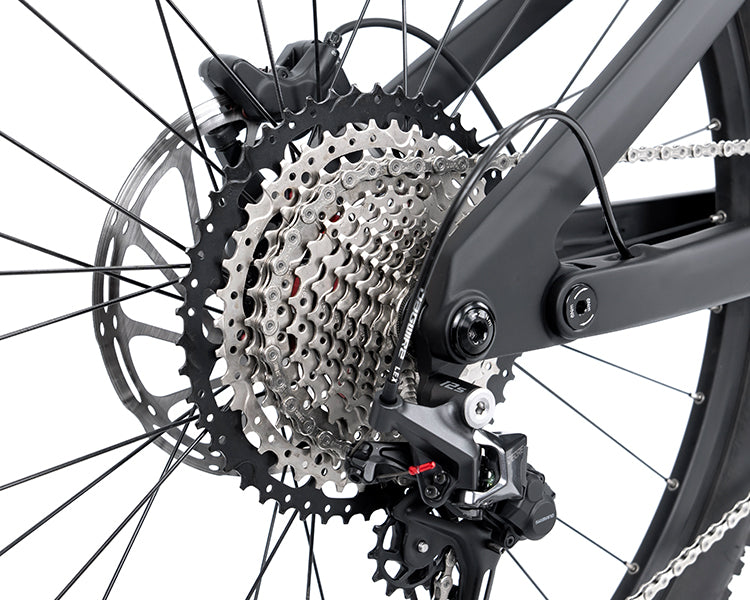

•Cassettes: SUNSHINE-12S, 11-50T

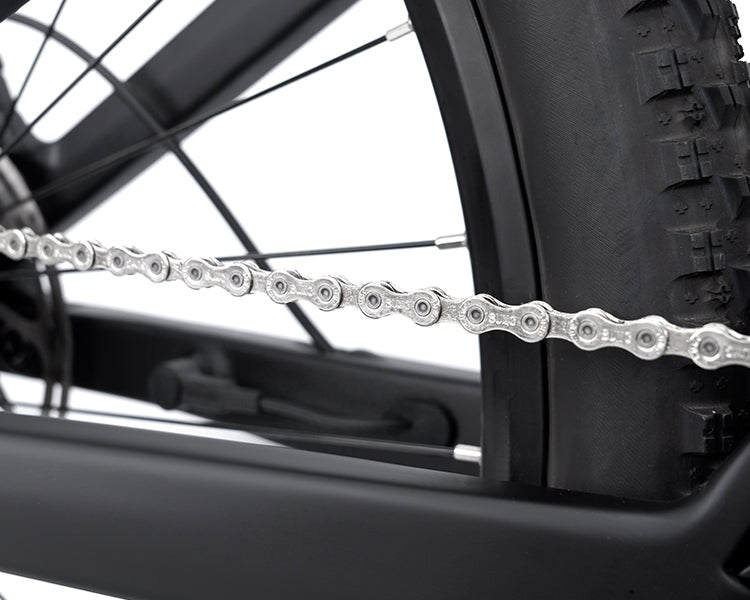

•Chain: SUMC-12S

Variant 2 – HIGH (M6100/12S+M820)

•Derailleur Lever: SHIMANO DEORE/M6100-12S

•Rear Derailleur: SHIMANO DEORE/M6100-12S

•Cranksets: Matching with Mid Motor, 34T

•Cassettes: SUNSHINE-12S, 11-50T

•Chain: SUMC-12S

Variant 3 – HIGH (Wheeltop 12S+M820)

•Derailleur Lever: Wheeltop EDS OX-12S wireless

•Rear Derailleur: Wheeltop EDS OX-12S wireless

•Cranksets: Matching with Mid Motor, 34T

•Cassettes: 12S, 11-50T

•Chain: 12S

Wheelset & Tires

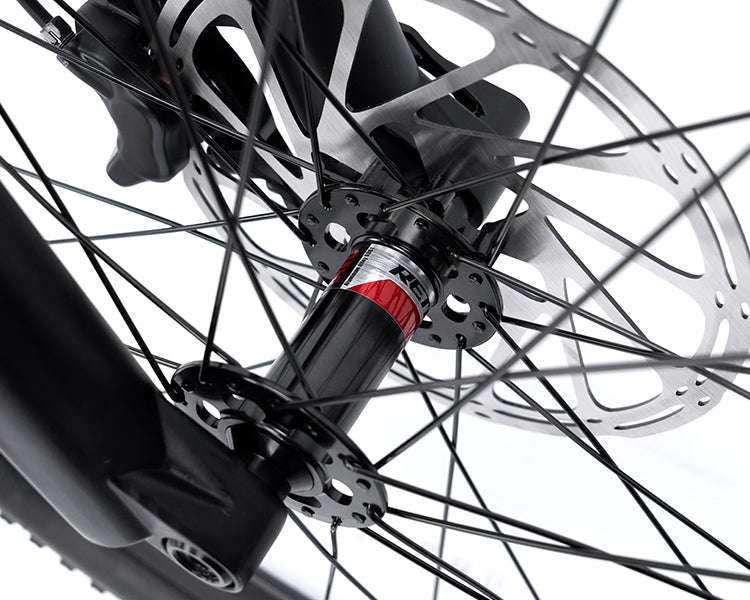

•Hub: RS, Alu alloy, 4-sealed Bearings, HG, Disc, 32Holes, Thru-axle F15×110_R12×148mm Boost

•Rim: RS, Alu alloy with Double-wall & Rivets, W30×H21mm

•Spoke: Circular 14G

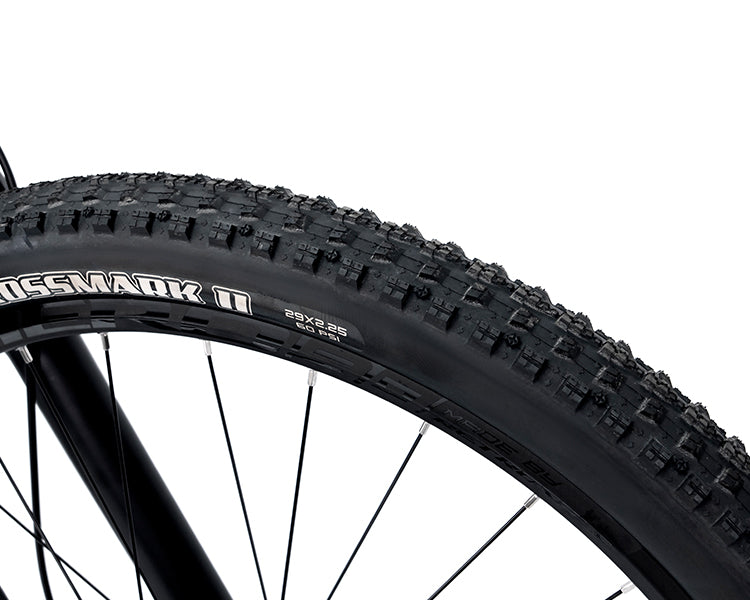

•Tire: 29/27.5×2.4"

Braking System

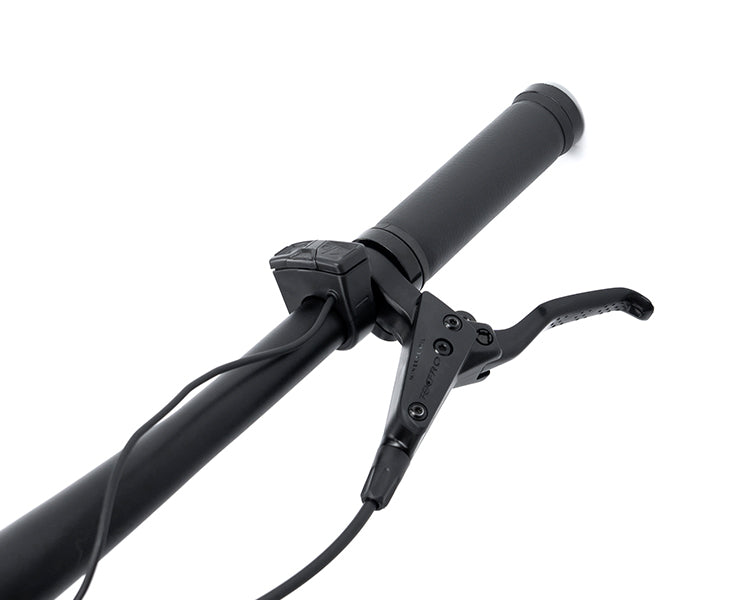

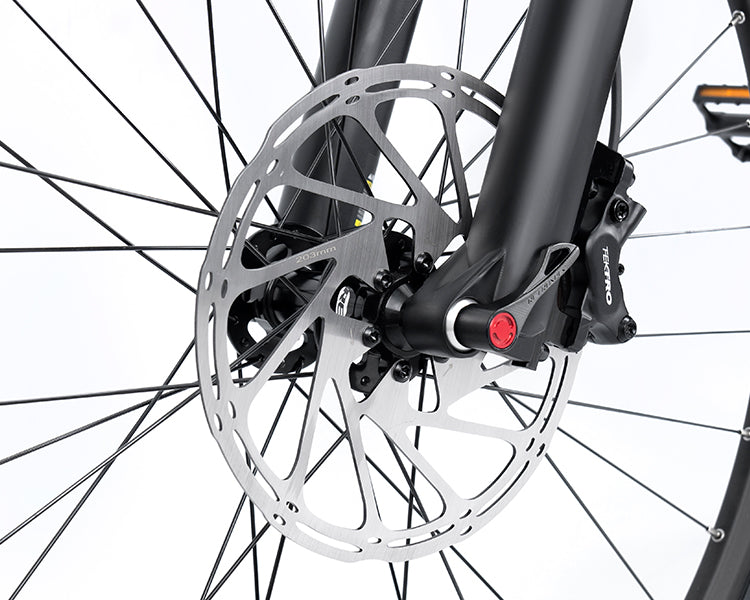

•Brake: hydraulic disc, 203/203mm (Standard on all variants)

Additional Components

•Grips: Circular 22.2×120mm, PU leather & locking Ring

•Saddle: RS, Comfortable and Thickened for MTB

•Pedals: RS, Alu alloy & Skid resistant for MTB

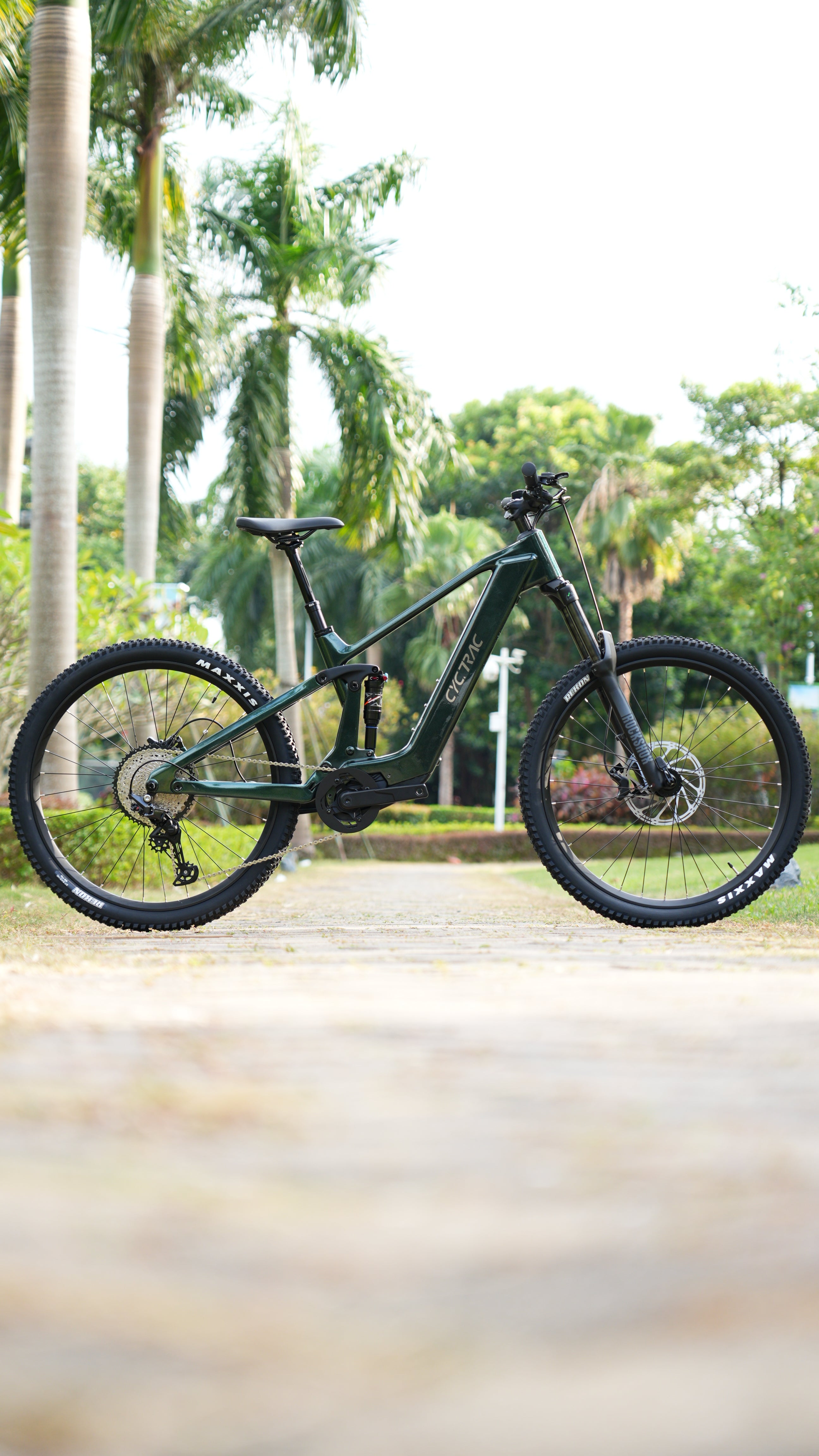

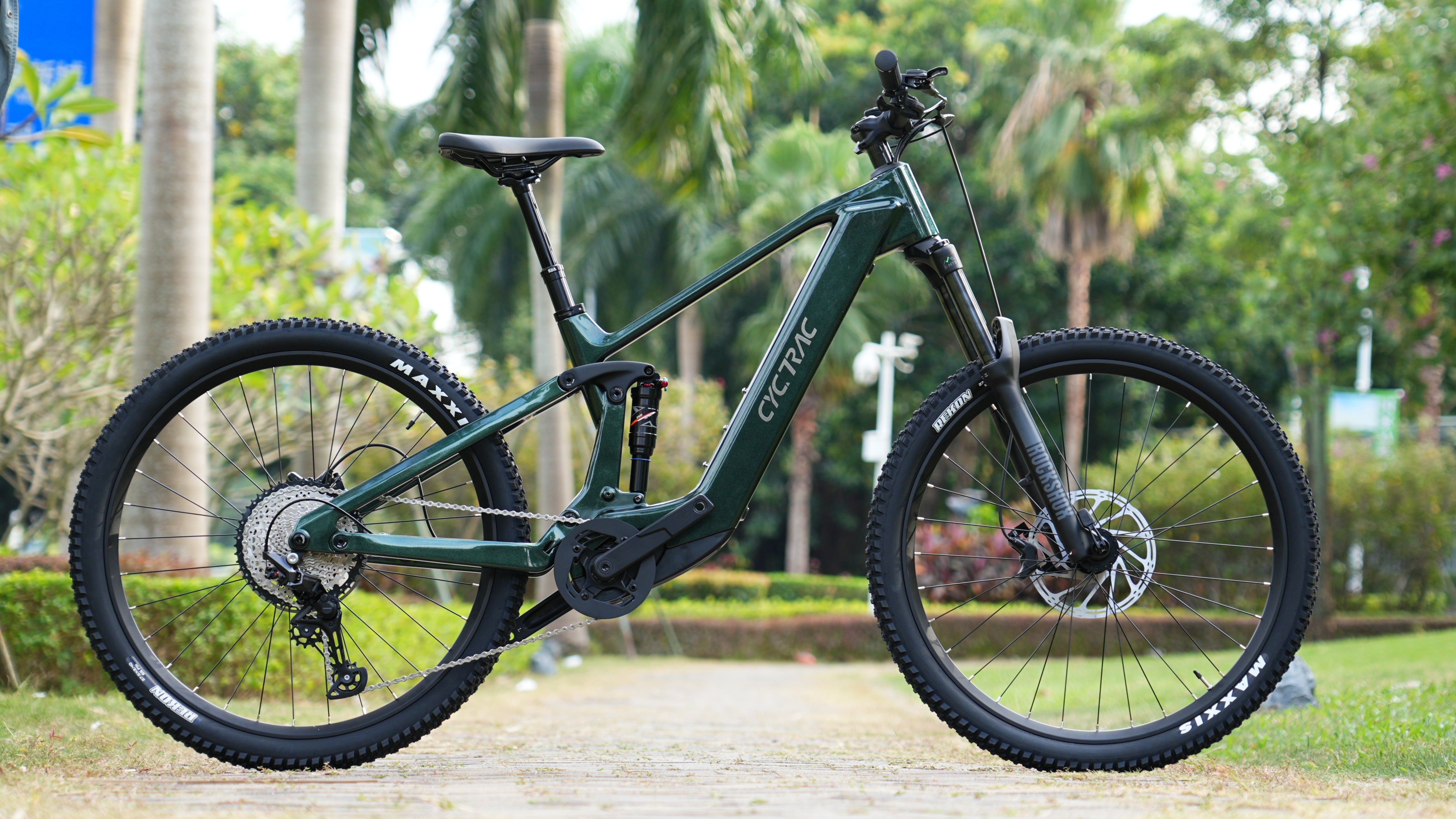

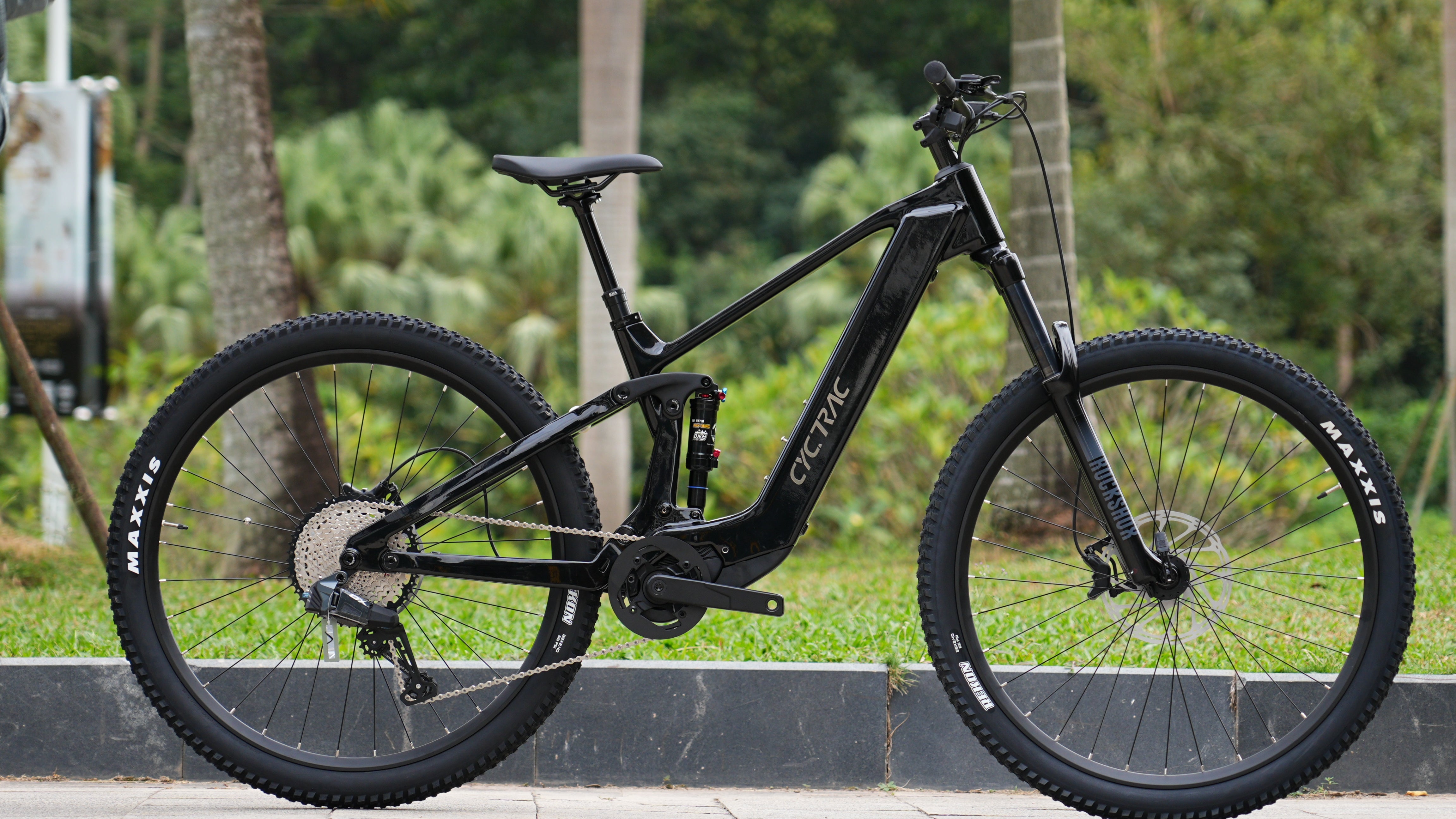

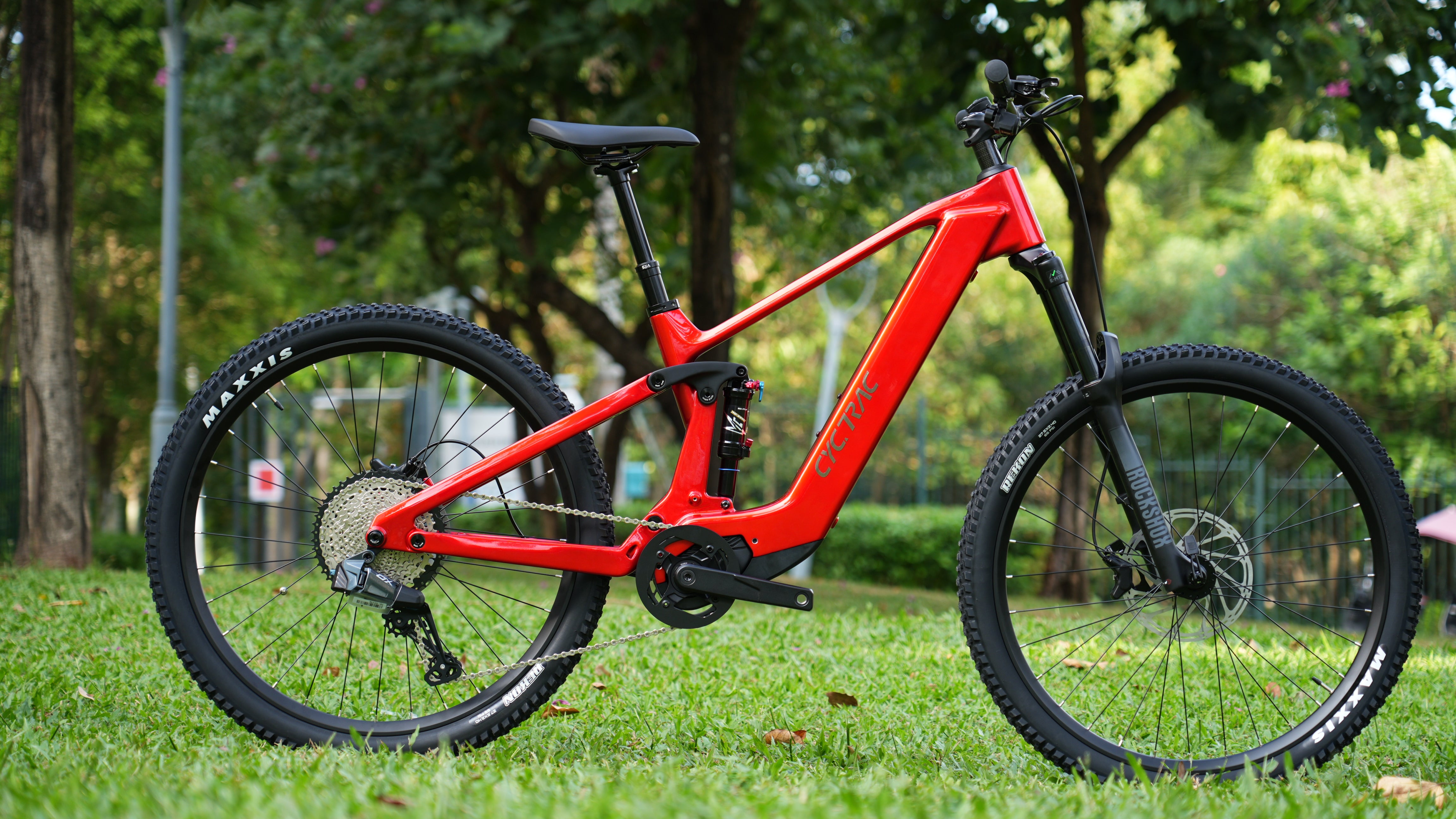

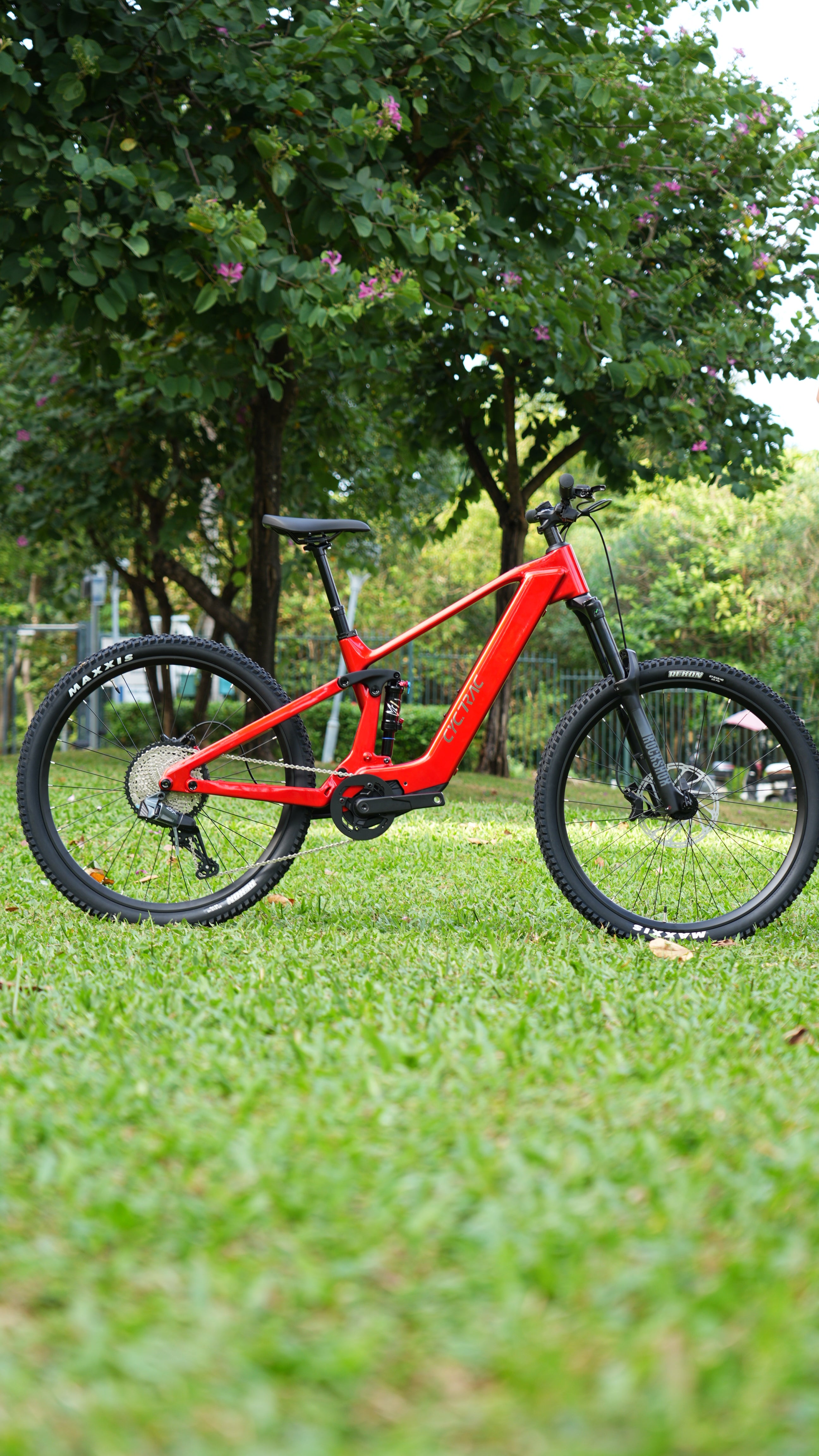

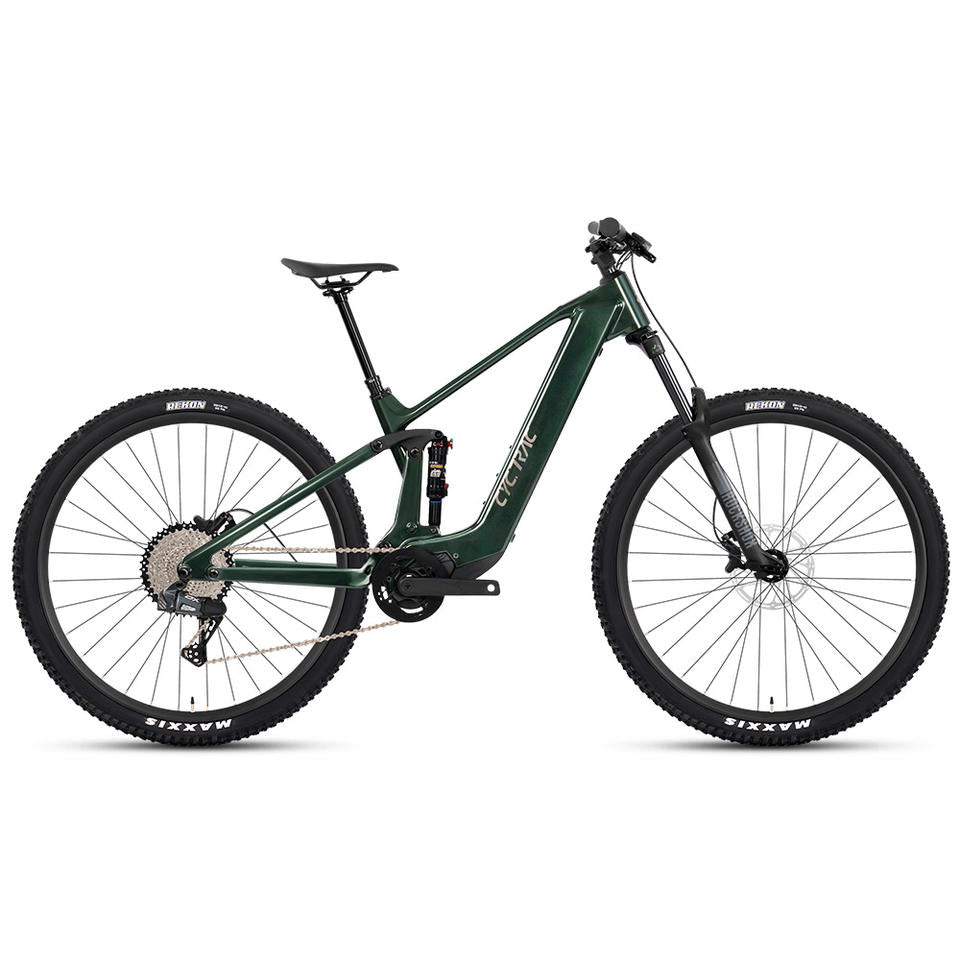

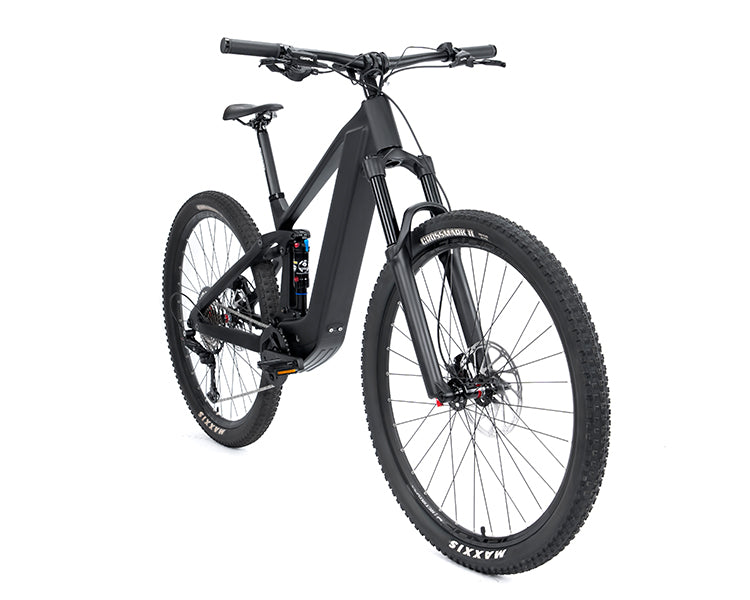

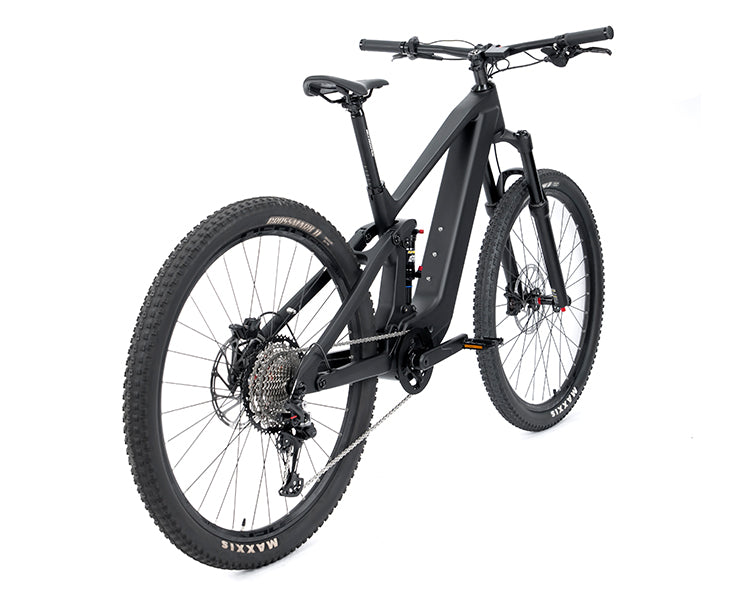

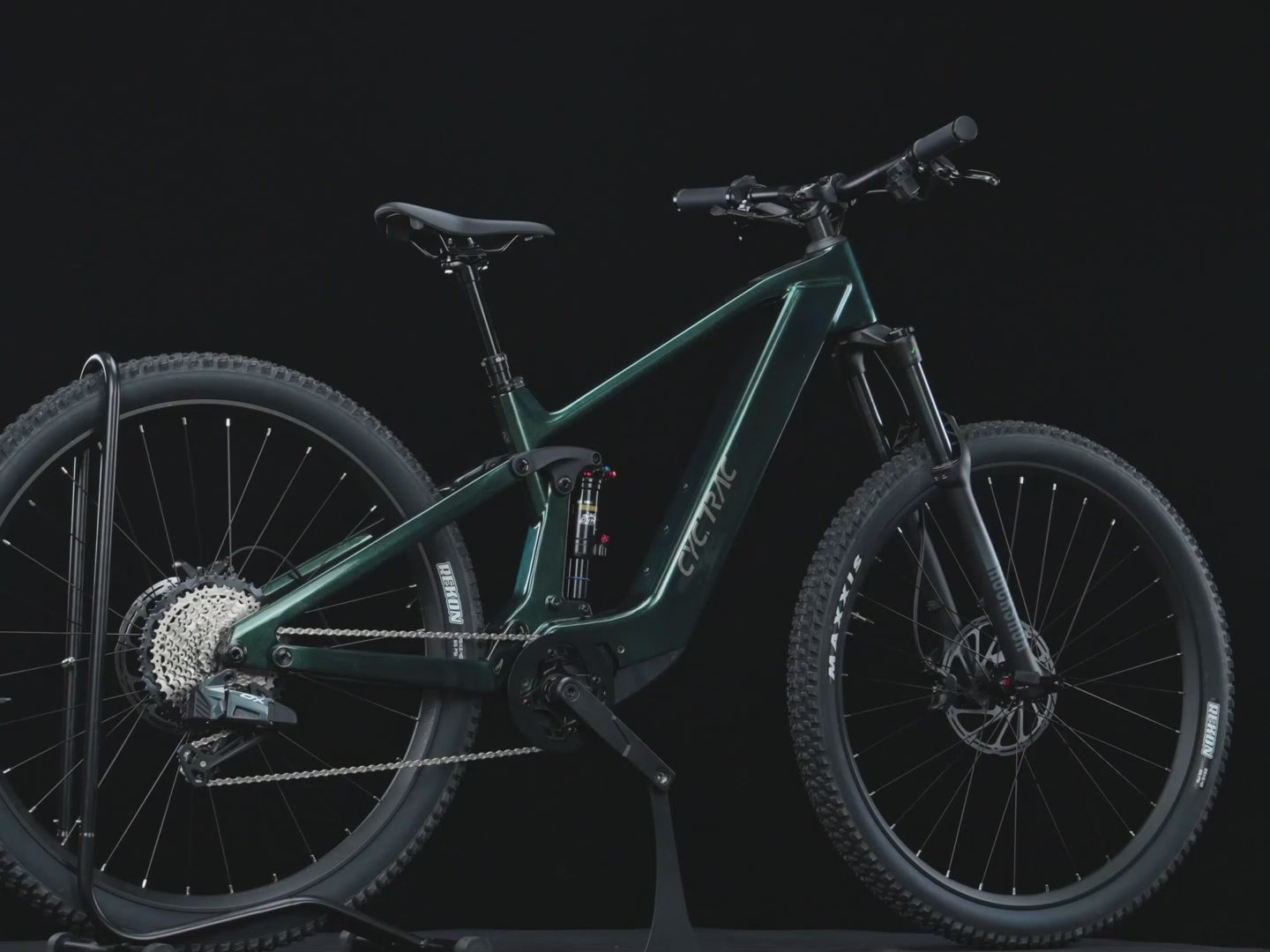

CYCTRAC EM19 is an ultralight full-carbon e-MTB built for aggressive trail and all-mountain riding. Powered by the compact Bafang M820 mid-drive system, it delivers up to 95 N·m peak torque with a natural and efficient pedaling feel. The 140mm carbon rear triangle pairs with 150mm air suspension up front, available with RS or upgraded ROCKSHOX RECON forks depending on the variant. A 720Wh Samsung battery supports 130–150 km of pedal-assist range, while Shimano M6100 or Wheeltop wireless drivetrains offer precise shifting control. With 4-piston TEKTRO braking and Boost wheel spacing, the EM19 is built for confident, capable off-road performance.

Cyctrac EM19 Features

Why choose this bike

Carbon Trail Chassis

High-modulus carbon construction with 140mm travel built for aggressive all-mountain riding.

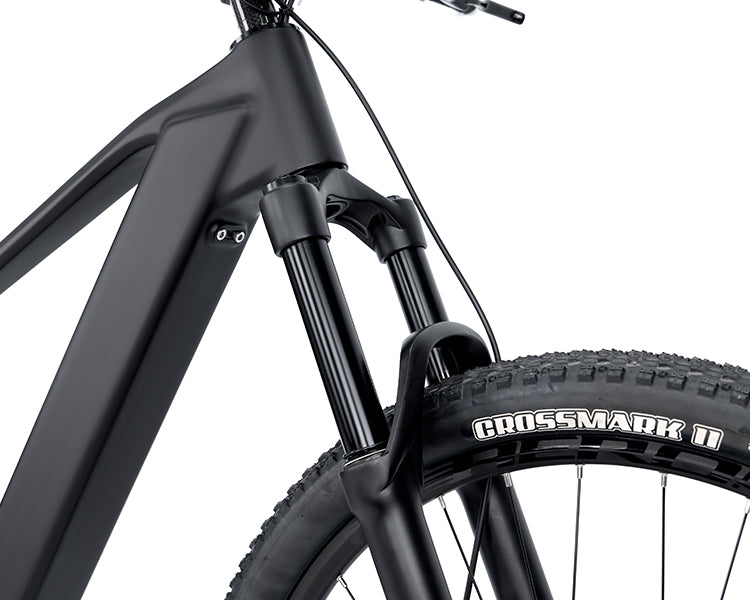

150mm Air Fork

Select between RS air suspension or ROCKSHOX RECON for improved trail sensitivity.

Wireless or Mechanical

Choose Shimano M6100 for proven reliability or Wheeltop wireless for modern, cable-free shifting.

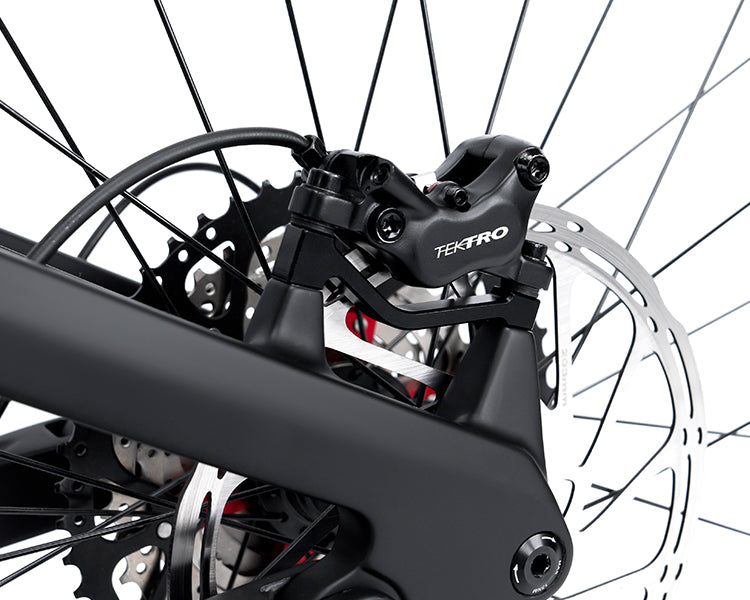

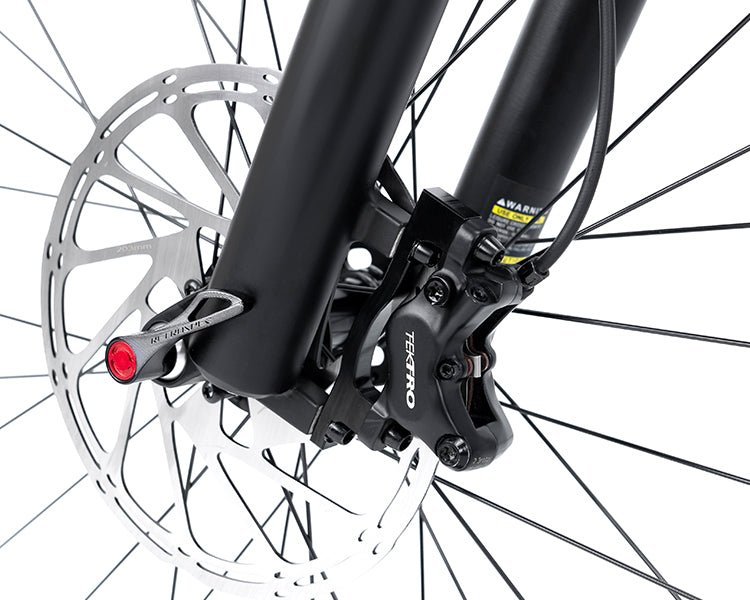

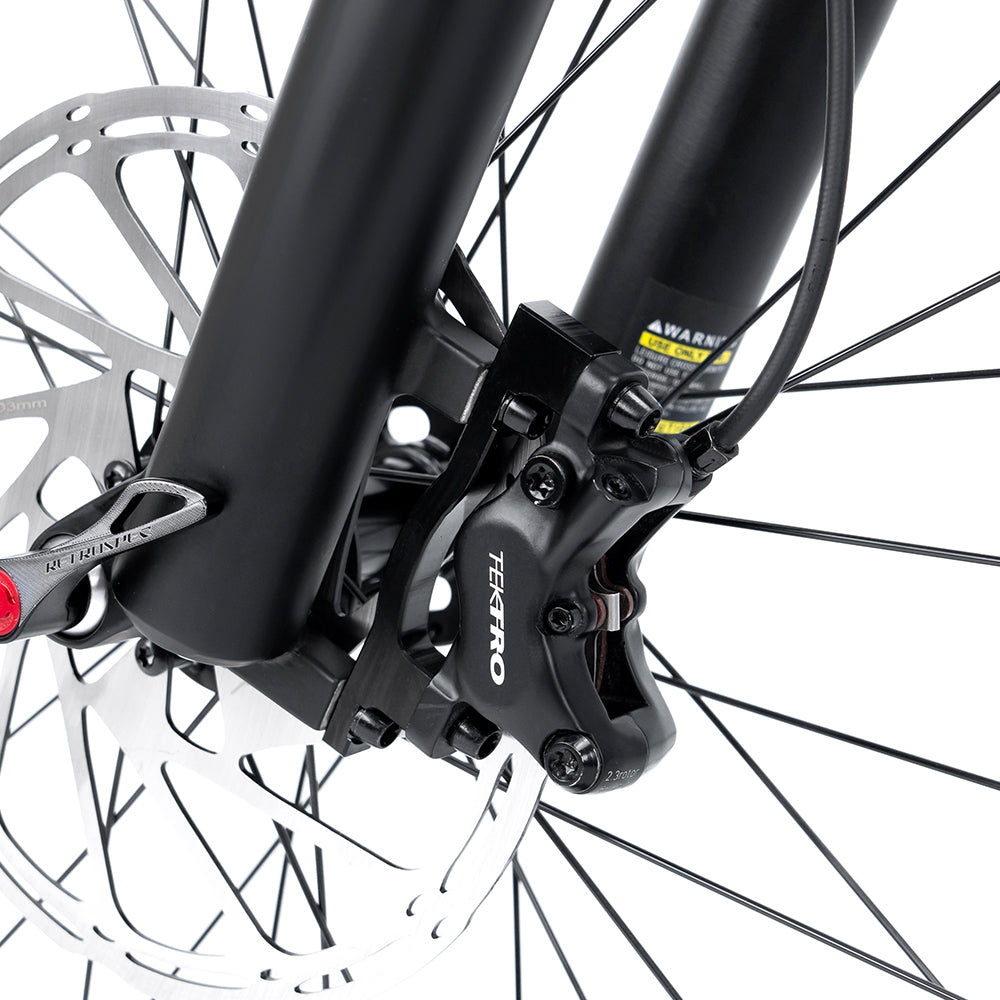

4-Piston Brakes

TEKTRO M535 hydraulic brakes deliver powerful, consistent stopping performance.

Boost Wheelset

RS hubs and double-wall rims provide durability and stability with MAXXIS 2.25" tires.

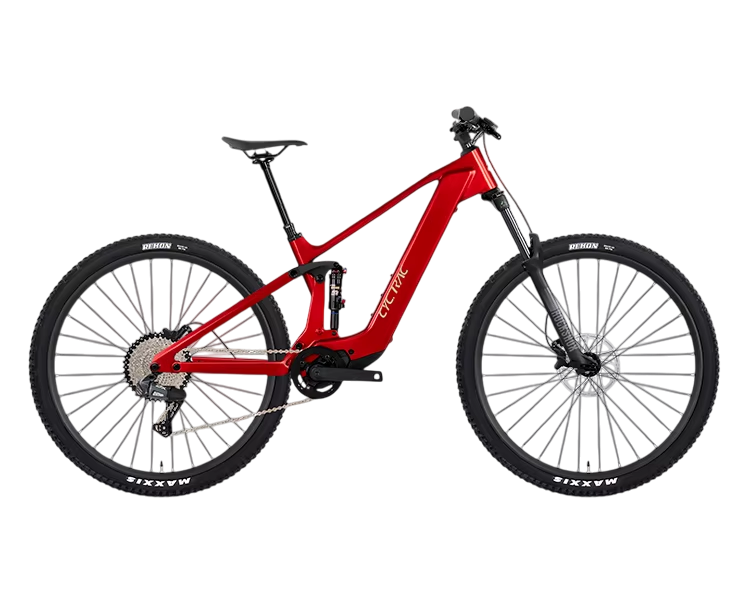

Color Options

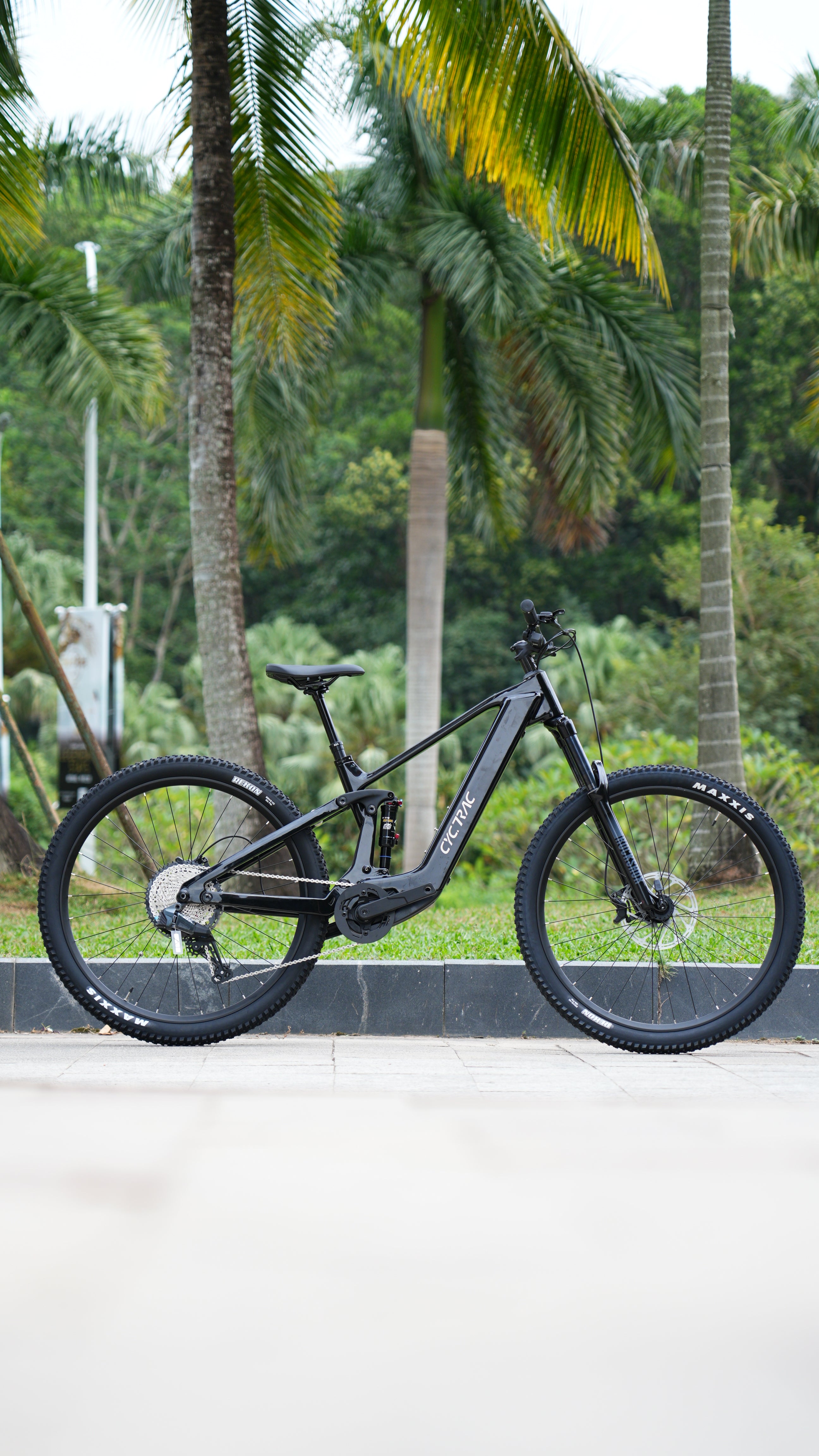

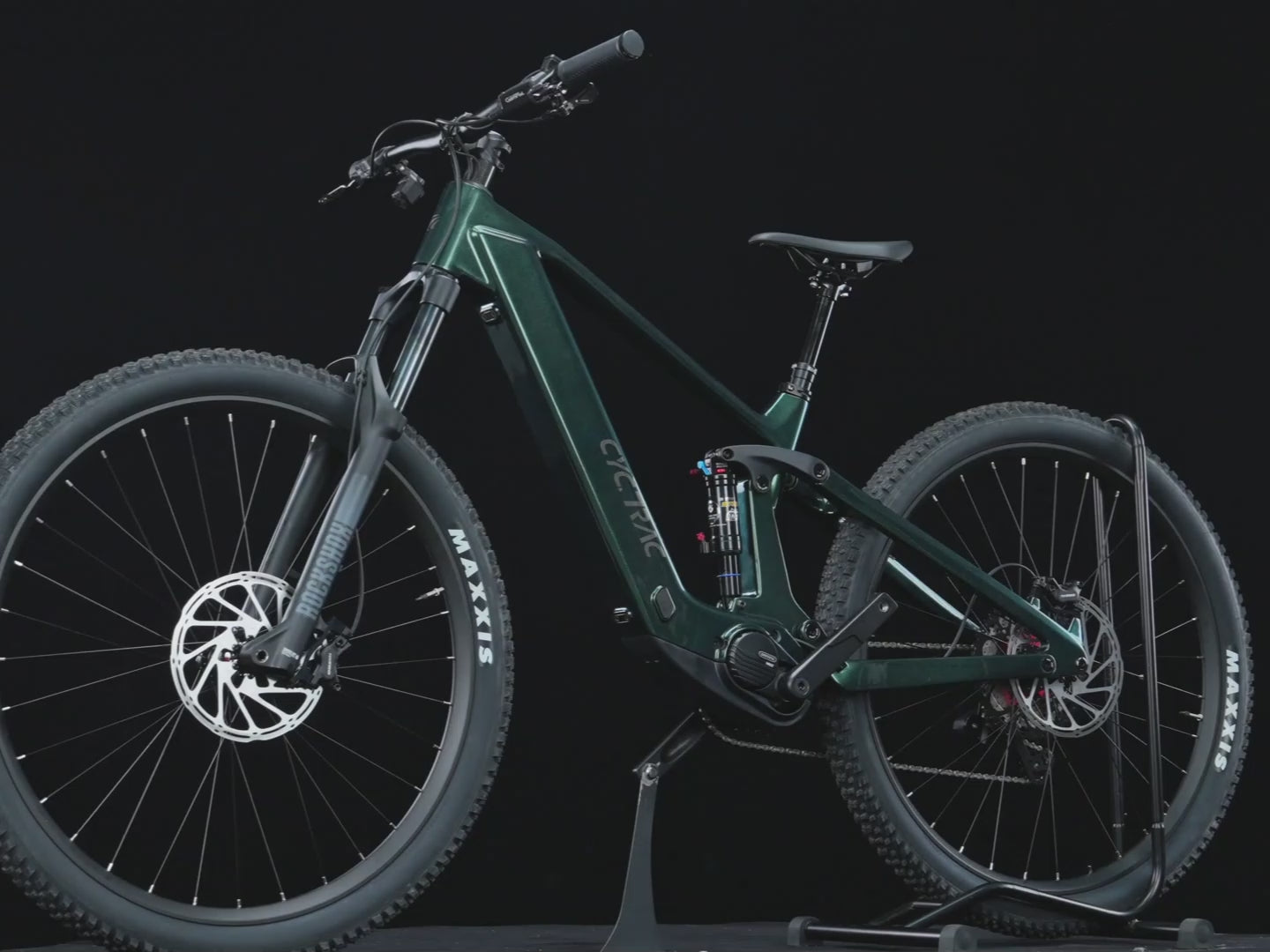

Available in Black, Dark Gray, Dark Green, and Dark Red.

Carbon Frame & Travel

Drivetrain Options

Learn how the 140mm carbon rear end and 12-speed drivetrain enhance control, climbing efficiency, and responsiveness on rough terrain.

EM19 Overview

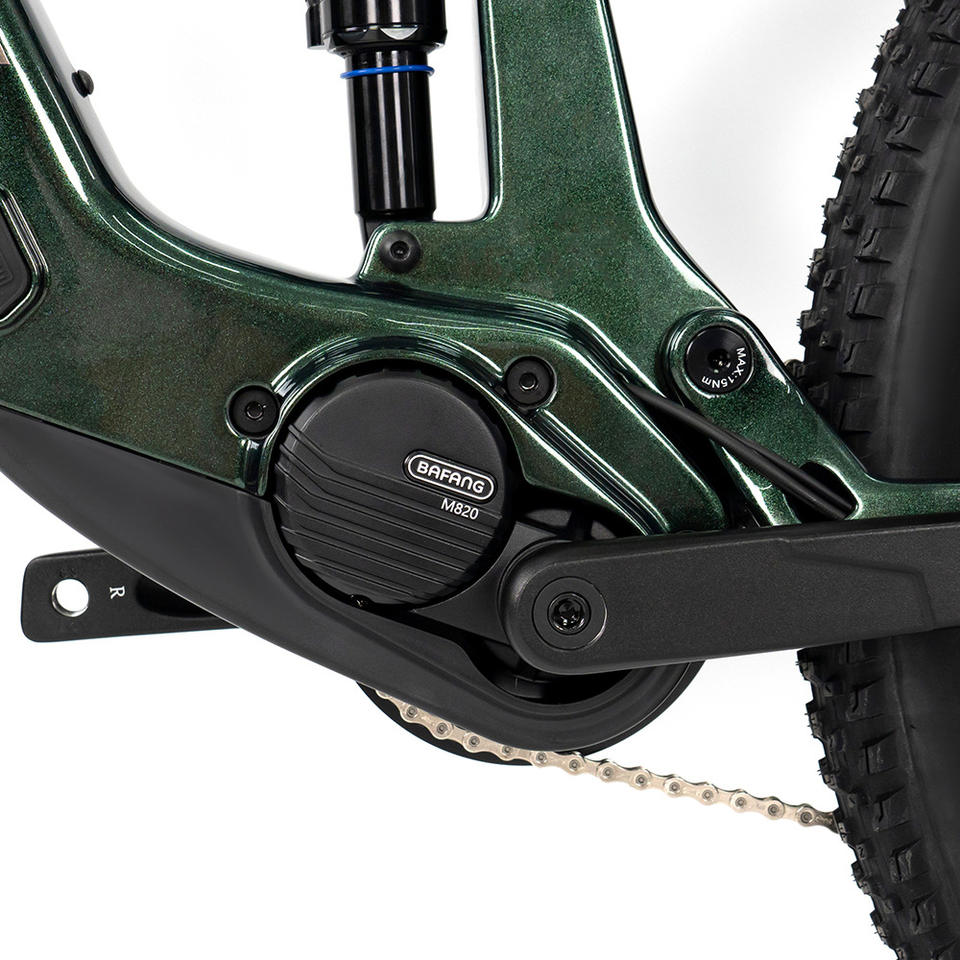

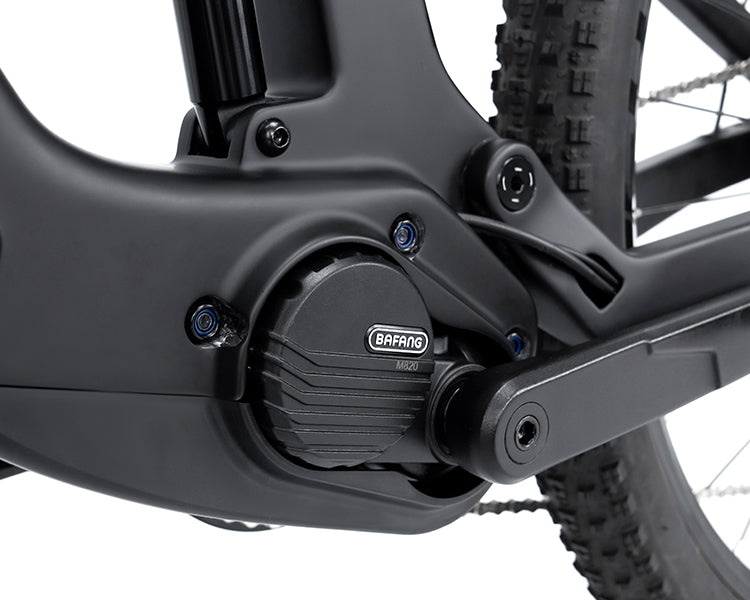

M820 Drive System

See how the lightweight M820 motor delivers smooth power and natural torque support for technical trail riding.

Model	Type	Subtype	Size	Ideal Height (cm)	Leg Seam	Arm Length	Seat Tube C-T (mm)	Seat Angle (°)	Chainstay (mm)	Stack (mm)	Trail (mm)	BB Height (mm)	BB Drop (mm)	Front Center (mm)	Fork Length (A2C) (mm)	Head Tube (mm)	Effective Top Tube (mm)	Reach (mm)	Head Angle (°)	Fork Rake (mm)	Seat Tube Effective (mm)	Wheelbase (mm)
EM19	Full Suspension	27.5	16"	160–170	—	—	397	69.3	459	623.6	—	—	—	753	—	32	578	432	65.3	32	—	1210.7
EM19	Full Suspension	27.5	18"	170–180	—	—	449.5	69.3	459	628.9	—	—	—	790	—	32	615	467	65.3	32	—	1248
EM19	Full Suspension	29	16"	165–175	—	—	397	69.3	459	623.6	—	—	—	753	—	32	578	432	65.3	32	—	1210.7
EM19	Full Suspension	29	18"	175–185	—	—	449.5	69.3	459	628.9	—	—	—	790	—	32	615	467	65.3	32	—	1248
