⏱ Made to Order: 10-25 Business days

EM10 - Cyctrac Electric Mountain Bike

(1)
$3,220.00
Color: Dark gray
Bicycle features: Normal
Configurations: Shimano deore m6100-12 speed / m560 (48v500w)

  • Amazon
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • iDEAL Wero
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Secured checkout

EM10 - Cyctrac Electric Mou...

Dark Gray, Normal, SHIMANO DEORE M6100-12 Speed / M560 (48V500W)

$3,220.00

Key Components

Specification
Detail
Bike Model
EM10
Frame Size
29(27.5)×16" / 18"
Bike Color
DarkGray&Black / DarkGreen&Black / Red&Black / Holographic&Black
Net Weight
Varies from 23.6 KG to 24.4 KG (depending on configuration)
Max Load
150 KG

Frame & Structure

Frame: CYCTRAC, EM10, AM, High modulus Carbon fiber, Inner cables, Thru-axle 12*148 Boost, 145mm Travel, DNM air rear shox 200*55
Fork: RS, MgAl alloy, Air, Manual, 150, Thru-axle 15*110 (or ROCKSHOX-35S in high variants)
Head Sets: Inner-Cables routing, Sealed bearings 52*52mm
Handelbar Sets: RS, Alu alloy, Matte, Handlebar 31.8×720, Stem 45, Clamps 34.9mm, Seat post RS Height-adjustable&Remote 31.6*100/125mm Travel

Motor System & Battery

Specification
Detail
Motor System
Bafang Mid, M560, 48V500W
Max Torque
140 Nm
Speed Limit
25KMh Default (max 45KMh)
Pedal Sensor
Torque+Cadence, Throttle available
Battery
Samsung 21700 Li-ion, 720Wh, 48V15A
Endurance (Pedal Assist)
Max 120-140 KM
Full charge time
5-6 Hours
Charger
3A, DC2.1
HMI
Bafang-C245, LCD digital, USB/Type-C, Bluetooth/BafangGo App
Waterproof
IP X6

Drivetrain Options (ConfRev)

The EM10 is available in three distinct configurations, all featuring a 12-speed system:

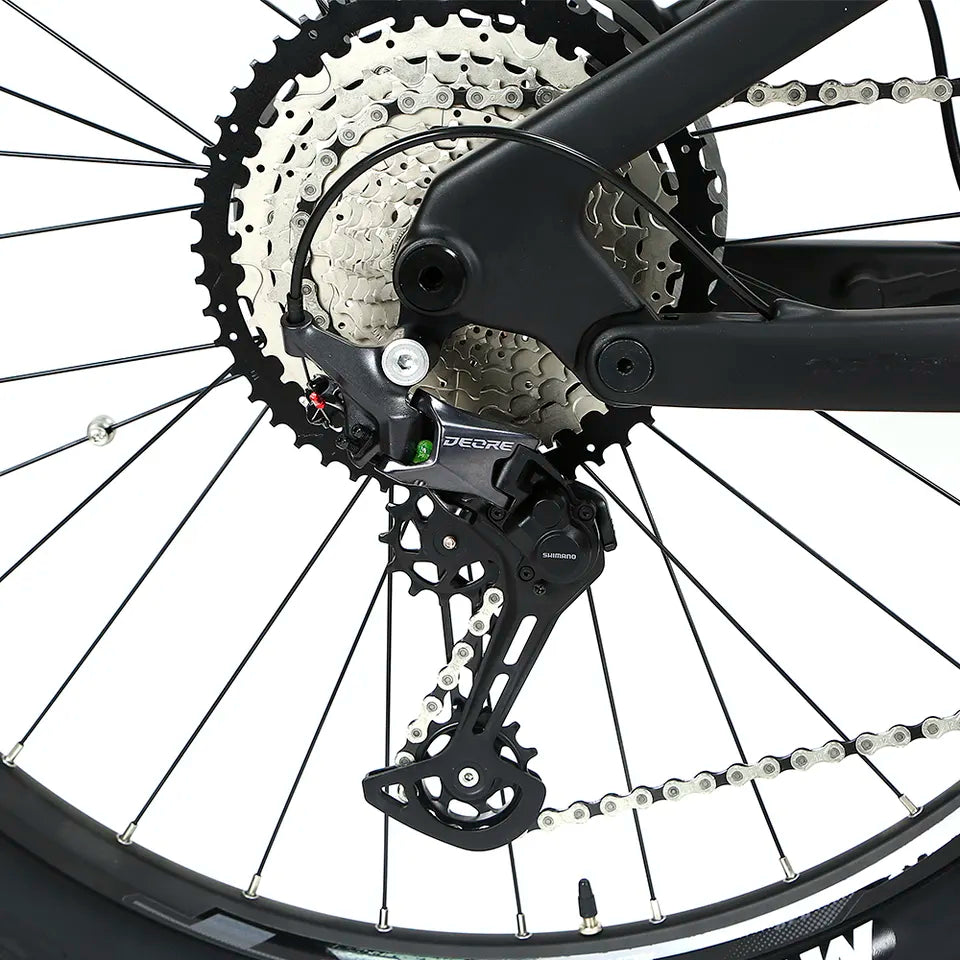

Variant 1 – LOW (Standard Mechanical)
Derailleur Lever: SHIMANO DEORE/M6100-12S
Rear Derailleur: SHIMANO DEORE/M6100-12S
Fork: RS, MgAl alloy, Air, Manual, 150, Thru-axle 15*110

Variant 2 – HIGH (Premium Mechanical)

Derailleur Lever: SHIMANO DEORE/M6100-12S
Rear Derailleur: SHIMANO DEORE/M6100-12S
Variant 3 – WIRELESS (Electronic Shifting)
Derailleur Lever: Wheeltop EDS OX-12S wireless
Rear Derailleur: Wheeltop EDS OX-12S wireless
All variants share:
Cranksets: Matching with Mid Motor, 38T

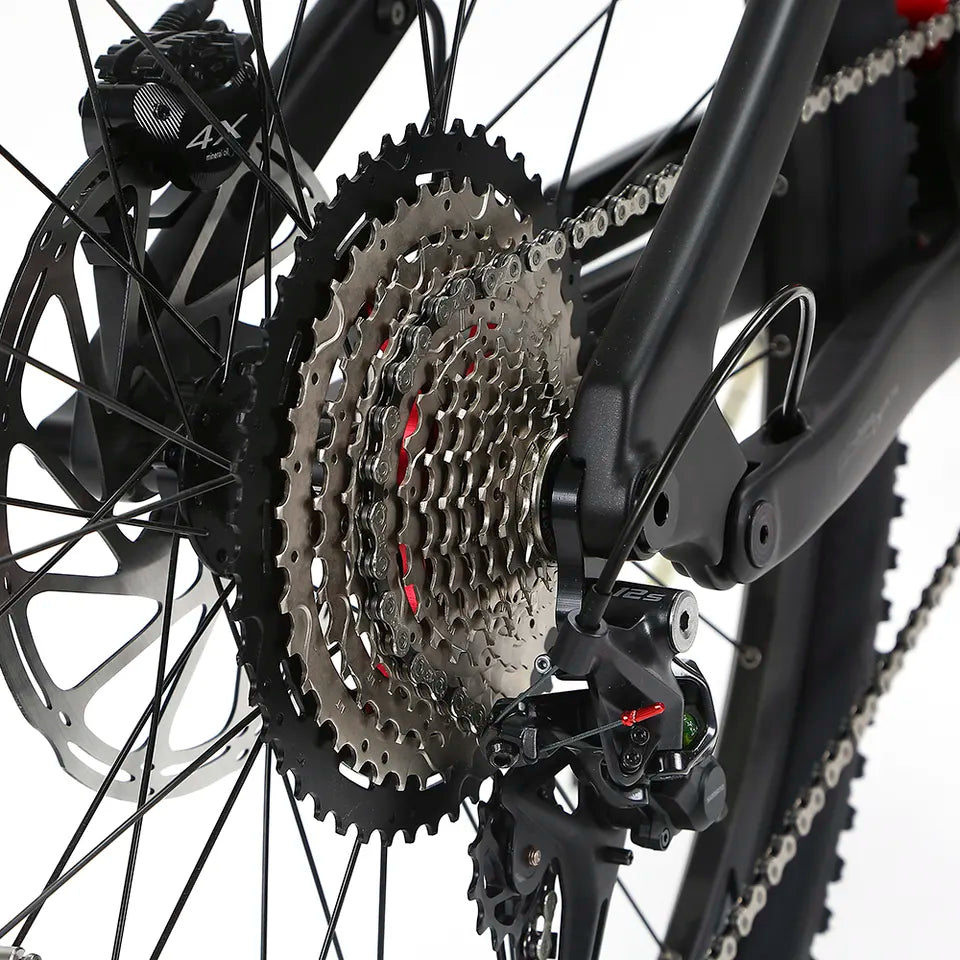

Cassettes: 12S, 11-50T
Chain: 12S

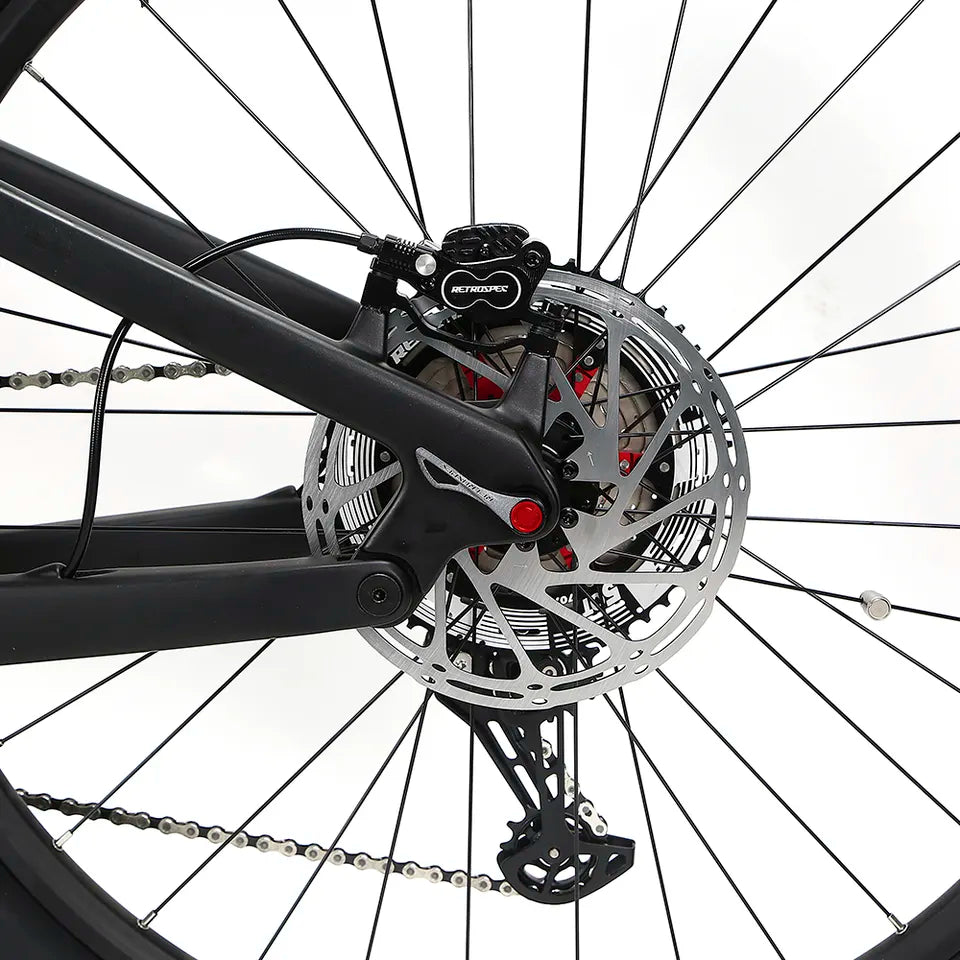

Braking System

Brake: hydraulic disc, 203/203mm, providing superior stopping power and control.

Wheelset & Tires

Hub: RS, Alu alloy, 4-sealed Bearings, HG, Disc, 32Holes, Thru-axle F15×110_R12×148mm Boost
Rim: RS, Alu alloy with Double-wall&Rivets, W30×H21mm
Spoke: Circular 14G
Tire: 29/27.5×2.4"

Additional Components

Grips: Circular 22.2×120mm, PU leather&locking Ring
Saddle: RS, Comfortable and Thickened for MTB
Pedals: RS, Alu alloy&Skid resistant for MTB

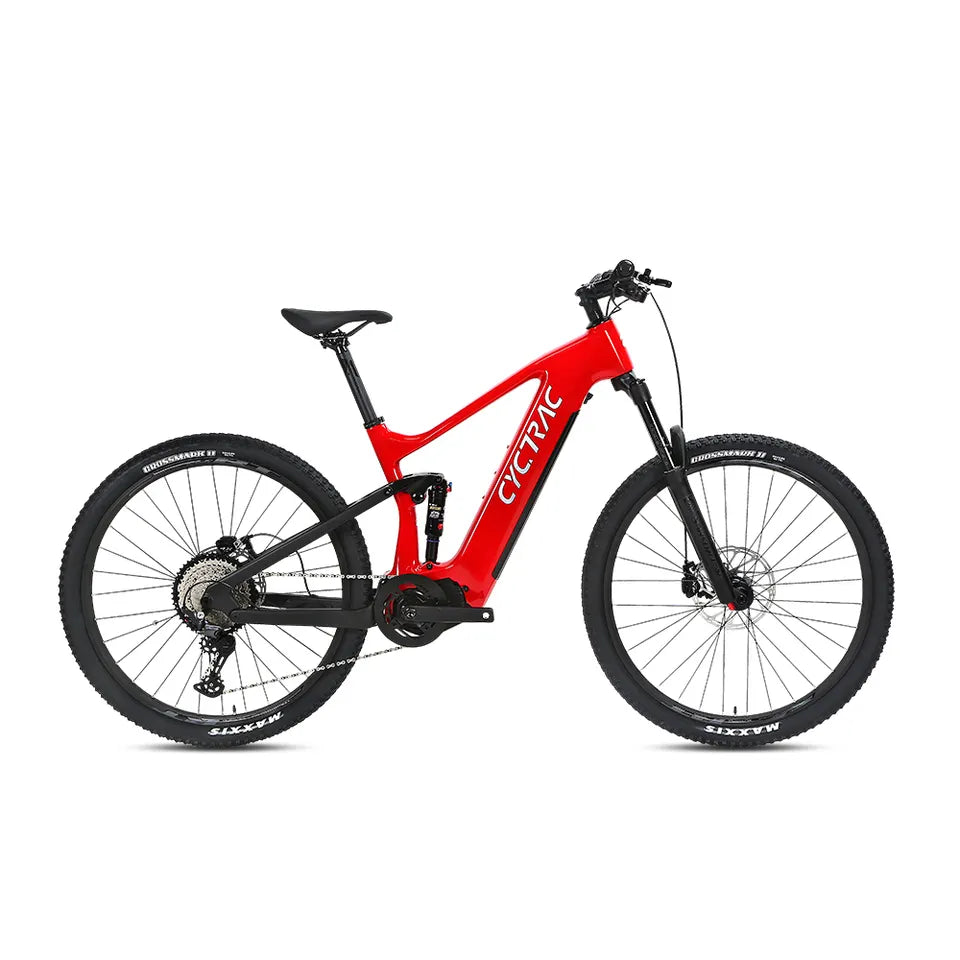

CYCTRAC EM10 is a high-performance carbon full-suspension e-MTB built for aggressive trail and all-mountain riding. Its lightweight high-modulus carbon frame delivers 140mm of rear travel paired with 150mm air suspension up front. Riders can choose from Bafang’s efficient M510 or powerful M560 mid-drive systems, paired with a 720Wh Samsung battery for up to 110–140 km of assisted riding. Equipped with Shimano M6100 12-speed shifting, TEKTRO M535 four-piston brakes, and MAXXIS tires, the EM10 offers a responsive, capable, and confident ride across technical terrain.

Geometry

Cyctrac EM10 Features

Why choose this bike

Holographic Black

Carbon AM Frame

High-modulus carbon design with 140mm rear travel engineered for all-mountain performance.

High-modulus carbon design with 140mm rear travel engineered for all-mountain performance.

150mm Front Travel

RS or ROCKSHOX RECON air suspension gives responsive control for aggressive trail riding.

RS or ROCKSHOX RECON air suspension gives responsive control for aggressive trail riding.

12-Speed System

Shimano M6100 shifting provides smooth, reliable gear changes across all terrain types.

Shimano M6100 shifting provides smooth, reliable gear changes across all terrain types.

4-Piston Brakes

TEKTRO M535 brakes deliver strong, consistent stopping power on steep descents.

TEKTRO M535 brakes deliver strong, consistent stopping power on steep descents.

Boost Wheelset

RS hubs and double-wall rims offer durability and stability with MAXXIS 2.25" tires.

RS hubs and double-wall rims offer durability and stability with MAXXIS 2.25" tires.

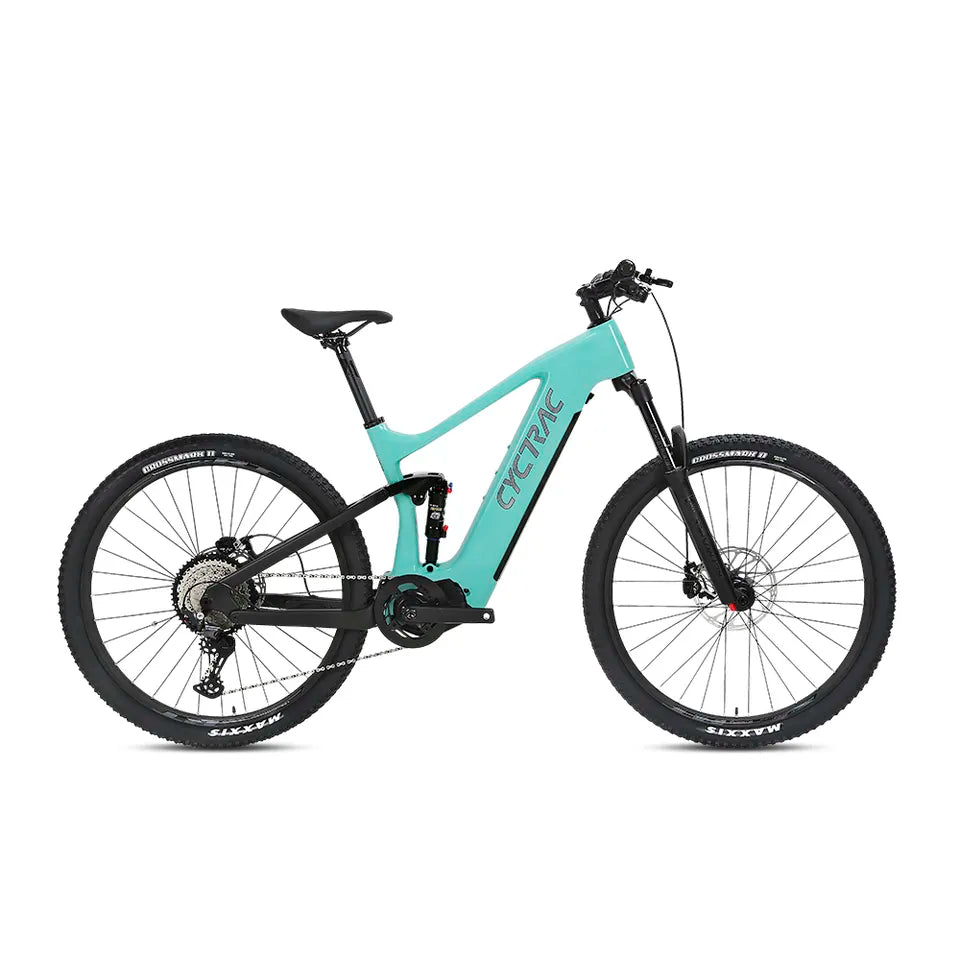

Color Options

Choose from Dark Green, Dark Gray, Red, Sky Blue, or Holographic Black.

Choose from Dark Green, Dark Gray, Red, Sky Blue, or Holographic Black.

Carbon Frame & Suspension

Drivetrain & Control

Learn how the carbon frame, 140mm rear travel, and 12-speed drivetrain provide precise handling and smooth performance on technical terrain.

EM10 Overview

Motor & Battery System

Discover how the EM10’s Bafang mid-drive motors and 720Wh Samsung battery combine to deliver powerful assistance and long-distance trail capability.

Geometry Chart

Model Type Subtype Size Ideal Height (cm) Leg Seam (cm) Arm Length (cm) Seat Tube C-T (mm) Seat Angle (°) Chainstay (mm) Stack (mm) Trail (mm) BB Height (mm) BB Drop (mm) Front Center (mm) Fork Length (A2C) (mm) Head Tube (mm) Effective Top Tube (mm) Reach (mm) Head Angle (°) Fork Rake (mm) Seat Tube Effective (mm) Wheelbase (mm)
EM10 Full Suspension 27.5 16" (27.5") 160–175 74–83 57–63 406 69.5 469 628.4 101 310 35 741.1 382.2 120 555.1 432.9 67 44 455 1208.1
EM10 Full Suspension 27.5 18" (27.5") 170–185 78–87 60–66 457 69.5 469 633.4 102 310 35 778.1 382.2 130 579.1 454.9 66 44 505 1245.1
EM10 Full Suspension 29 16" (29") 165–175 75–84 58–64 406 69.5 469 628.4 108 320 35 768.1 402.2 120 555.1 432.9 67 51 455 1235.1
EM10 Full Suspension 29 18" (29") 175–190 78–87 60–66 457 69.5 469 633.4 109 320 35 805.1 402.2 130 579.1 454.9 66 51 505 1272.1
