EM5 - 2RD - Cyctrac Alloy Electric Mountain Bike

EM5 2025 - SHIMANO DEORE 12 Speed - M510/M560 CYCTRAC eMTB - Bike Size (Wheel*Frame): S (27.5"*16") - Color: Dark Green

Twitter Electric

EM5 - 2RD - Cyctrac Alloy Electric Mountain Bike

$2,120.00

Color: Black

Bicycle features: Normal

Normal Remap

Configurations: Shimano deore m6100-12 speed / m510 high (36v250w)

SHIMANO DEORE M6100-12 Speed / M510 HIGH (36V250W) SHIMANO DEORE M6100-12 Speed / M560 (48V500W) Wheeltop EDS OX-12 Speed (Wireless)/ M560 High (48V500W)

Product variants

Quantity

Secured checkout

Specification

Key Components

Specification	Detail
Bike Model	EM5 - 2rd
Frame Size	29(27.5)×14" / 16" / 18"
Bike Color	Black / DarkGray / DarkGreen
Net Weight	Varies from 22.3 KG to 22.9 KG (depending on configuration)
Max Load	130 KG

Frame & Structure

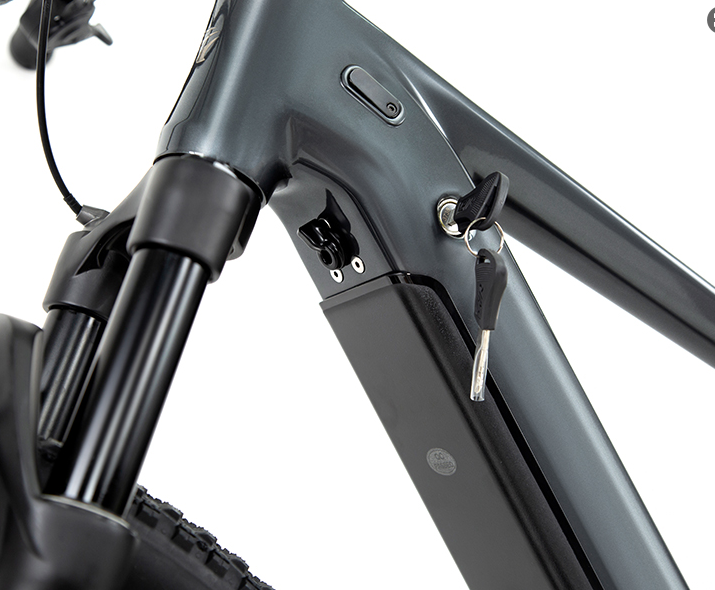

•Frame: CYCTRAC-EM5, Alu alloy AL7005, Flat weld & Smooth, Inner cables, Thru-axle 12*148 Boost, UDH tail hook

•Fork: RS, MgAl alloy, Air, Remote, Thru-axle 15*110 (or ROCKSHOX-JUDYS in top variant)

•Head Sets: Alu alloy CNC with sealed Bearings 52*52mm

•Handelbar Sets: RS, Alu alloy, Matte, Handlebar 31.8×720, Stem 80mm, Seat post 31.6×350mm, Clamps 34.9mm QR

Motor System & Battery

Specification	M510 Variant	M560 Variants

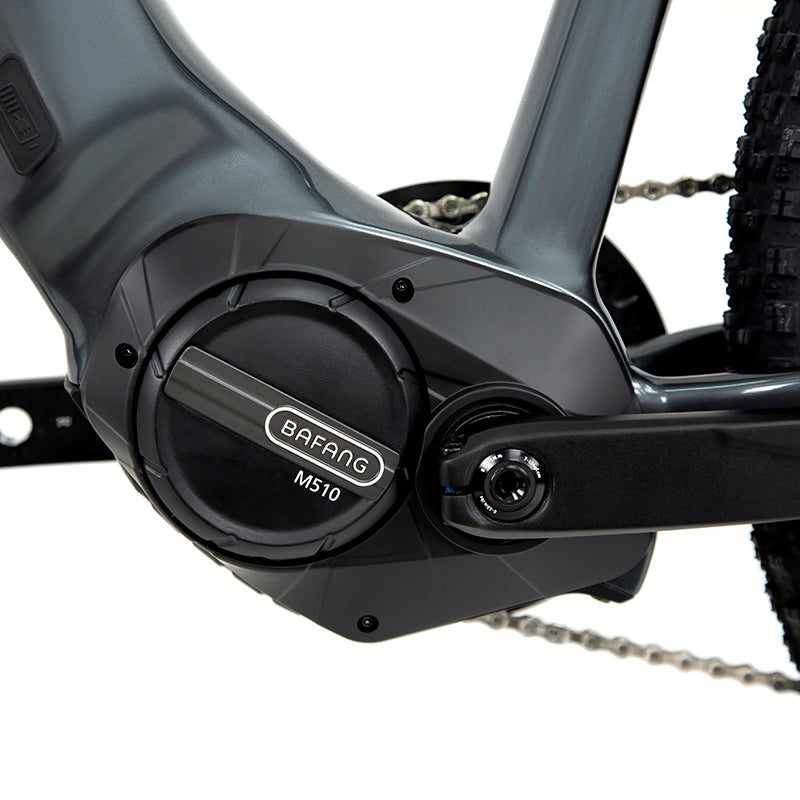

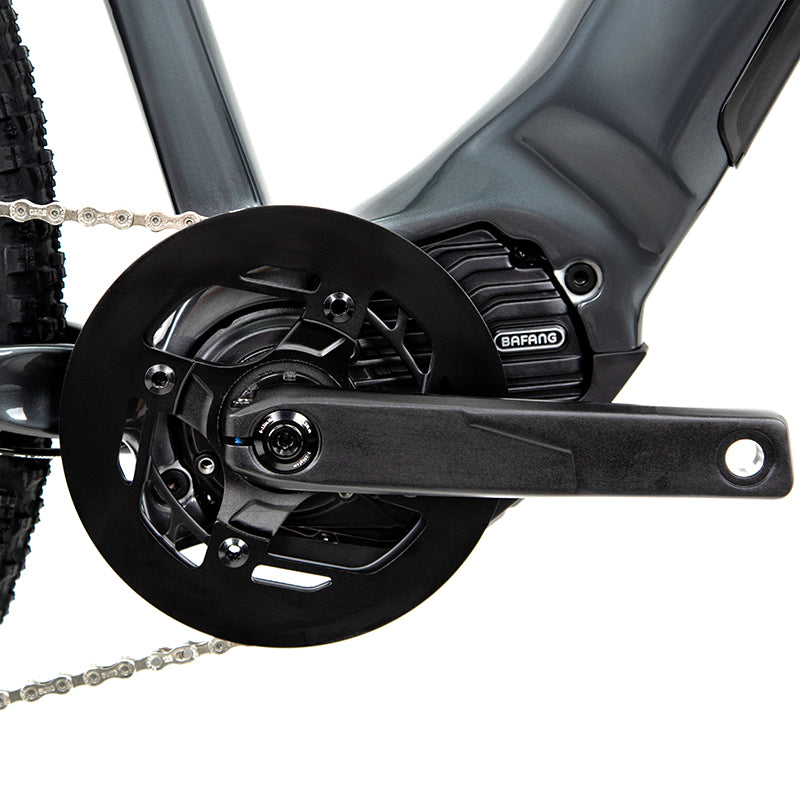

Motor System	Bafang Mid, M510, 36V250W (48V250W)	Bafang Mid, M560, 48V500W
Max Torque	95 N.m (Peak 130N.m)	130 N.m (Peak 150N.m)

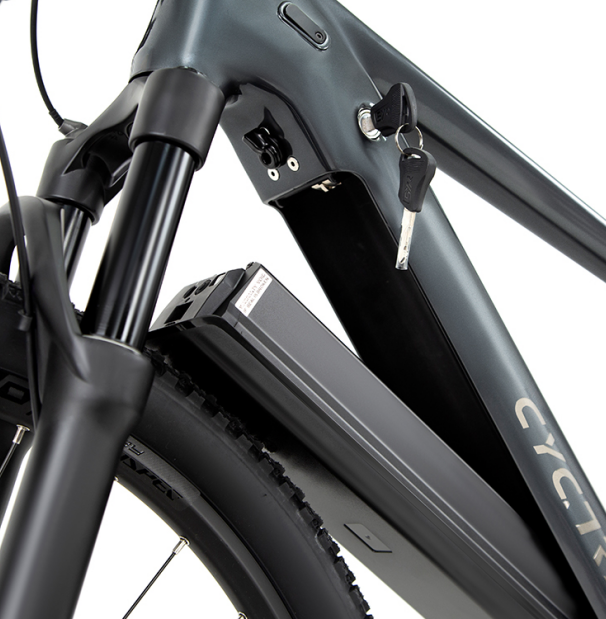

Battery	Samsung 21700 Li-ion, 720Wh, 36V20A (48V15A)	Samsung 21700 Li-ion, 720Wh, 48V15A
Endurance (Pedal Assist)	Max 130-150 KM	Max 120-140 KM
Charging Time	6-7 Hours	6-7 Hours

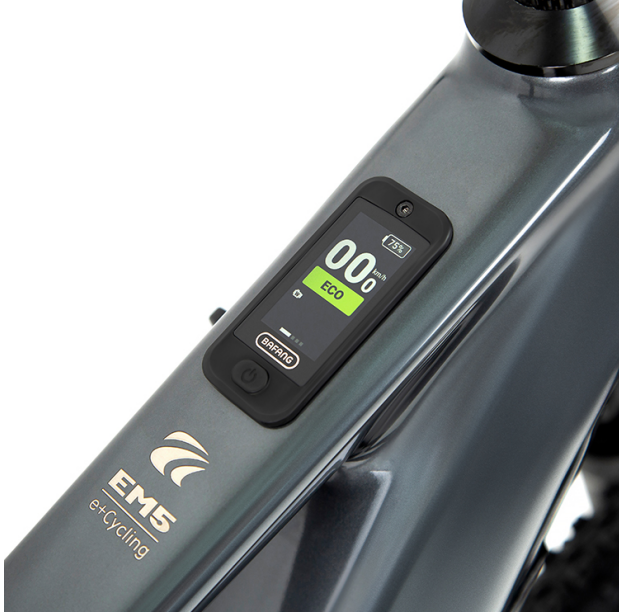

HMI	Bafang-C030, LCD digital (Built in Top tube)	Bafang-C030, LCD digital (Built in Top tube)
Waterproof	IP X6	IP X6
Pedal Sensor	Torque + Speed (cadence)	Torque + Speed (cadence)
Speed Limit	25KMh Default (max 45KMh)	25KMh Default (max 45KMh)

Drivetrain Options (ConfRev)

Variant 1 – M510 (Entry-Level)

•Derailleur Lever: SHIMANO DEORE/M6100-12S

•Rear Derailleur: SHIMANO DEORE/M6100-12S

•Fork: RS, MgAl alloy, Air, Remote, Thru-axle 15*110

Variant 2 – M560 (Standard)

•Derailleur Lever: SHIMANO DEORE/M6100-12S

•Rear Derailleur: SHIMANO DEORE/M6100-12S

•Fork: RS, MgAl alloy, Air, Remote, Thru-axle 15*110

Variant 3 – M560 (Premium Wireless)

•Derailleur Lever: Wheeltop EDS OX-12S wireless

•Rear Derailleur: Wheeltop EDS OX-12S wireless

•Fork: ROCKSHOX-JUDYS, Air, Remote, Thru-axle 15*110

All variants share:

•Cranksets: Matching with Mid Motor, 38T

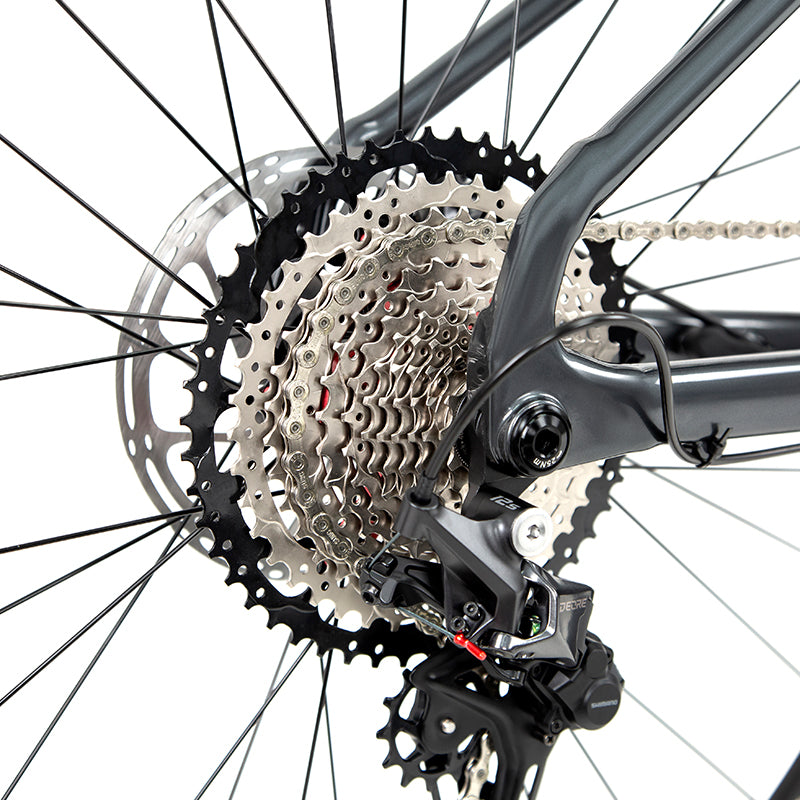

•Cassettes: 12S, 11-50T

•Chain: 12S

Wheelset & Tires

•Hub: RS, Alu alloy, 4-sealed Bearings, Slotted, Disc, 32Holes, Thru-axle F15×110_R12×148mm Boost

•Rim: RS, Alu alloy with Double-wall & Rivets, W25×H21mm

•Spoke: SHUNJIU, Circular 14G

•Tire: 29/27.5×2.25"

Braking System

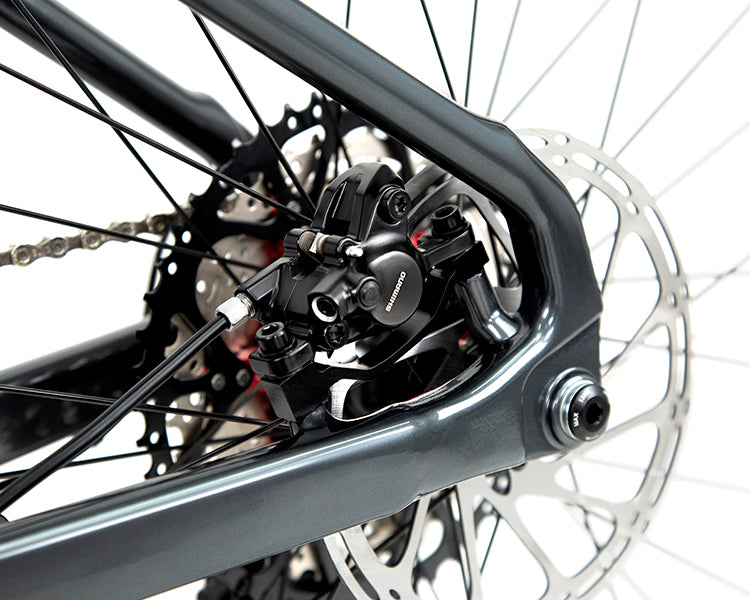

•Brake: SHIMANO MT200 hydraulic disc brake, 180/180mm (Standard on all variants)

Additional Components

•Grips: Circular 22.2×120mm, PU leather & locking Ring

•Saddle: RS, Comfortable and Thickened for MTB

•Pedals: RS, Alu alloy CNC with Bearings for MTB

Description

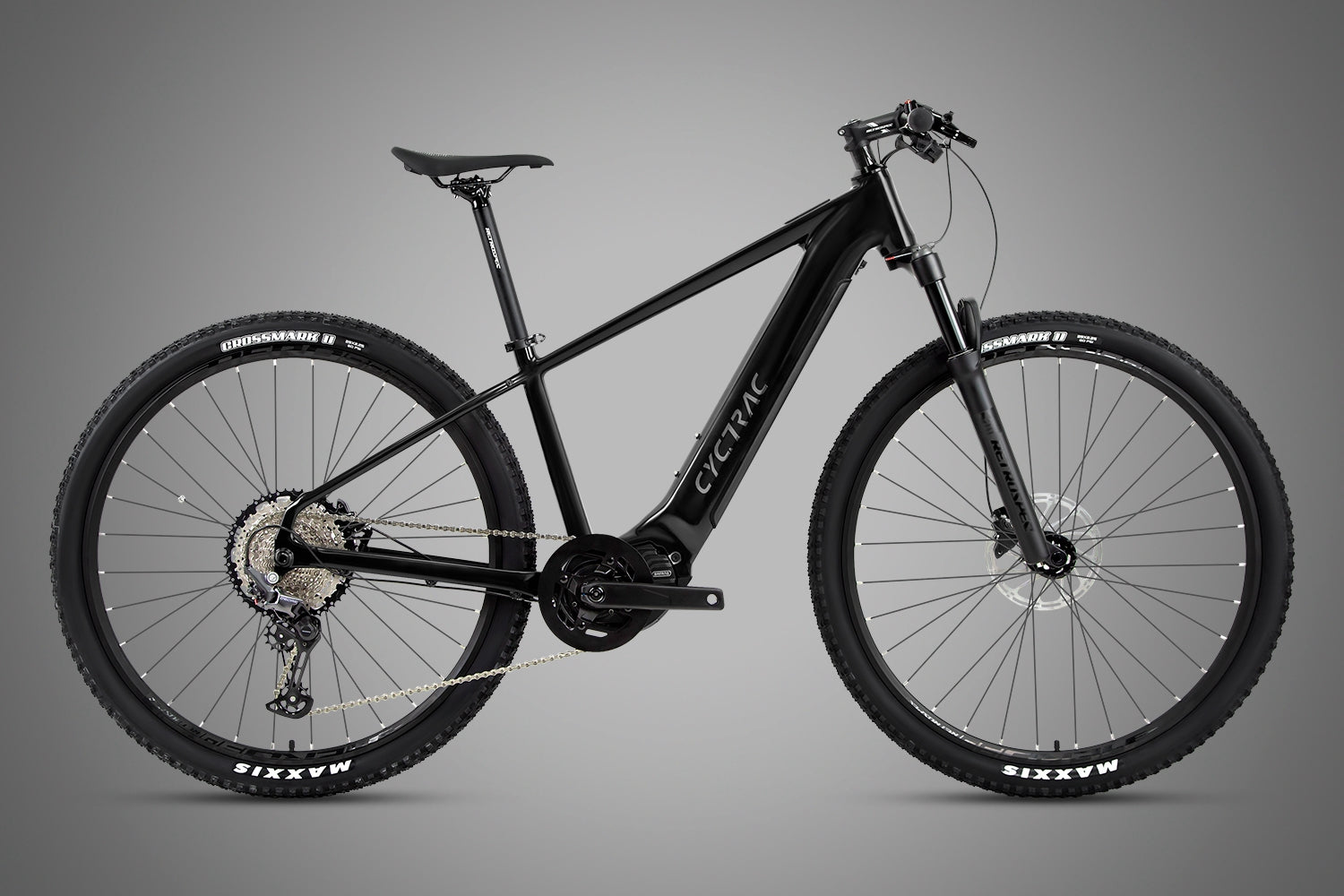

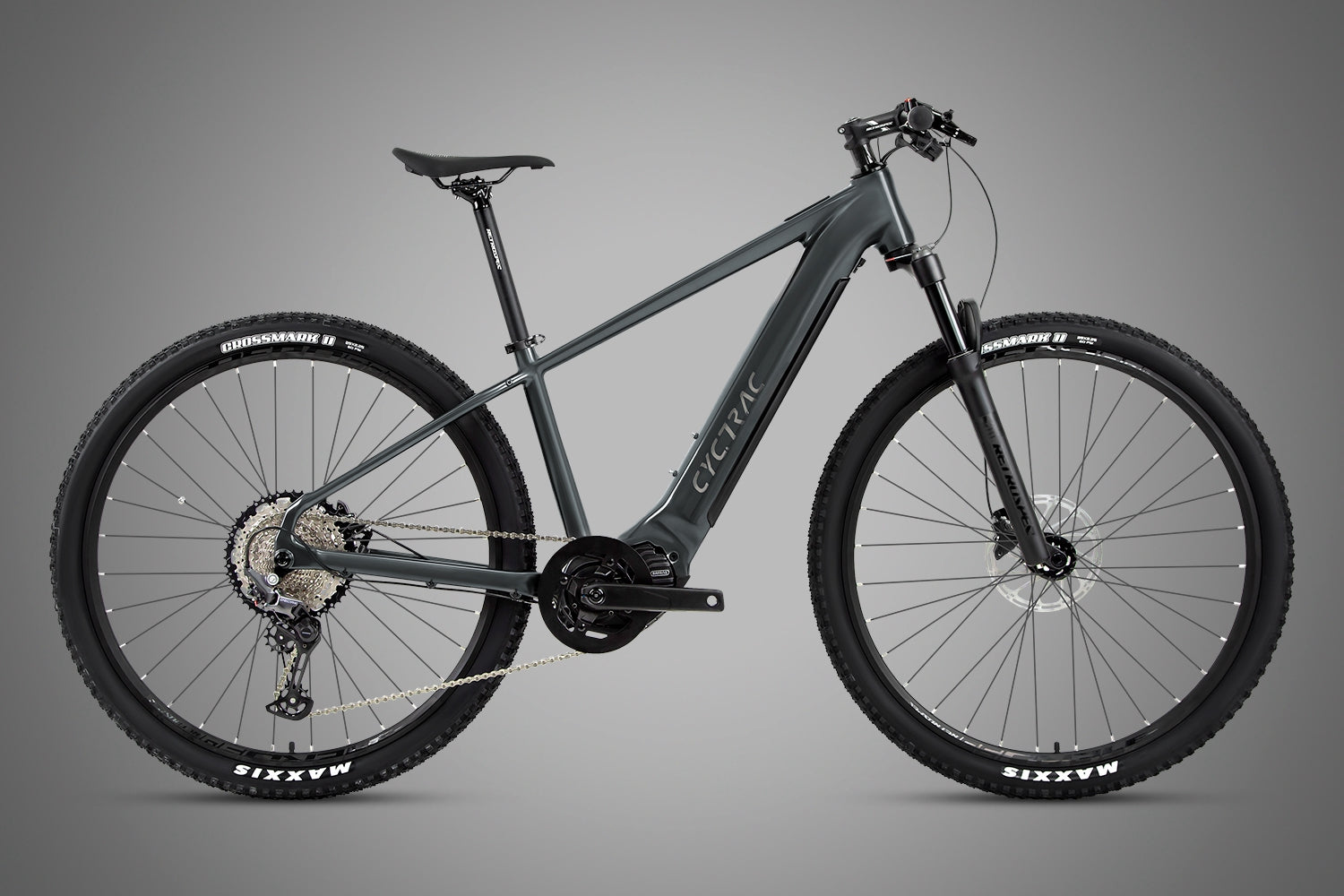

The EM5 (2nd Gen) is a versatile E-Mountain Bike Hardtail, engineered for cross-country and trail riding with a focus on power and efficiency. Built with a lightweight AL7005 Aluminum frame, the EM5 offers a choice between the high-performance Bafang M510 and the ultra-powerful Bafang M560 mid-drive motors, delivering a peak torque of up to 150 N.m. Paired with a massive 720Wh Samsung battery and a 12-speed drivetrain, the EM5 is designed to conquer any climb.

Geometry Image

EM5 - 2RD - Cyctrac Alloy E...

Black, Normal, SHIMANO DEORE M6100-12 Speed / M510 HIGH (36V250W)

$2,120.00

Cyctrac EM5 - 2RD Features

Why choose this bike

AL7005 Boost Frame

Lightweight, smooth-weld frame with internal routing and 12×148 Boost rear axle.

Air Fork Choices

Select between RS air forks or ROCKSHOX JUDY on the top variant.

Three Configurations

Choose Shimano M6100 or Wheeltop wireless 12-speed depending on the variant.

Hydraulic Brakes

Shimano MT200 braking with 180mm rotors.

Boost Wheelset

RS hubs and double-wall rims paired with MAXXIS 2.25" tires.

Color Options

Offered in Black, Dark Gray, and Dark Green.

Model	Type	Subtype	Size	Ideal Height	Leg Seam	Arm Length	Seat Tube C-T (mm)	Seat Angle	Chainstay (mm)	Stack (mm)	Trail (mm)	BB Height (mm)	BB Drop (mm)	Front Center (mm)	Fork Length (A2C) (mm)	Head Tube (mm)	Effective Top Tube (mm)	Reach (mm)	Head Angle	Fork Rake (mm)	Seat Tube Effective (mm)	Wheelbase (mm)
Cytrac EM5-2nd	eMTB	Full Suspension	14-inch	5'2"-5'7" (157-170cm)	27"-32" (69-81cm)	22"-25" (56-64cm)	360	78.5°	455	570	54	345	55	685	490	100	595	400	50.5°	44	440	1130
Cytrac EM5-2nd	eMTB	Full Suspension	16-inch	5'4"-5'9" (163-175cm)	28"-33" (71-84cm)	23"-26" (58-66cm)	410	78.5°	460	574	55	350	55	695.8	495	105	605	417.2	50.6°	45	450	1150.3
Cytrac EM5-2nd	eMTB	Full Suspension	18-inch	5'7"-6'1" (170-185cm)	30"-35" (76-89cm)	24"-27" (61-69cm)	460	78.5°	465	580	56	355	55	705	500	110	615	425	50.7°	45	460	1160
