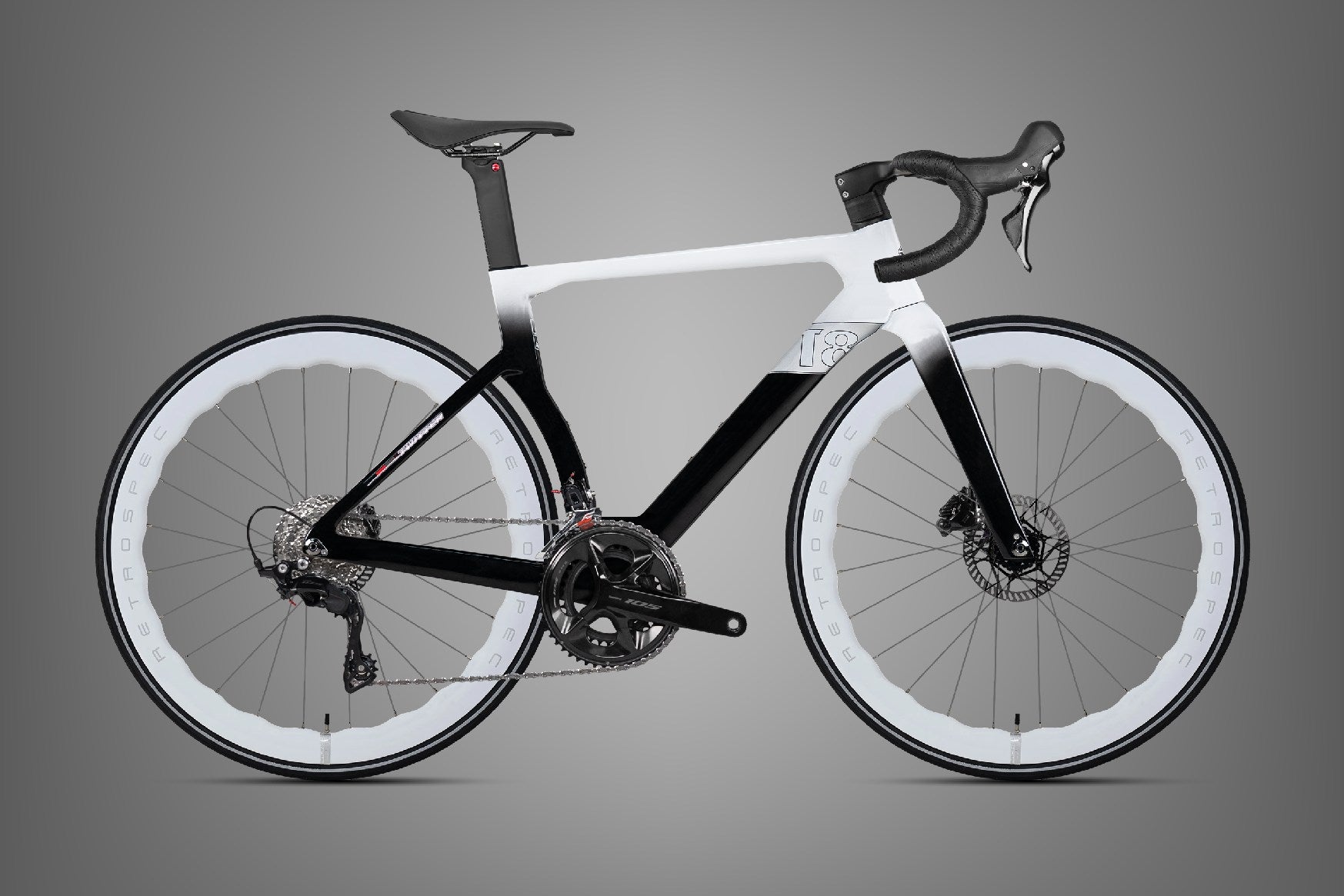

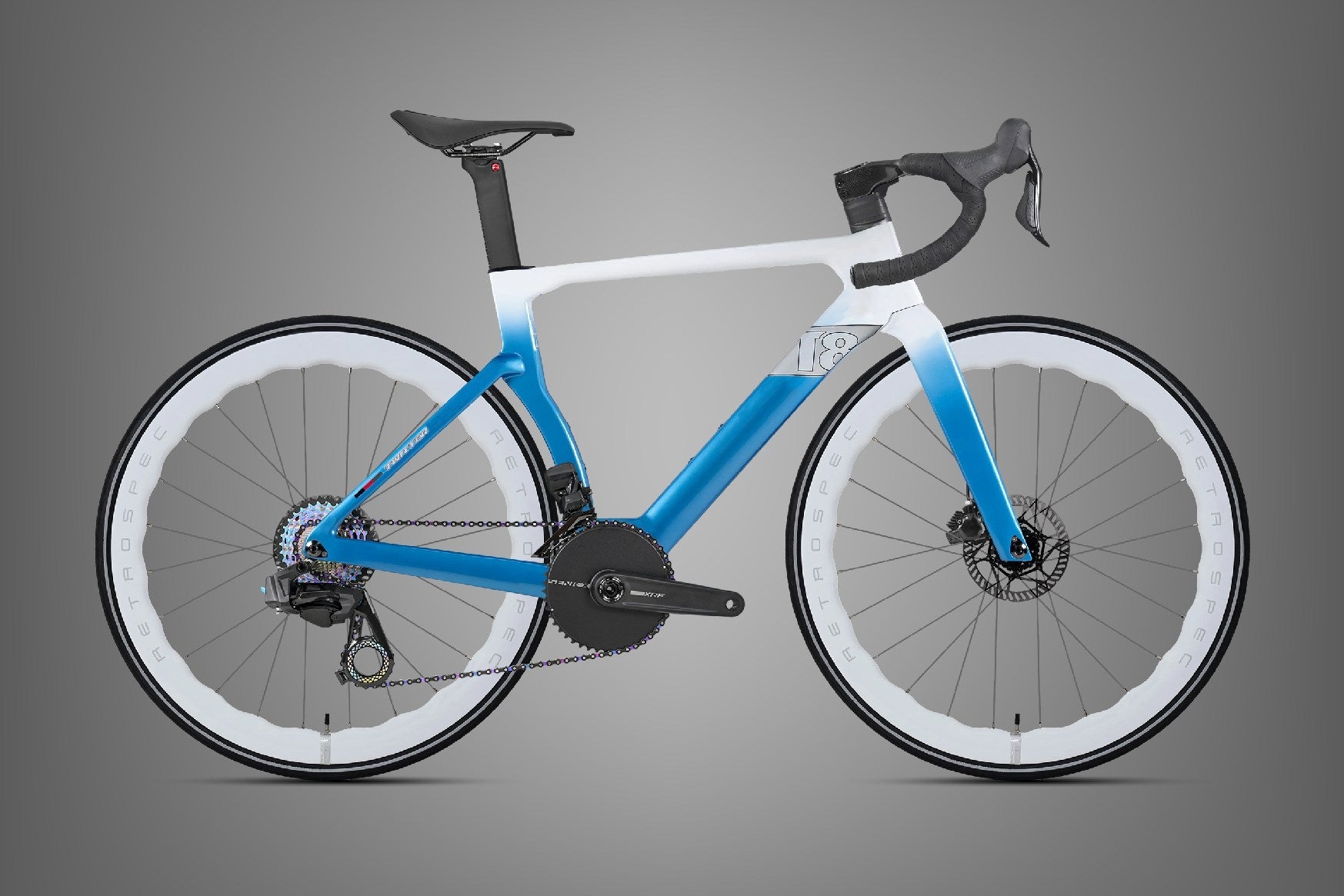

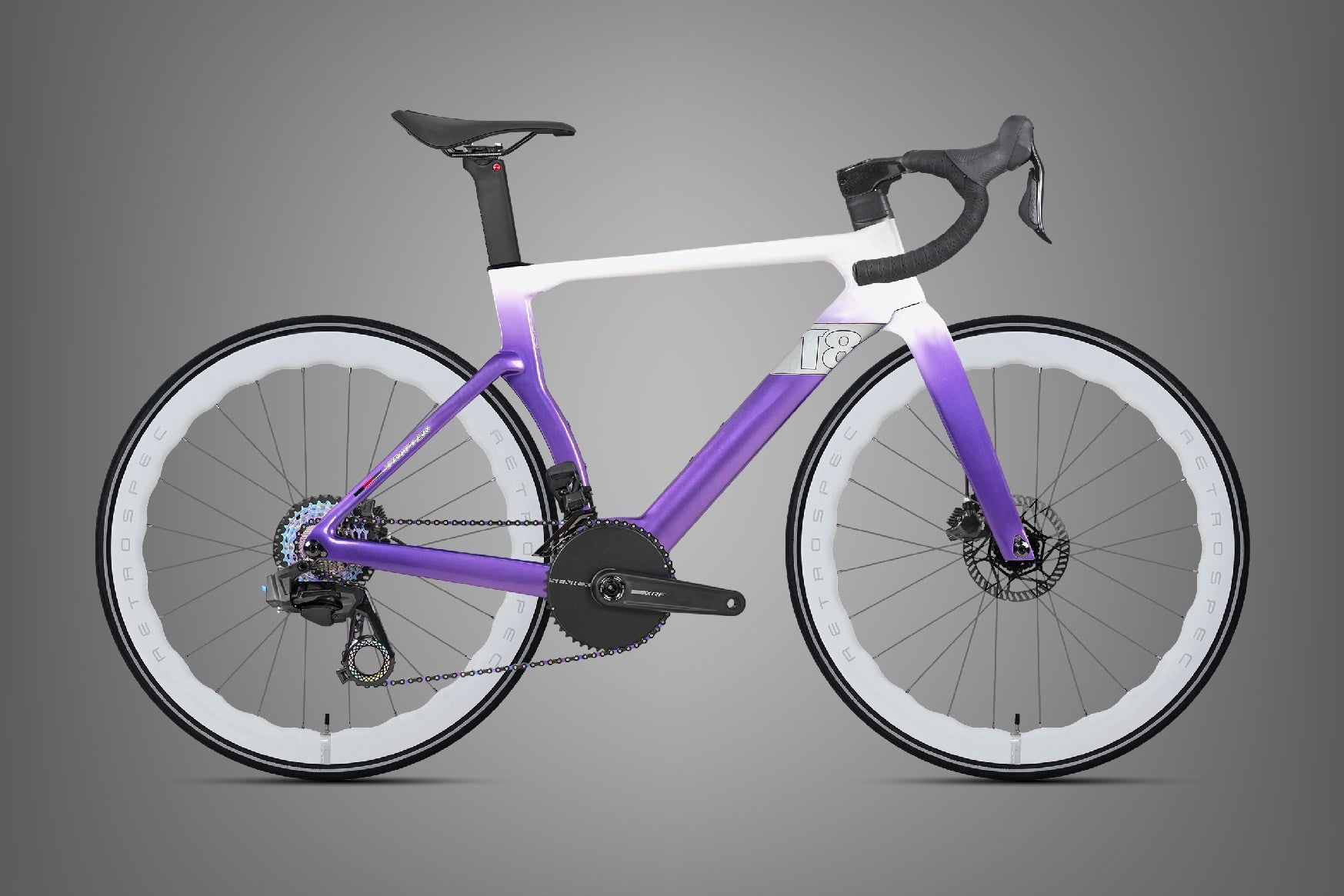

T8 Carbon Road Bike

Specification

Key Components

• Wheel Size: 700C.

• Frame Size: multiples sizes available

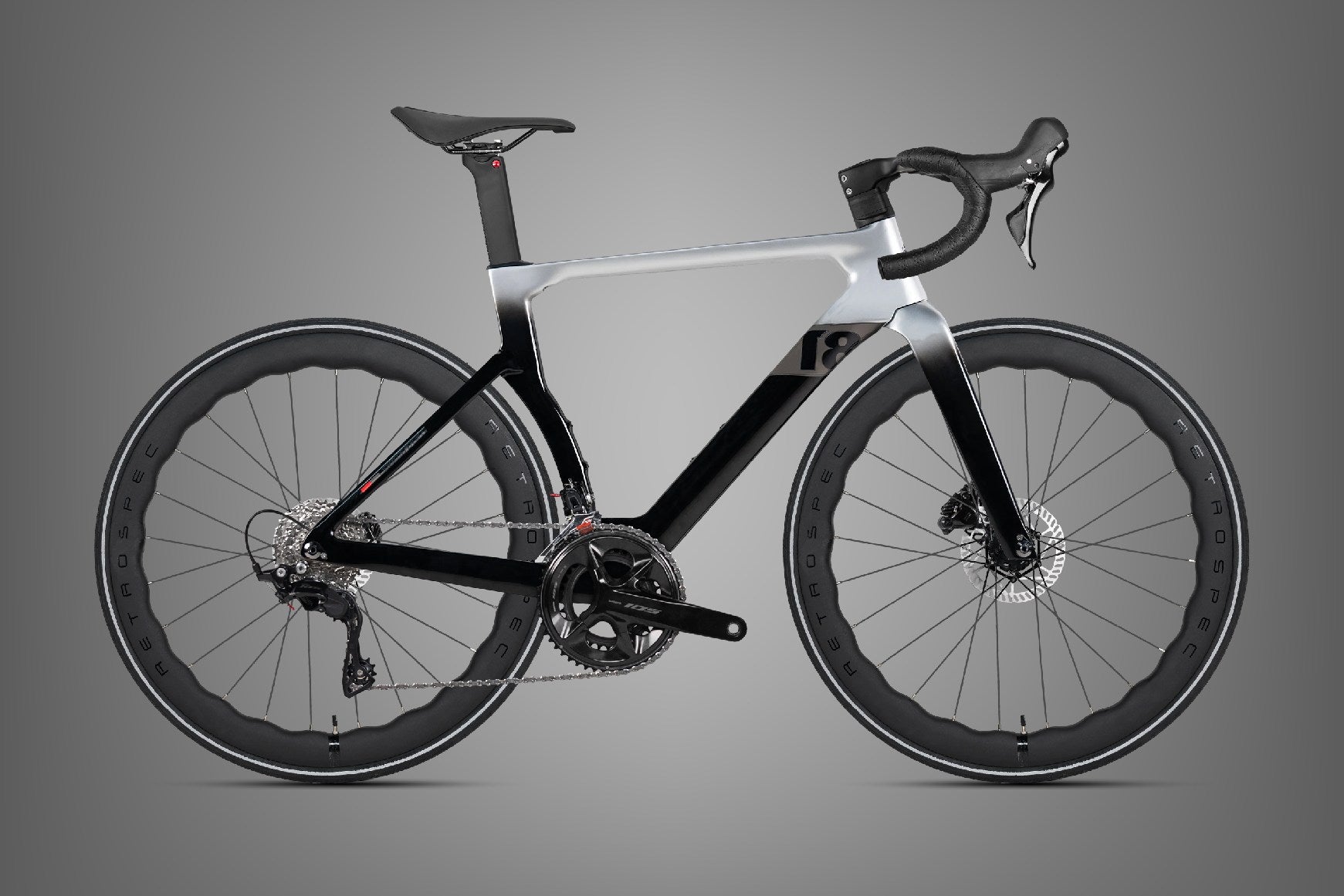

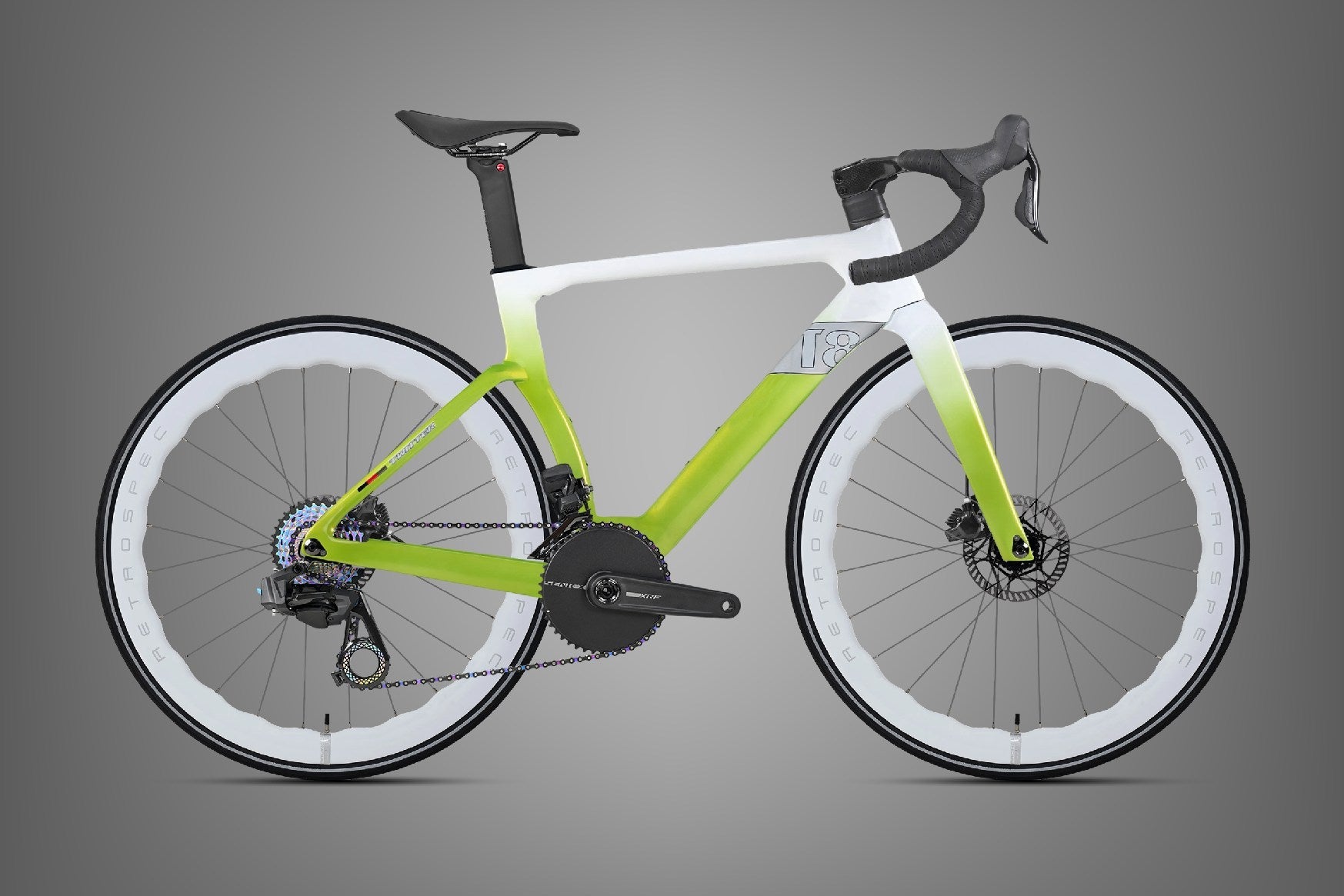

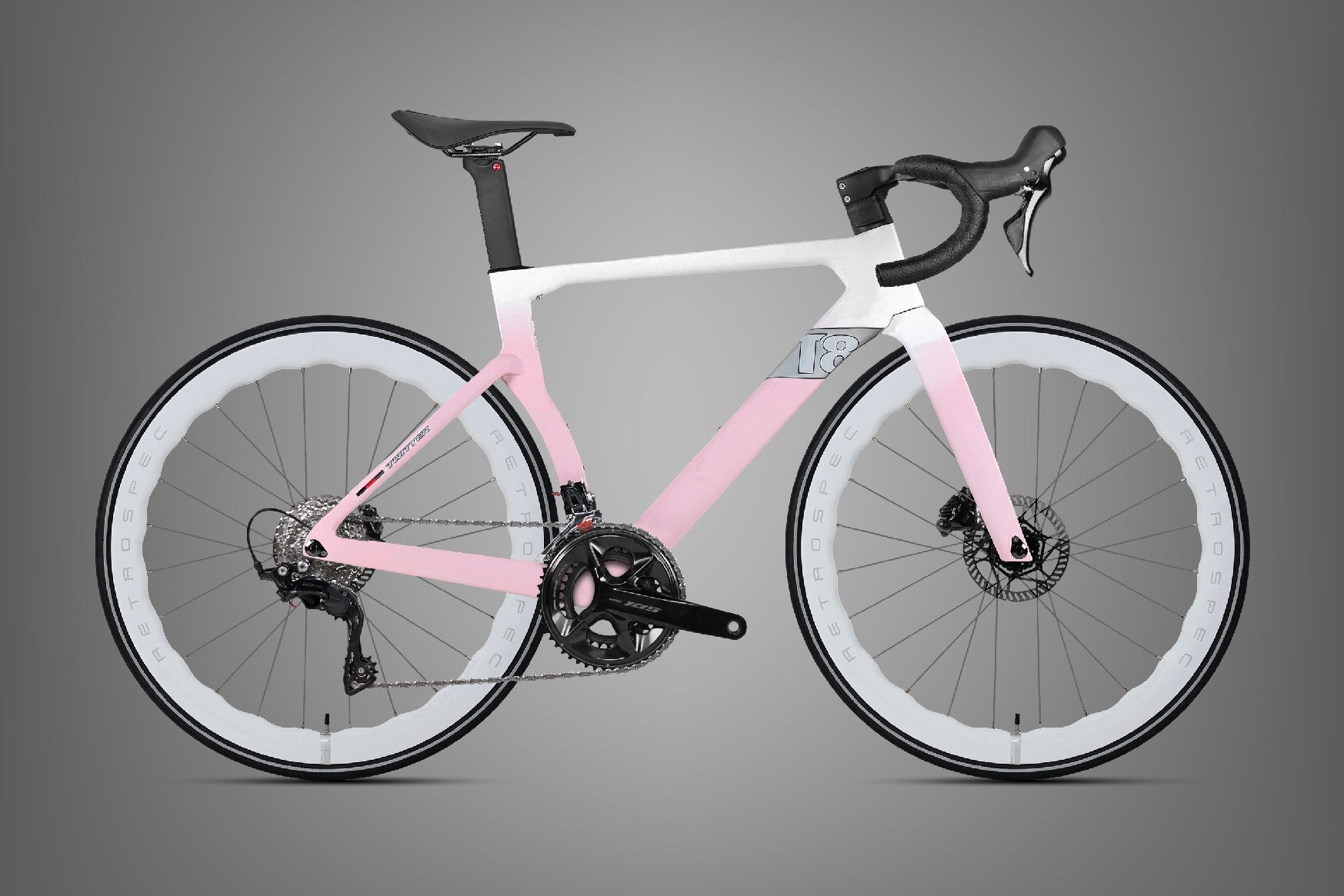

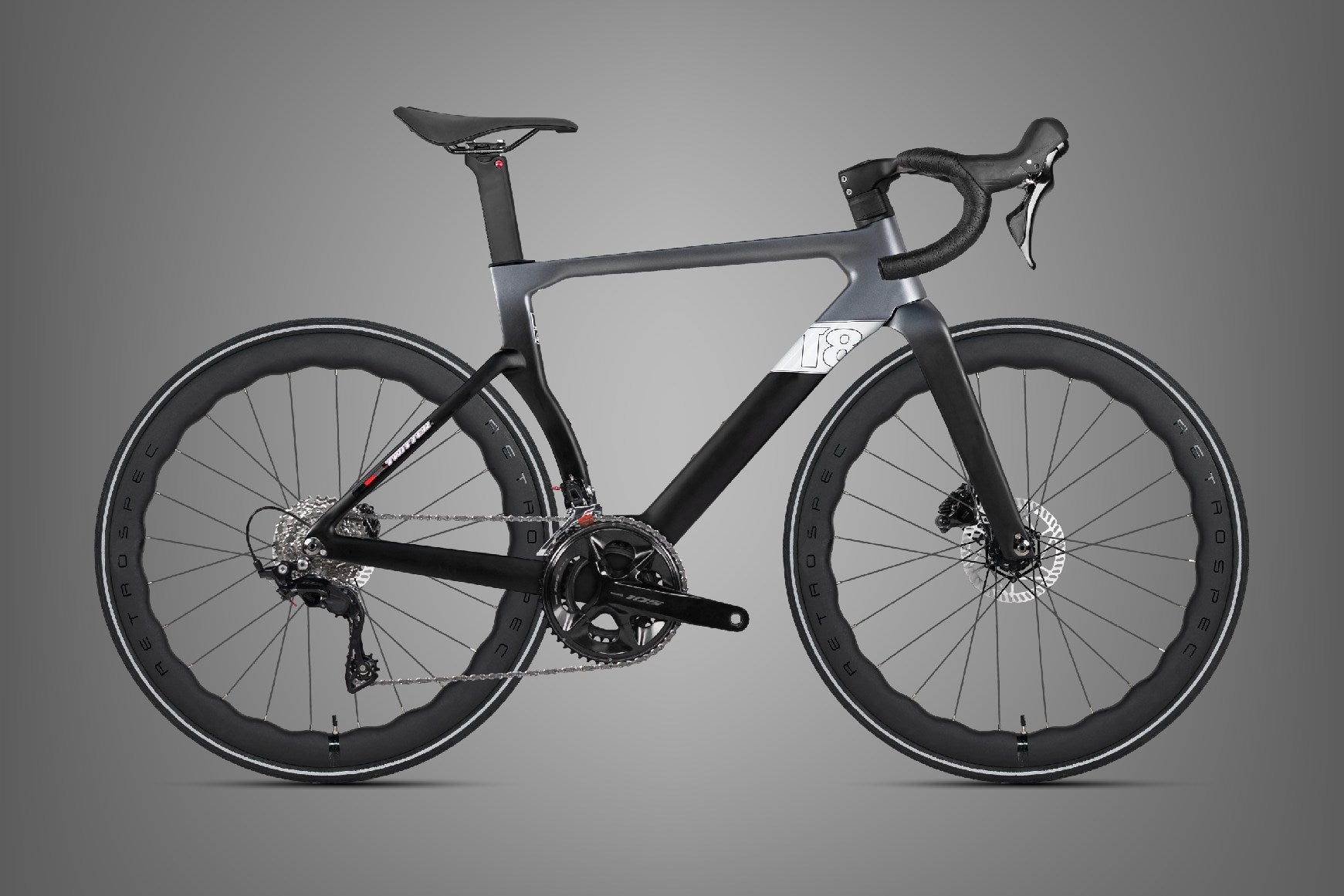

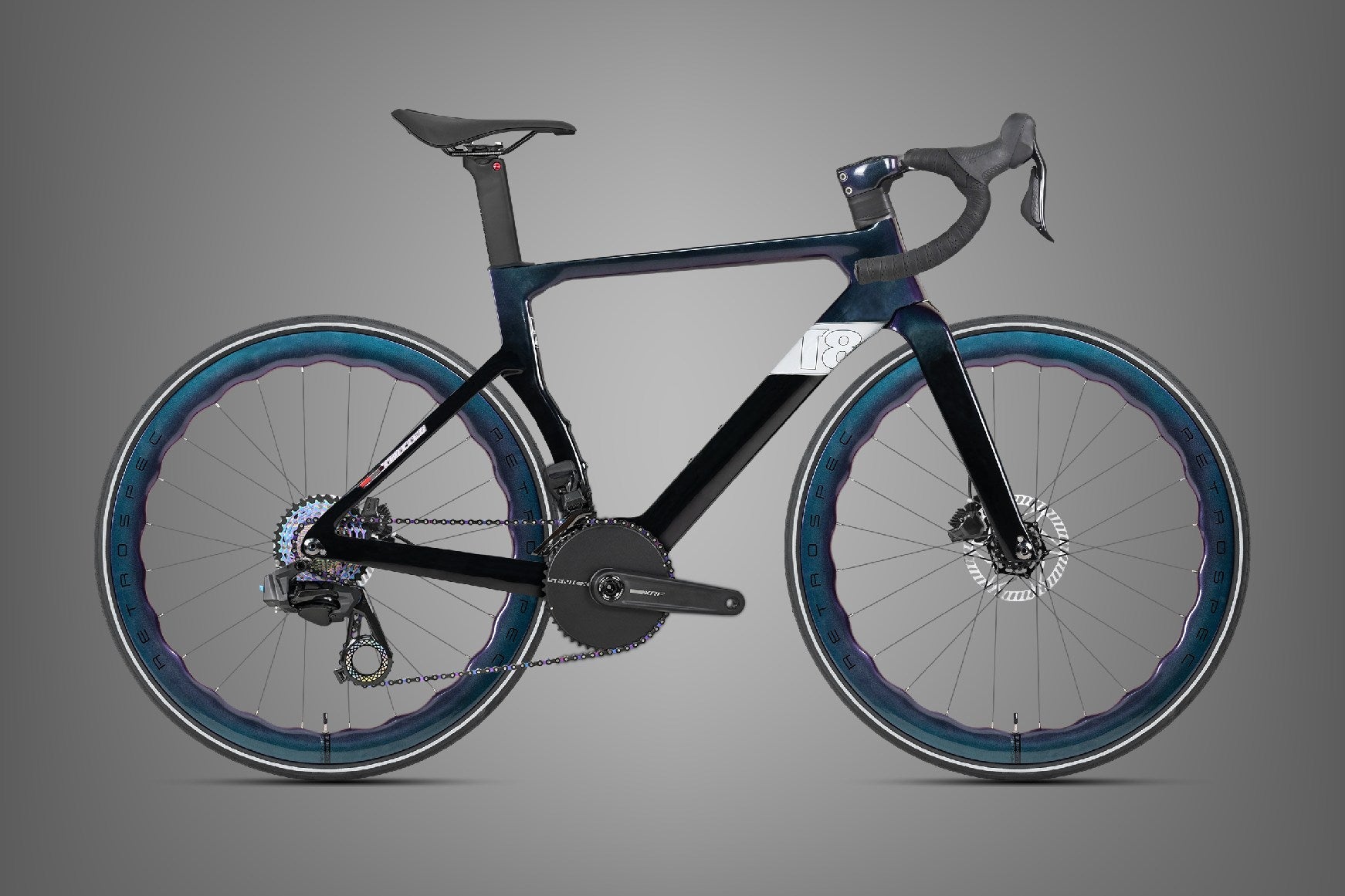

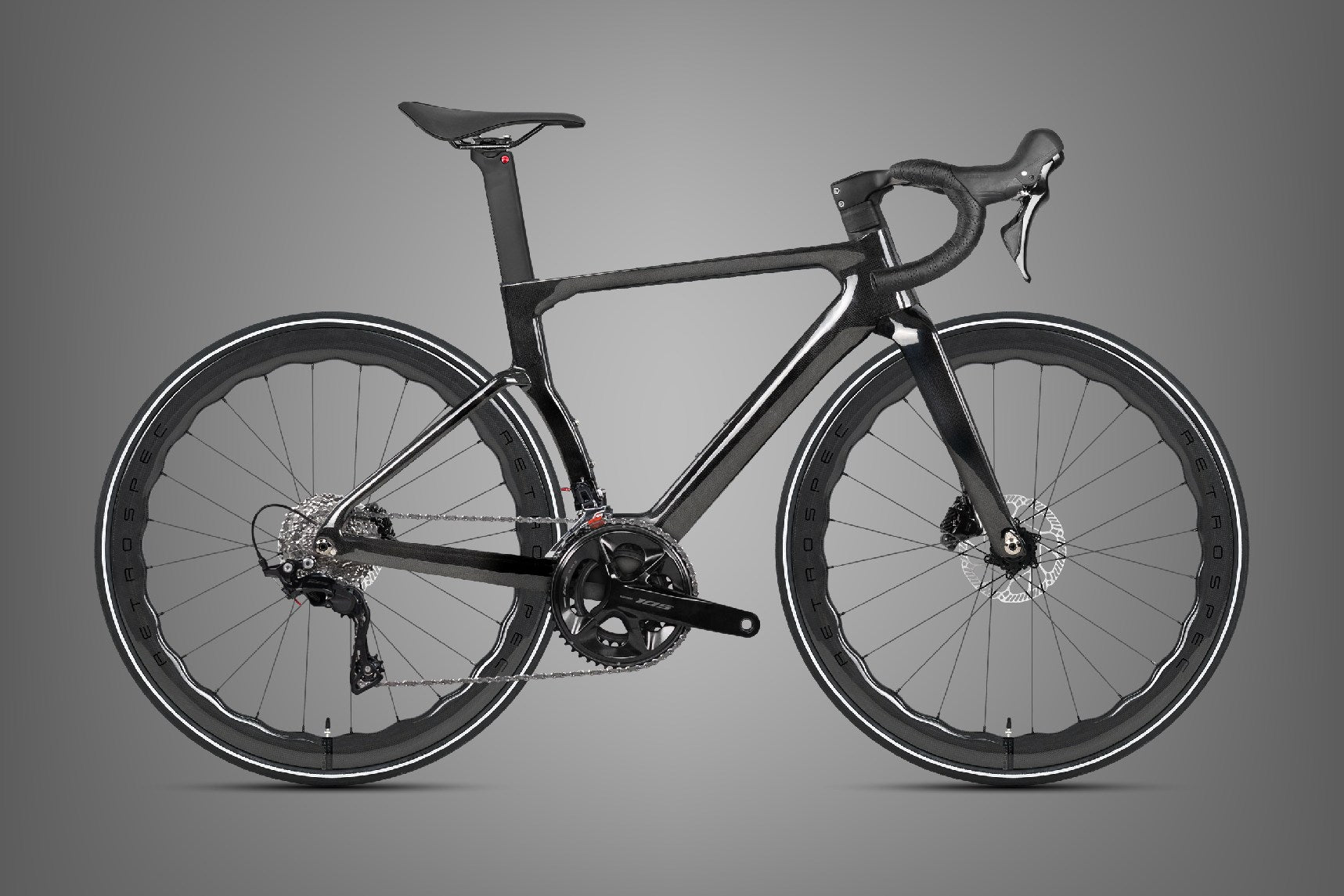

• Bike Color: Multiples colors available

• Net Weight: 8.8 kg – 9.3 kg (varies by configuration).

Frame & Structure

• Frame: T8 (Disc & thru-axle 12×142), high modulus Carbon fiber, Aero-Racing design, full inner-cable routing, Gloss or Matte finish, UV decals.

• Fork: T8 (Disc & thru-axle 12×100), high modulus Carbon fiber, Road Bike Rigid Fork.

• Handlebar Set: TW, High modulus Carbon fiber, Aero Integrated Handlebar & Stem, full inner-cable routing.

• Seat Post: High modulus Carbon fiber, Aero-Racing profile.

• Clamps: Hidden Screw Fit to Frame.

• Head Set: Alu alloy CNC with sealed-bearings (52×52mm).

• Bottom Bracket: DUB Thread T47×29mm, hollow & sealed bearings.

Drivetrain Options

Variant 1 – WheelTop EDS TX 28-Speed Wireless Electronic (Carbon Wave Rim)

• System: WheelTop EDS TX Wireless Electronic 2×14-speed.

• Shifters: WheelTop EDS TX Wireless Electronic Shift Lever.

• Front Derailleur: WheelTop EDS TX Wireless Electronic Shift - 2 Speeds.

• Rear Derailleur: WheelTop EDS TX Wireless Electronic Shift - 14 Speeds.

• Crankset: TW Alu alloy 7075-DUB Hollow, Gear Ratio: 34-50T.

• Cassette: CNC Hollow Integrated Colorful Cassette - 14 Speeds, 10-36T.

• Chain: SUMC-14 Speeds, Black Colorful Design.

• Brakes: WheelTop Flat Mount Full Hydraulic Disc Brakes, 160/160mm.

Variant 2 – WheelTop EDS TX 24-Speed Wireless Electronic (Carbon Wave Rim)

• System: WheelTop EDS TX Wireless Electronic 2×12-speed.

• Shifters: WheelTop EDS TX Wireless Electronic Shift Lever.

• Rear Derailleur: WheelTop EDS TX Wireless Electronic Shift - 12 Speeds.

• Cassette: SUGEK-12 Speed, 11-32T, Colorful.

• Chain: SUMC-12 Speed, Black Colorful.

• Brakes: WheelTop Flat Mount Full Hydraulic Disc Brakes, 160/160mm.

Variant 3 – SHIMANO 105 R7120 Mechanical 24-Speed (Carbon Wave Rim)

• System: SHIMANO 105 R7120, 2×12-speed.

• Shifters: SHIMANO 105 R7120 - 2×12S.

• Front Derailleur: SHIMANO 105 R7100 - 2S.

• Rear Derailleur: SHIMANO 105 R7100 - 12S.

• Crankset: SHIMANO 105 R7100, 34-50T.

• Cassette: SHIMANO 105 R7100-12S, 11-34T.

• Brakes: SHIMANO 105 R7070 Hydraulic disc, Centerlock 160/160mm.

Variant 4 – RS (SENSAH) Mechanical 24-Speed (Alloy/Carbon Rim)

• System: RS (SENSAH) HRD6900, 2×12-speed.

• Front Derailleur: SHIMANO 105.

• Rear Derailleur: RS (SENSAH) RD8500-R-GS-12S.

• Brakes: RS Flat-mount Full Hydraulic Disc, 160/160mm.

Variant 5 – WheelTop EVO TX 28-Speed Wireless Electronic (Carbon)

• System: WheelTop EVO TX Wireless Electronic 2×14-speed.

• Shifters: WheelTop EVO TX Wireless Electronic Shift Lever (Carbon).

• Front Derailleur: WheelTop EVO TX Wireless Electronic – 2 Speeds.

• Rear Derailleur: WheelTop EVO TX Wireless Electronic – 14 Speeds (Carbon Plate/Large Guide).

• Crankset: SENICX-XRF Alu DUB Hollow Closed, Gear Ratio: 30-46T.

• Cassette: CNC Hollow Integrated Colorful – 14 Speeds, 10-36T.

• Chain: SUMC-14 Speeds, Black Colorful Design.

• Bottom Bracket: Threaded T47*29mm, Hollow & Sealed Bearings.

• Brakes: WheelTop Flat Mount Full Hydraulic Disc Brakes, IIIPRO Centerlock Heat-Dissipating Rotor (160/160mm).

Wheelset & Tires

• Hubs: RS Alu alloy, 4-sealed Bearings, Slotted, F24*R24 holes, Thru-axle F12×100_R12×142.

• Rims: RS High modulus Carbon Fiber Wave rims (optional) or Alu alloy Double wall, W21×H38mm.

• Tires: MAXXIS-PURSUER / INNOVA-PRO, Foldable & Reflective, 700*28C (or 27C).

Additional Components

• Saddle: 3D Printed Saddle / Comfortable & lightweight for racing.

• Pedals: Alu alloy with Lightweight & Skid-resistant.

• Cables: JAGWIRE performance cables.

Included Accessories

• Standard safety reflectors.

• PC bottle cage + Tools.

• TW Instruction Manual + Warranty Card (plus Charger for electronic variants).
