R5 Pro - 2rd Carbon Road Bike
/
Specification
Specification
Key Components
-
Wheel Size: 700C
-
Frame Heights: 43.5 / 46 / 48 / 50 / 52 / 54 / 56 cm
-
Bike Colors: White / Matte Black / Matte Dark Gray / Others / Full Holographic
-
Net Weight: 9.3 kg (Alloy Wheel Version) / 9.1 kg (Carbon Wheel Version)
Frame & Structure
-
Frame: R5pro (Disc & Thru-Axle 12×142), High Modulus Carbon Fiber, Aero-Racing Geometry, Full Internal Cable Routing
-
Fork: R5pro (Disc & Thru-Axle 12×100), High Modulus Carbon Fiber, 700C
-
Seat Post: High Modulus Carbon Fiber, Aero-Racing Profile
-
Handlebar Set: Integrated Handlebar & Stem (420×90 mm), High Modulus Carbon Fiber, Full Internal Cable System
-
Clamps: Hidden Screw Fit to Frame
-
Head Set: CNC Aluminum Alloy with Sealed Bearings (52×52 mm)
-
Bottom Bracket: Threaded T47×24 mm, Hollow & Sealed Bearings
-
Washer: Special Design for Internal Cable Routing
Drivetrain Options
Variant 1 – RS-24S Alloy Wheel Version
-
System: RS-24S Hydraulic Disc, Alloy Wheel
-
Shifters: RS (SENSAH HRD6900-R) 2×12-Speed Hydraulic
-
Front Derailleur: RS (SENSAH Z2) 2-Speed
-
Rear Derailleur: RS (SENSAH RD8500-GS) 12-Speed
-
Crankset: SENICX PRF Aluminum Alloy Hollow 34/50T
-
Cassette: SUNSHINE 12-Speed, 11–32T
-
Chain: SUMC 12-Speed
-
Bottom Bracket: Threaded T47×24 mm Hollow Bearing System
Variant 2 – RS-24S Carbon Wheel & Wave Rim Version
-
System: RS-24S Hydraulic Disc, Carbon Wheel & Wave Rim
-
Shifters: RS (SENSAH HRD6900-R) 2×12-Speed Hydraulic
-
Front Derailleur: RS (SENSAH Z2) 2-Speed
-
Rear Derailleur: RS (SENSAH RD8500-GS) 12-Speed
-
Crankset: SENICX PRF Aluminum Alloy Hollow 34/50T
-
Cassette: SUNSHINE 12-Speed, 11–32T
-
Chain: SUMC 12-Speed
-
Bottom Bracket: Threaded T47×24 mm Hollow Bearing System
Wheelset & Tires
Variant 1 – Alloy Wheel Version
-
Hubs: RS Aluminum Alloy & Carbon Fiber Body, 4-Sealed Bearings, HG Freehub, 24H Front / 24H Rear, Disc & Thru-Axle F12×100 / R12×142
-
Rims: RS Aluminum Alloy AL7005, Double Wall Construction, W21×H38 mm
-
Spokes: SHUNJIU Circular 14G Steel
-
Tires: RS Foldable 700×28C with Reflective Edges
Variant 2 – Carbon Wheel & Wave Rim Version
-
Hubs: RS Aluminum Alloy & Carbon Fiber Body, 4-Sealed Bearings, HG Freehub, 24H Front / 24H Rear, Disc & Thru-Axle F12×100 / R12×142
-
Rims: RS High Modulus Carbon Fiber Wave Rim, W28×H50 mm Profile
-
Spokes: SHUNJIU Flat 14G Aero Spokes
-
Tires: RS Foldable 700×28C with Reflective Edges
Braking System
-
Brakes: RS (SENSAH HRD-G100) Hydraulic Disc, 160 mm Front / 160 mm Rear Rotors
Additional Components
-
Saddle: Lightweight and comfortable racing saddle
-
Pedals: Lightweight & skid-resistant
-
Cables: JAGWIRE performance cables
Included Accessories
-
Standard Safety Reflectors (Handlebar, Seat Post, Front & Rear Wheels)
-
PC Bottle Cage + Tool Kit
-
Manual + Warranty Card
Description
Description
Geometry Image
Geometry Image
R5 Pro - 2rd Features
Why choose this bike
Carbon Aero Frame
High modulus carbon fiber construction with aero-racing geometry and full internal cable routing.
High modulus carbon fiber construction with aero-racing geometry and full internal cable routing.
Carbon Disc Fork
R5pro carbon fork with thru-axle 12×100 for improved handling and power transfer.
R5pro carbon fork with thru-axle 12×100 for improved handling and power transfer.
2×12-Speed Hydraulic
SENSAH RS system with 2×12 gearing and precise hydraulic shifting.
SENSAH RS system with 2×12 gearing and precise hydraulic shifting.
Hydraulic Disc System
SENSAH HRD-G100 hydraulic disc brakes with 160 mm rotors for consistent stopping power.
SENSAH HRD-G100 hydraulic disc brakes with 160 mm rotors for consistent stopping power.
Alloy or Carbon Wave Rim
Choice of durable AL7005 alloy or high modulus carbon fiber wave rims with 700×28C reflective
tires.Choice of durable AL7005 alloy or high modulus carbon fiber wave rims with 700×28C reflective tires.
Color Options

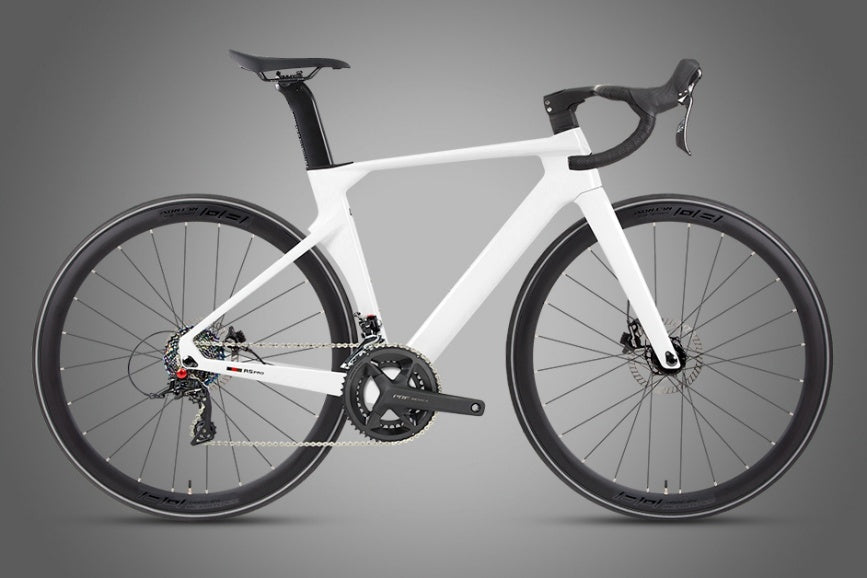

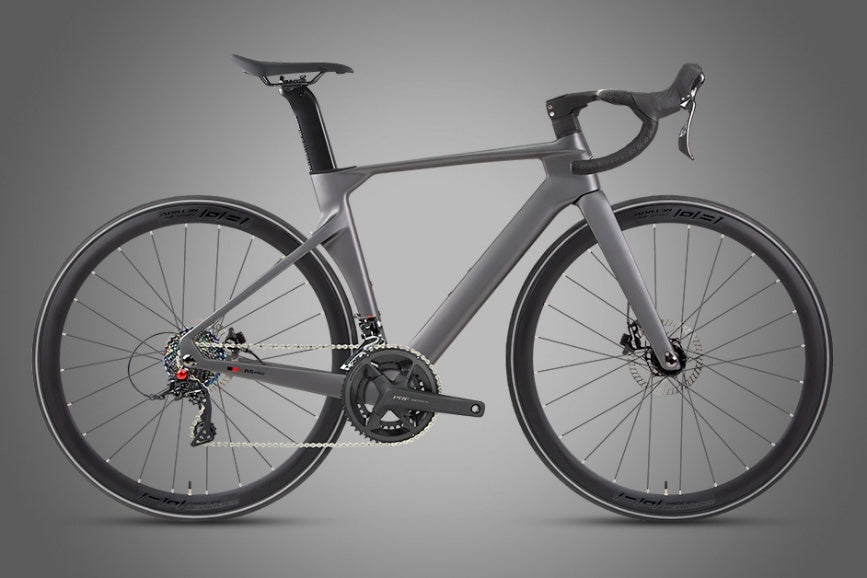

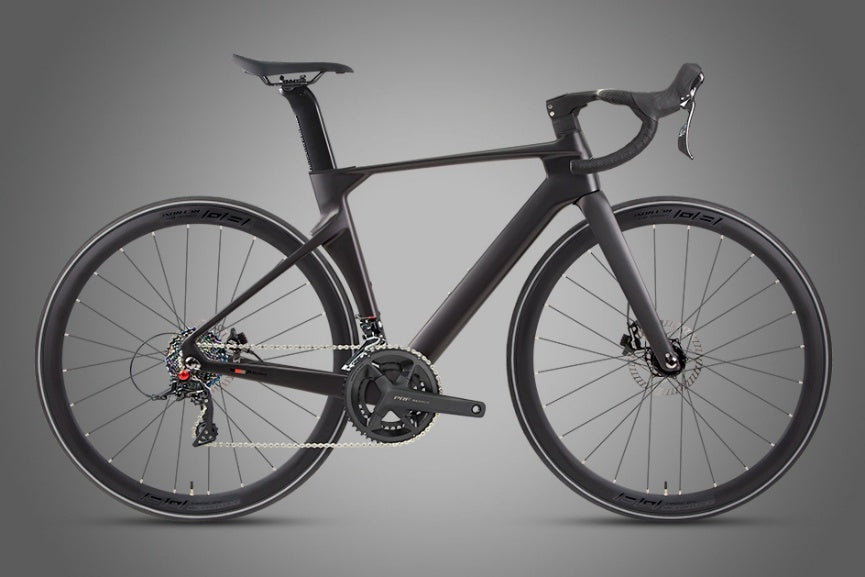

Offered in White, Matte Black, Matte Dark Gray, or Full Holographic finishes.
Offered in White, Matte Black, Matte Dark Gray, or Full Holographic finishes.
