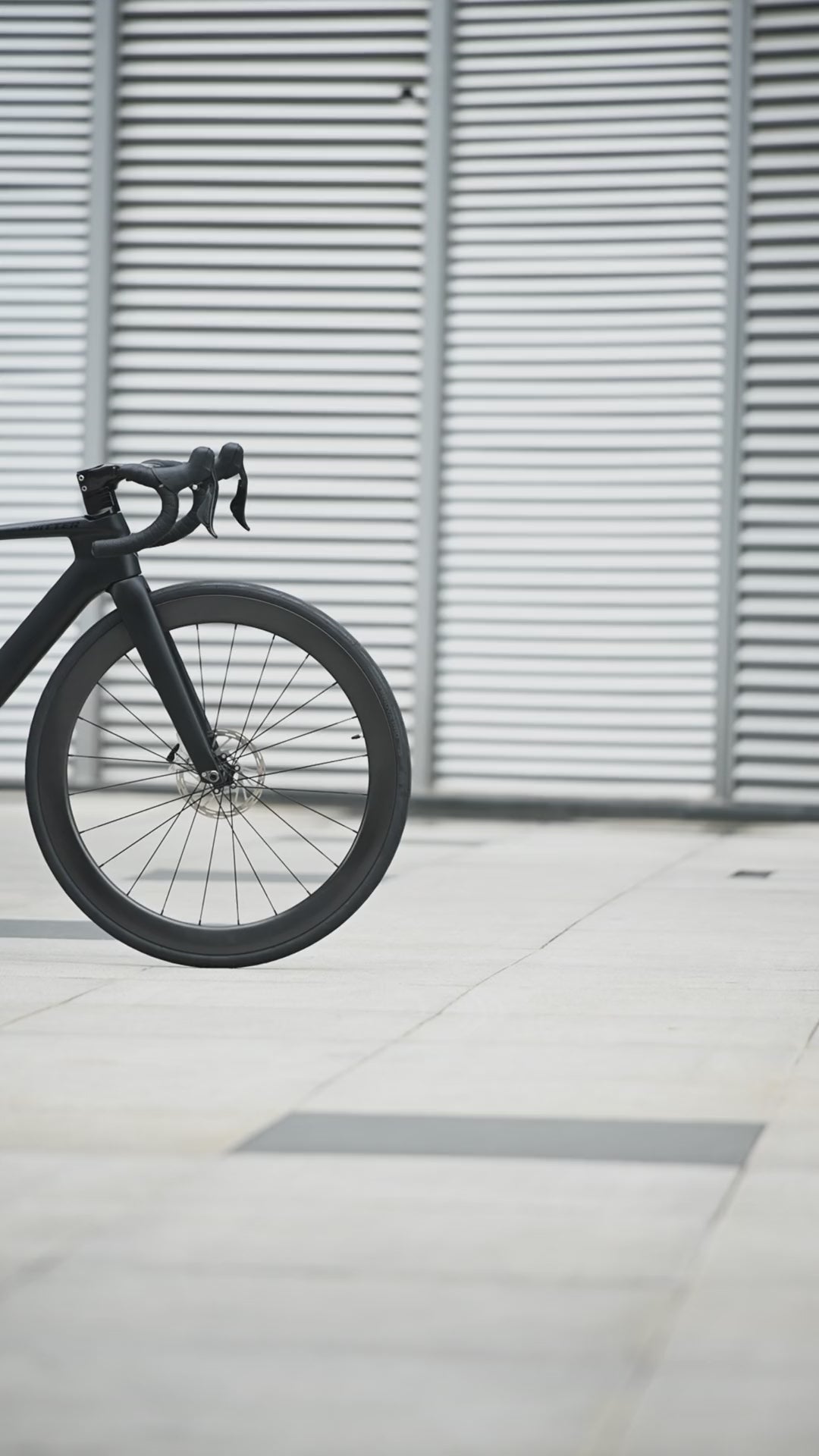

R10 Pro - Disc (Sport) Twitter Carbon Road Bike

Key Components

• Wheel Size: 700C

• Frame Heights: 43.5 / 46 / 48 / 50 / 52 / 54 / 56 cm

• Bike Colors: White / Matte Black / Matte Dark Gray / Others / Full Holographic

• Net Weight: 9.3 kg (Alloy Wheel Version) / 9.2 kg (Carbon Wheel Version)

Frame & Structure

• Frame: R10 (Disc & Thru-Axle 12×142), high modulus Carbon Fiber, Aero-Racing design, full internal cable routing

• Fork: R10pro (Disc & Thru-Axle 12×100), high modulus Carbon Fiber, 700C

• Seat Post: High modulus Carbon Fiber, Aero-Racing profile

• Handlebar Set: Lightweight Aluminum Alloy Integrated Handlebar & Stem (400×90 mm), full internal cable routing

• Clamps: Hidden screw fit to frame

• Head Set: CNC aluminum alloy with sealed bearings (52×52 mm)

• Bottom Bracket: Threaded T47×24 mm, hollow & sealed bearings

• Washer: Special for internal cable routing

Drivetrain Options

Variant 1 – RS-22S Hydraulic Disc, Alloy Wheel

• System: RS-22S, hydraulic disc, alloy wheel

• Shifters: RS (SENSAH HRD6900-R) 2×11-speed hydraulic

• Front Derailleur: RS (SENSAH Z2) 2-speed

• Rear Derailleur: RS (SENSAH RD8500-GS) 11-speed

• Crankset: Prowheel ARP aluminum alloy hollow 34/50T

• Cassette: SUNSHINE 11-speed, 11–30T

• Chain: SUMC 11-speed

• Brakes: RS (SENSAH HRD-G100) hydraulic disc, 160/160 mm rotors

Variant 2 – RS-22S Hydraulic Disc, Carbon Wheel (Flat Rim 50H)

• System: RS-22S, hydraulic disc, carbon wheel & flat rim

• Shifters: RS (SENSAH HRD6900-R) 2×11-speed hydraulic

• Front Derailleur: RS (SENSAH Z2) 2-speed

• Rear Derailleur: RS (SENSAH RD8500-GS) 11-speed

• Crankset: Prowheel ARP aluminum alloy hollow 34/50T

• Cassette: SUNSHINE 11-speed, 11–30T

• Chain: SUMC 11-speed

• Brakes: RS (SENSAH HRD-G100) hydraulic disc, 160/160 mm rotors

Wheelset & Tires

Variant 1 – Alloy Wheelset

• Hubs: RS aluminum alloy, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142

• Rims: RS AL7005 aluminum alloy, double wall, W21×H38 mm

• Spokes: SHUNJIU circular 14G

• Tires: RS foldable 700×28C with reflective edges

Variant 2 – Carbon Wheelset (Flat Rim 50H)

• Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142

• Rims: RS high modulus Carbon Fiber flat rim, W28×H50 mm

• Spokes: SHUNJIU circular 14G

• Tires: RS foldable 700×28C with reflective edges

Braking System

• Brakes: RS (SENSAH HRD-G100) hydraulic disc, 160 mm front / 160 mm rear rotors

Additional Components

• Saddle: Lightweight and comfortable racing saddle

• Pedals: Lightweight & skid-resistant

• Cables: JAGWIRE performance cables

Included Accessories

• Standard safety reflectors (handlebar, seat post, front wheel, rear wheel)

• PC bottle cage + tools

• Manual + warranty card
