M5 (Boost) - Twitter Carbon Road Bike

Key Components

• Frame Size: 29" (27.5") × 15" / 17" / 19"

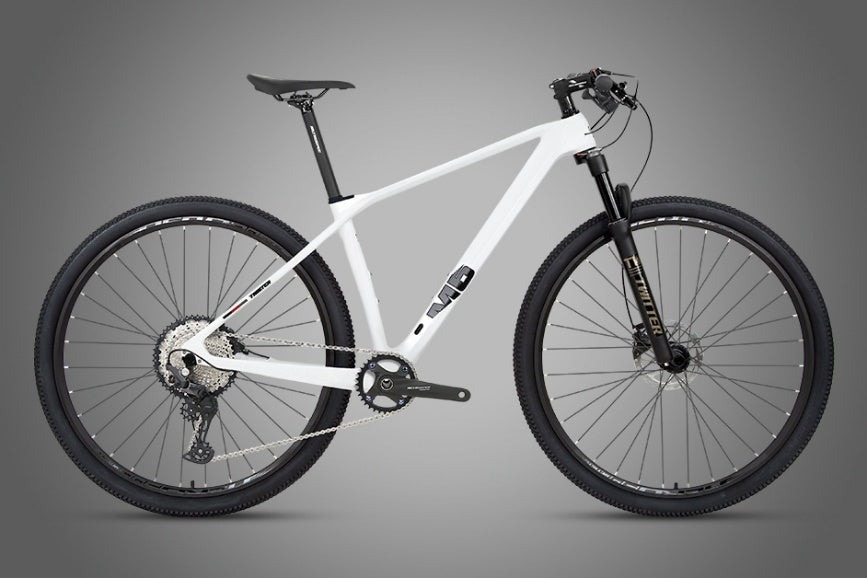

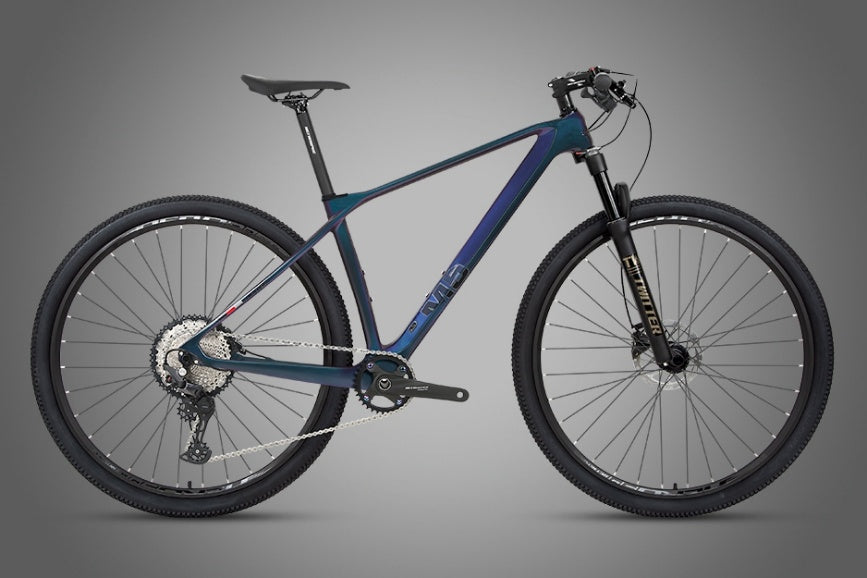

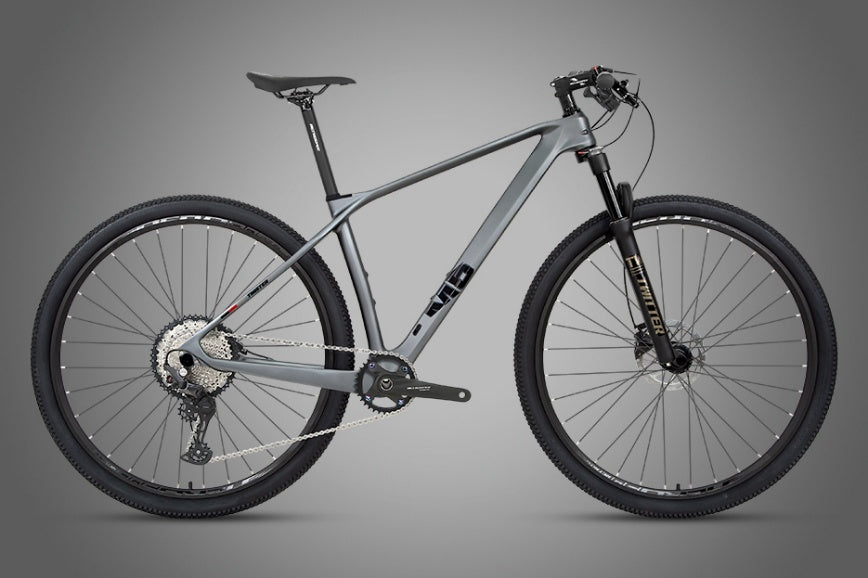

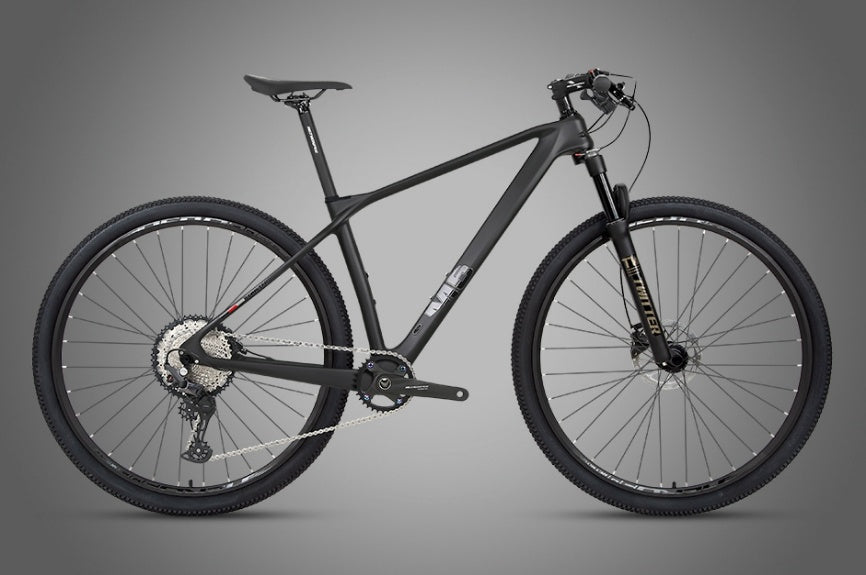

• Bike Colors: White / Matte Black / Matte Dark Gray / Full Holographic

• Net Weight: 12.1 kg (M6100-12S) / 12.2 kg (WheelTop OX-13S) / 12.1 kg (SRAM SX-12S)

Frame & Structure

• Frame: M5, High modulus Carbon Fiber, XC-lever, internal cable routing, Thru-Axle 12×148 mm Boost

• Fork: TW magnesium–aluminum alloy air suspension fork, remote lockout, Thru-Axle 15×110 mm Boost

• Handlebar Set: TW aluminum alloy matte handlebar (31.8×720 mm), stem 80 mm, seat post 31.6×350 mm

• Clamps: Hidden screw type, frame-integrated design

• Head Set: TW CNC aluminum alloy with sealed bearings (42×52 mm)

• Washer: Carbon 3K, 3×28.6×10 mm

Drivetrain Options

Variant 1 – SHIMANO DEORE M6100 1×12-Speed

• System: SHIMANO DEORE M6100 1×12-speed

• Shifter: SHIMANO DEORE M6100

• Front Derailleur: None

• Rear Derailleur: SHIMANO DEORE M6100 12-speed

• Crankset: SENICX-FM3 aluminum alloy, hollow 36T

• Cassette: SUNSHINE 12-speed, 11–50T

• Chain: SUMC 12-speed

• Bottom Bracket: Hollow BB92×41×24 mm, pressed

Variant 2 – WheelTop EDS OX 1×13-Speed (Wireless)

• System: WheelTop EDS OX wireless hydraulic 1×13-speed

• Shifter: WheelTop EDS OX wireless 13-speed

• Front Derailleur: None

• Rear Derailleur: WheelTop EDS OX wireless 13-speed

• Crankset: SENICX-FM3 aluminum alloy, hollow 36T

• Cassette: SUNSHINE 13-speed, 11–50T

• Chain: SUMC 13-speed

• Bottom Bracket: Hollow BB92×41×24 mm, pressed

Variant 3 – SRAM SX Eagle 1×12-Speed

• System: SRAM SX Eagle 1×12-speed

• Shifter: SRAM SX Eagle 12-speed

• Front Derailleur: None

• Rear Derailleur: SRAM SX Eagle 12-speed

• Crankset: SRAM SX Eagle DUB, 34T

• Cassette: SRAM PG1210 Eagle 12-speed, 11–50T

• Chain: SRAM SX Eagle 12-speed

• Bottom Bracket: Hollow BB92×41×29 mm, pressed

Wheelset & Tires

• Hubs: RS aluminum alloy & carbon fiber, 4-sealed bearings, HG, disc compatible, 32 holes, Thru-Axle F15×110 / R12×148 mm Boost

• Rims: RS aluminum alloy, double wall with rivets, W25×H21 mm

• Spokes: SHUNJIU circular 14G

• Tires: INNOVA-PRO 29" (27.5") × 2.1", black

Braking System

• Brakes: SHIMANO MT200 hydraulic disc brakes, 160 mm front / 160 mm rear rotors

Additional Components

• Grips: PU leather locking grips, 22.2×120 mm

• Saddle: Lightweight and comfortable MTB saddle

• Pedals: Lightweight & skid-resistant

• Cables: JAGWIRE internal and external routing

Included Accessories

• Standard safety reflectors (handlebar, seat post, front wheel, rear wheel)

• PC bottle cage + tools

• TW manual + warranty card
