Key Components

• Handlebar Set: RS aluminum alloy, matte; Handlebar 31.8×720mm, Stem 60mm, Clamp 34.9mm

• Seatpost:

  • Standard Variants: RS aluminum alloy, matte, 31.6×350mm

  • HIGH Variants: KS hydraulic dropper, remote, 31.6×395×125mm

• Headset: Aluminum alloy CNC, sealed bearings, 52×52mm

• Grips: Circular 22.2×120mm PU leather with locking ring

• Saddle: RS MTB, thickened comfort design

• Pedals: RS aluminum alloy CNC with bearings

Frame & Structure

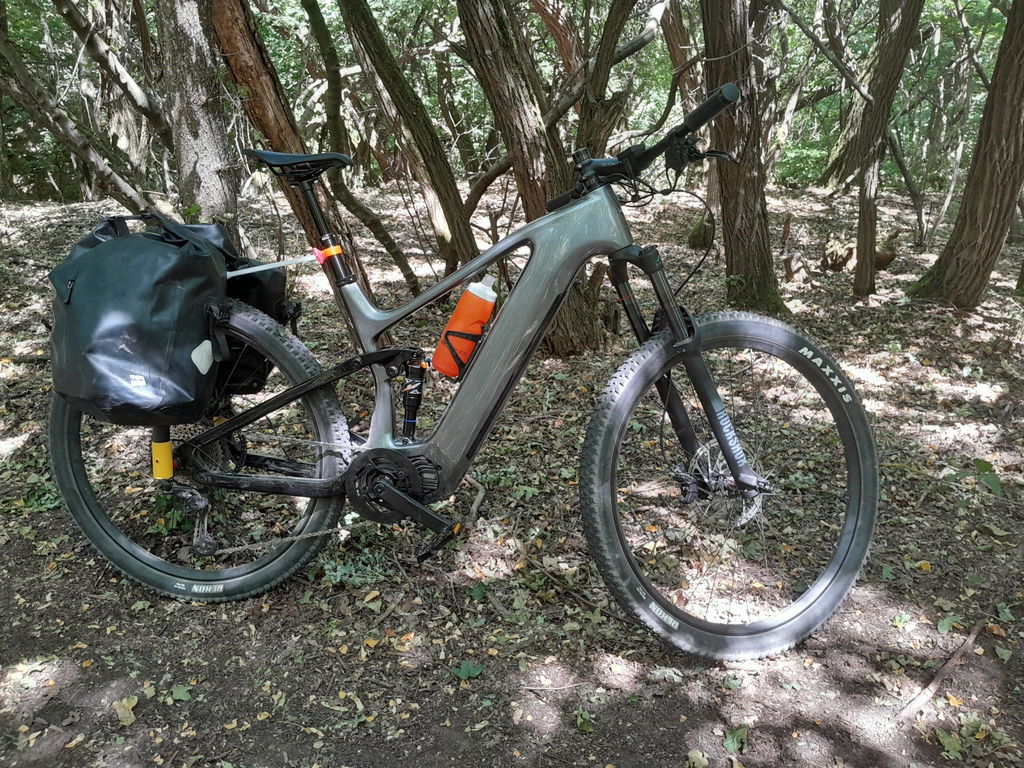

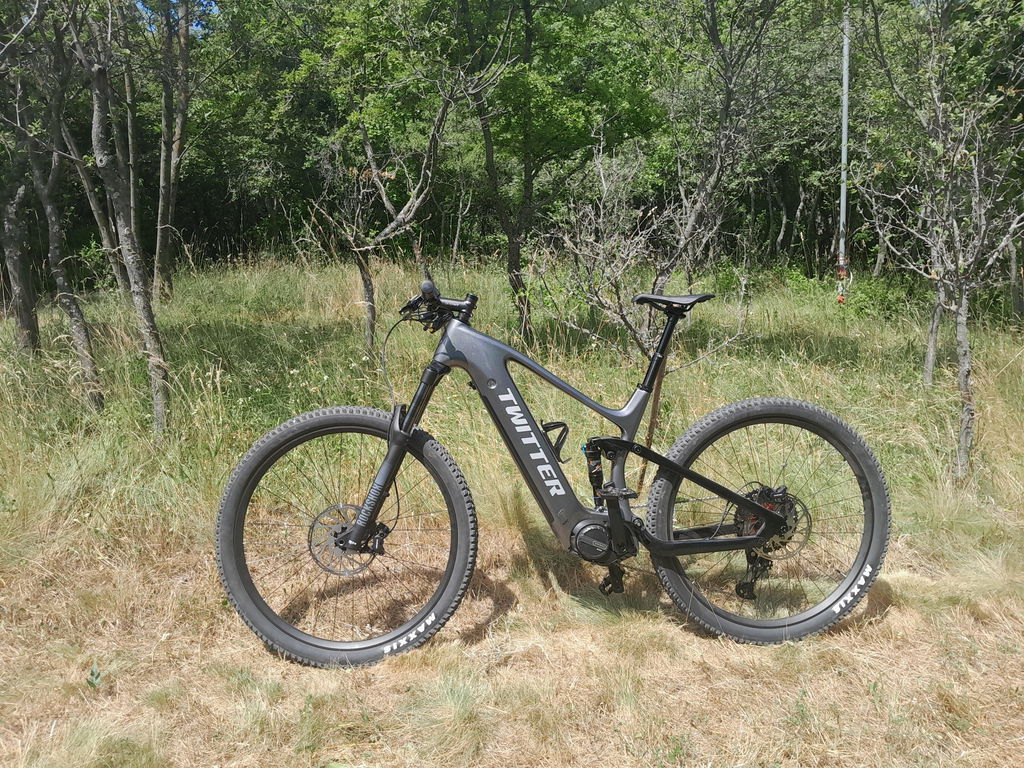

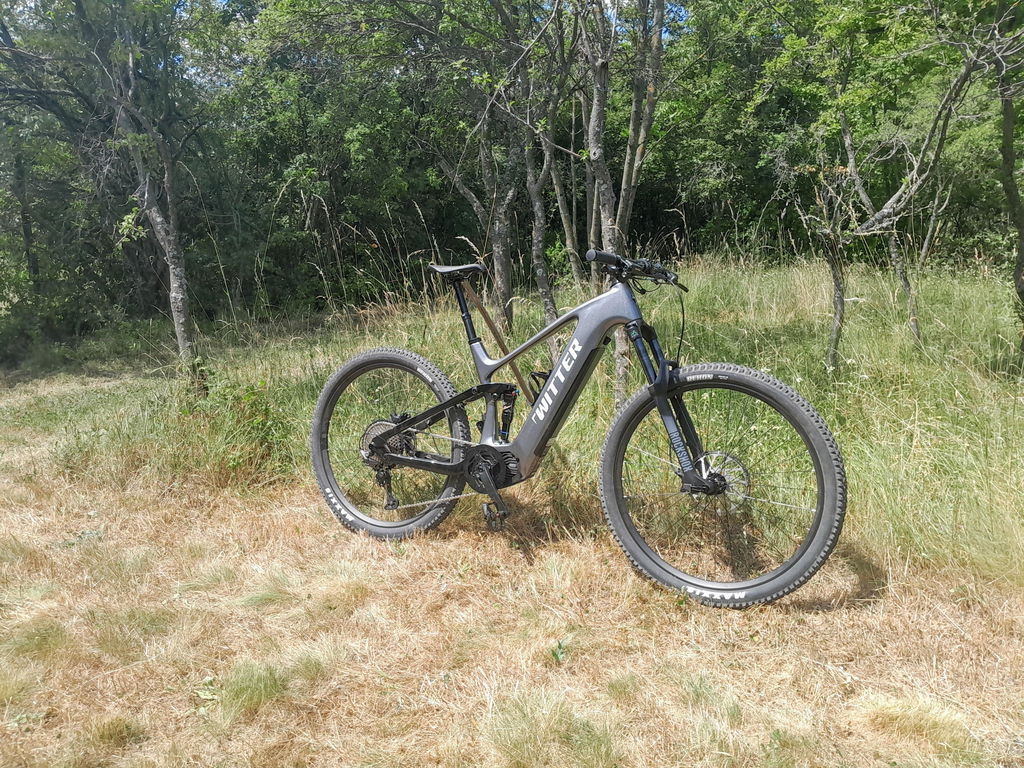

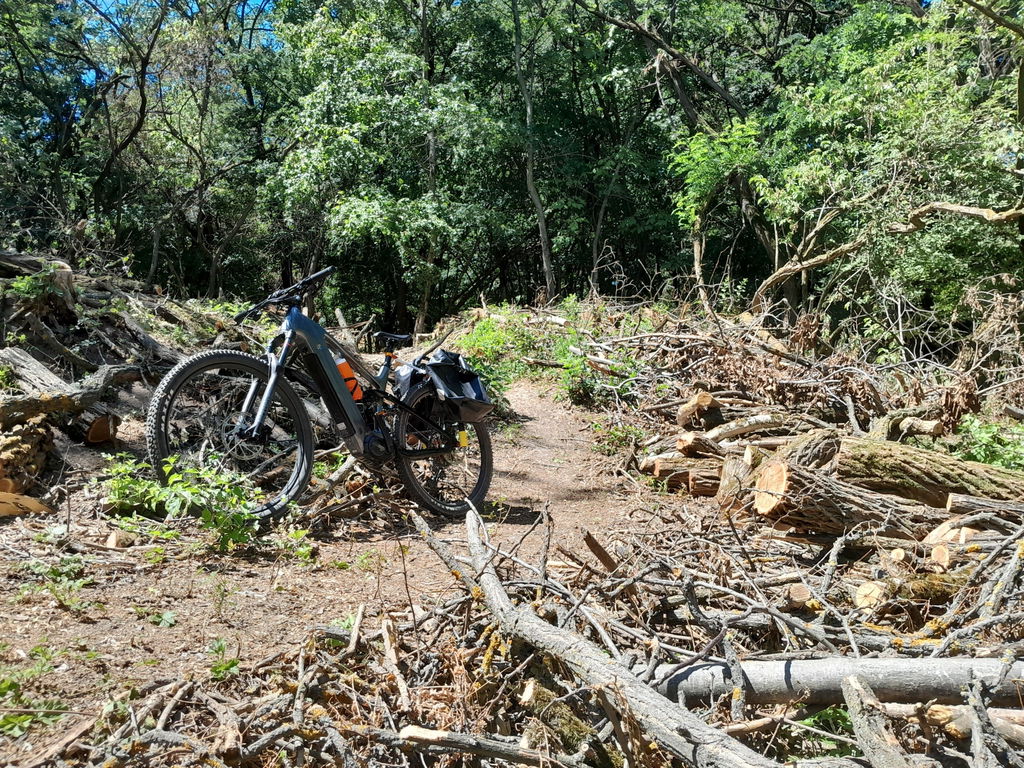

• Frame: CYCTRAC EM10, high-modulus carbon fiber, internal cable routing, thru-axle 12×148 Boost, 140mm rear travel, DNM rear shock 200×55mm

• Frame Size: 29(27.5)×16" / 18"

• Colors: Dark Green / Dark Gray / Red / Sky Blue / Holographic Black

• Net Weight:

  • Variant A: 23.1 kg

  • Variant B: 23.5 kg

  • Variant C (HIGH): 23.9 kg

  • Variant D (HIGH): 24.3 kg

Fork Options

• RS MgAl alloy, air suspension, manual lock, 150mm, thru-axle 15×110

• ROCKSHOX RECON, air suspension, manual, 150mm, thru-axle 15×110 (HIGH variants)

Variant Options (Clean Presentation)

Variant A — M510 Motor

• Motor: Bafang M510, 36V/48V 250W

• Max Torque: 95 N·m (Peak 130 N·m)

• Drivetrain: Shimano DEORE M6100, 12-speed

• Cassette: SUNSHINE 11–50T

• Battery: Samsung 720Wh, 36V20A (48V15A)

• Range: 120–140 km

• Seatpost: RS alloy

• Fork: RS air, 150mm

Variant B — M560 Motor

• Motor: Bafang M560, 48V 500W

• Max Torque: 130 N·m (Peak 150 N·m)

• Drivetrain: Shimano DEORE M6100, 12-speed

• Cassette: SUNSHINE 11–50T

• Battery: Samsung 720Wh, 48V15A

• Range: 110–130 km

• Seatpost: RS alloy

• Fork: RS air, 150mm

Variant C (HIGH) — M510 Motor + Upgraded Components

• Motor: Bafang M510, 36V/48V 250W

• Max Torque: 95 N·m (Peak 130 N·m)

• Drivetrain: Shimano DEORE M6100, 12-speed

• Cassette: SUNSHINE 11–50T

• Battery: Samsung 720Wh, 36V20A (48V15A)

• Range: 120–140 km

• Seatpost: KS hydraulic dropper

• Fork: ROCKSHOX RECON, 150mm

Variant D (HIGH) — M560 Motor + Upgraded Components

• Motor: Bafang M560, 48V 500W

• Max Torque: 130 N·m (Peak 150 N·m)

• Drivetrain: Shimano DEORE M6100, 12-speed

• Cassette: SUNSHINE 11–50T

• Battery: Samsung 720Wh, 48V15A

• Range: 110–130 km

• Seatpost: KS hydraulic dropper

• Fork: ROCKSHOX RECON, 150mm

Motor System & Electronics

• Speed Limit: 25 km/h (max 45 km/h)

• Pedal Sensor: Torque + speed (cadence)

• Charging: 6–7 hours

• Charger: 3A DC2.1

• Display: Bafang C245 LCD

• Waterproof Rating: IPX6

• Max Load: 130 kg

Wheelset & Tires

• Hubs: RS aluminum alloy, 4-sealed bearings, disc, 32H; F15×110 / R12×148 Boost

• Rims: RS aluminum alloy, double-wall, riveted, W25×H21mm

• Spokes: SHUNJIU 14G circular

• Tires: MAXXIS 29/27.5×2.25"

Braking System

• TEKTRO M535, 4-piston hydraulic brakes, 203/203mm rotors
