EM5 - 2RD - Cyctrac Alloy Electric Mountain Bike

Key Components

• Handlebar Set: RS aluminum alloy, matte; Handlebar 31.8×720mm, Stem 80mm, Seatpost 31.6×350mm, Clamp 34.9mm QR

• Headset: Aluminum alloy CNC, sealed bearings, 52×52mm

• Grips: Circular 22.2×120mm, PU leather with locking ring

• Saddle: RS MTB, thickened and comfortable

• Pedals: RS aluminum alloy CNC with bearings

Frame & Structure

• Frame: CYCTRAC-EM5, AL7005 aluminum alloy, flat/smooth welds, internal cable routing, thru-axle 12×148 Boost, UDH tail hook

• Frame Size: 29(27.5)×14" / 16" / 18"

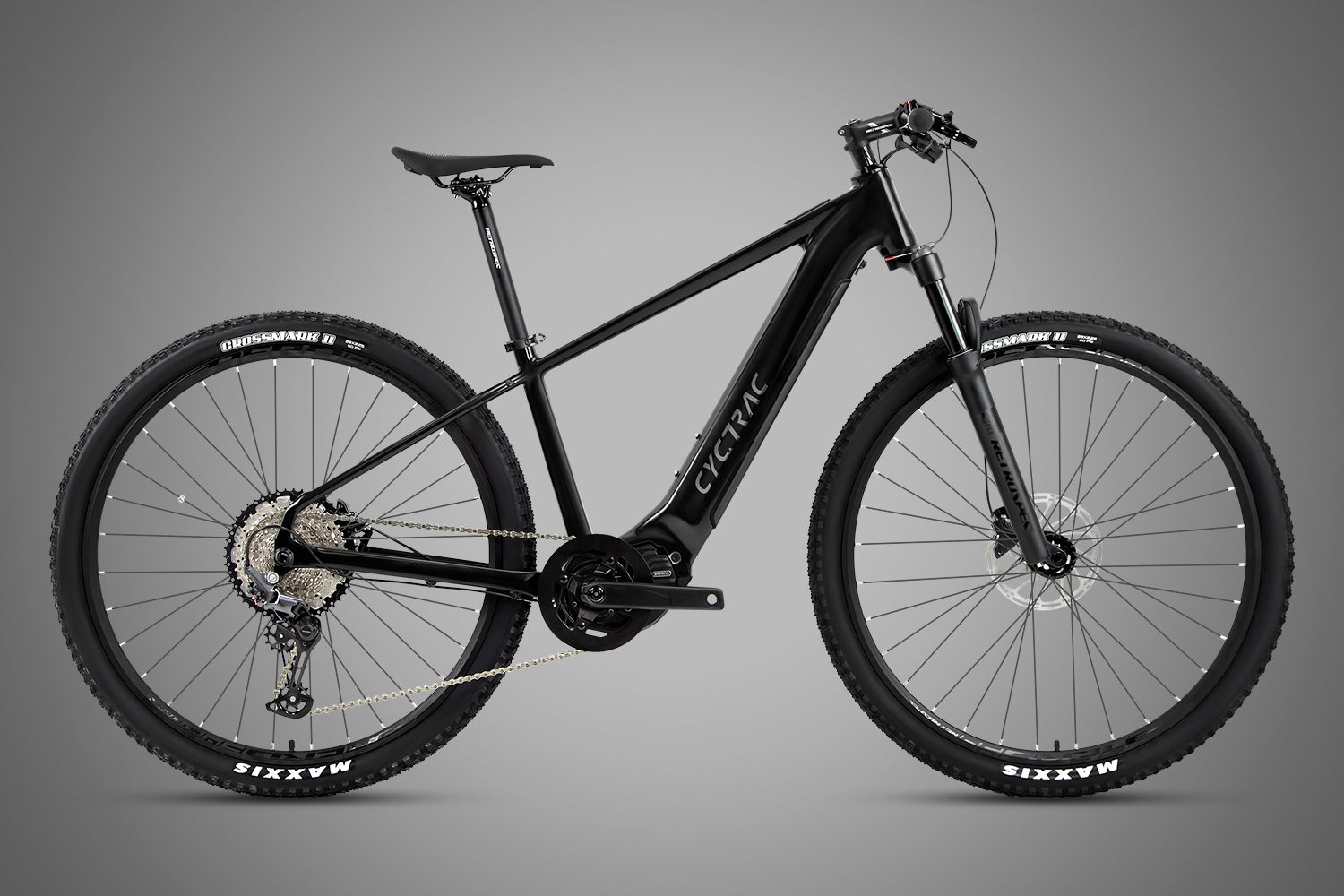

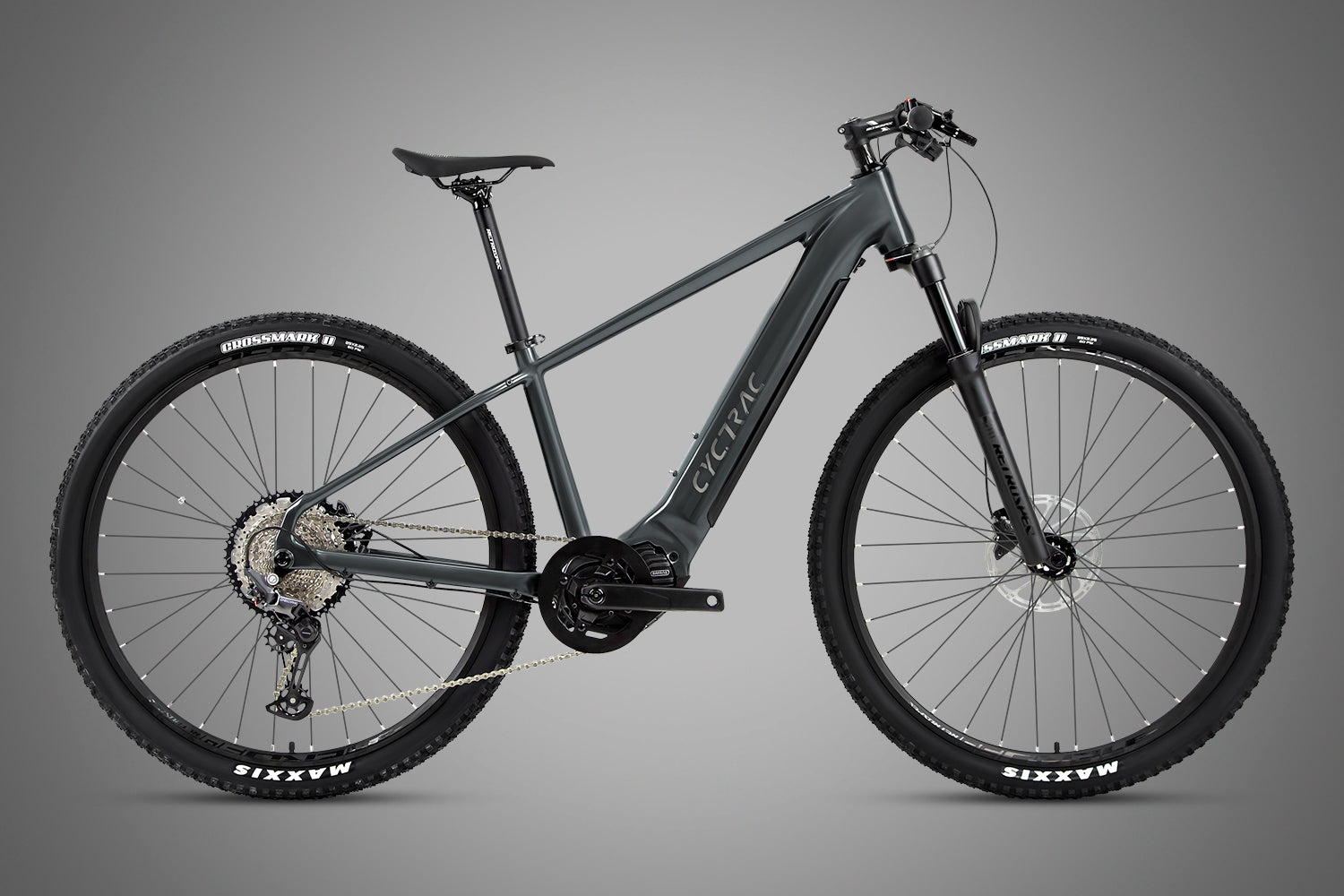

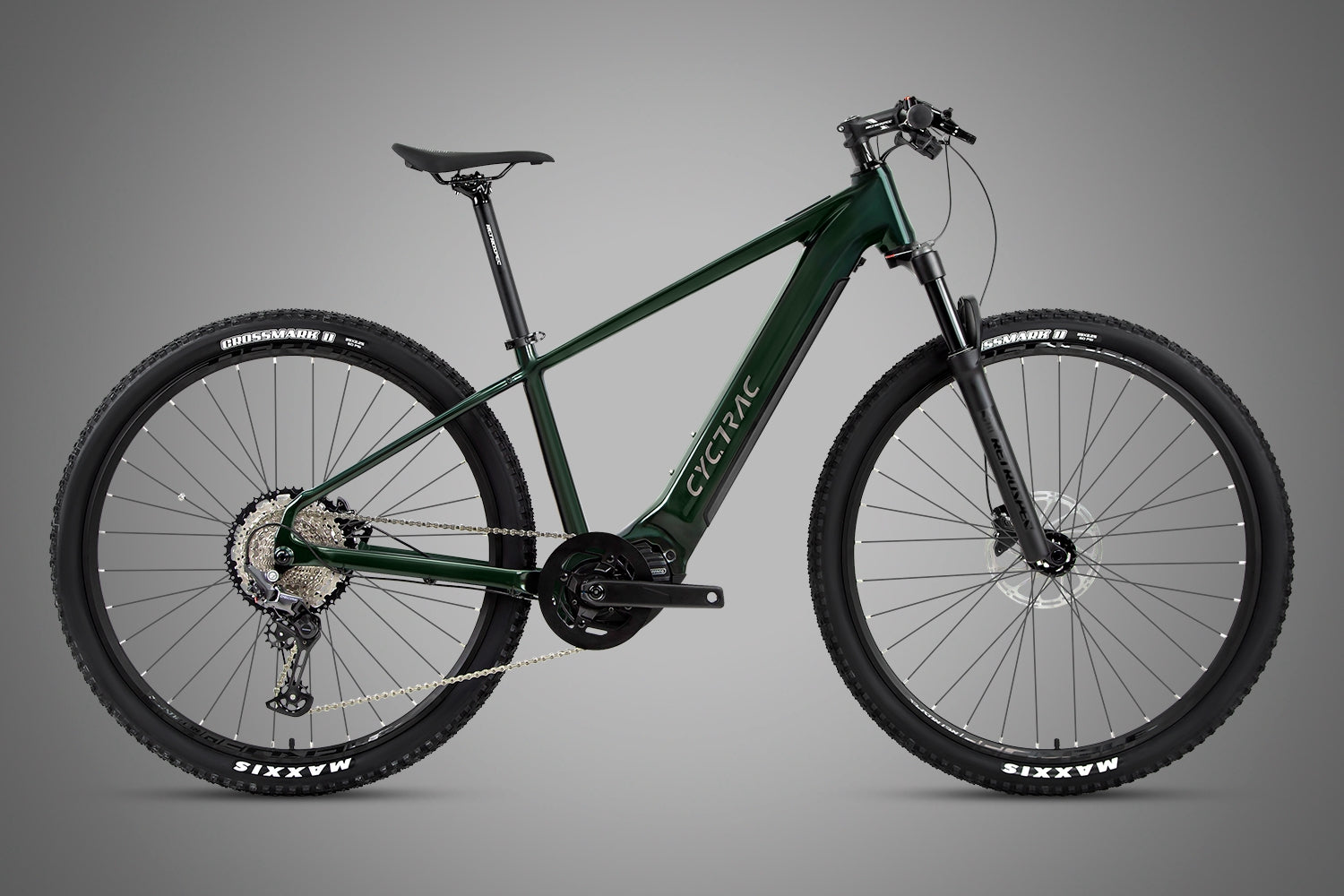

• Color Options: Black / Dark Gray / Dark Green

• Net Weight:

  • Variant A: 22.3 kg

  • Variant B: 22.7 kg

  • Variant C: 22.9 kg

Fork Options

• RS MgAl alloy, air, remote lockout, thru-axle 15×110

• ROCKSHOX JUDY, air, remote lockout, thru-axle 15×110 (Variant C)

Variant Options

Variant A — M510 Motor + Shimano M6100 (12-Speed)

• Motor: Bafang M510, 36V/48V 250W

• Torque: 95 N·m (Peak 130 N·m)

• Drivetrain: Shimano DEORE M6100 12-speed (shifter + derailleur)

• Cassette: SUNSHINE 11–50T

• Chain: SUMC 12-speed

• Battery: Samsung 720Wh, 36V20A (48V15A)

• Range: 130–150 km

Variant B — M560 Motor + Shimano M6100 (12-Speed)

• Motor: Bafang M560, 48V 500W

• Torque: 130 N·m (Peak 150 N·m)

• Drivetrain: Shimano DEORE M6100 12-speed

• Cassette: SUNSHINE 11–50T

• Chain: SUMC 12-speed

• Battery: Samsung 720Wh, 48V15A

• Range: 120–140 km

Variant C — M560 Motor + Wheeltop Wireless (12-Speed)

• Motor: Bafang M560, 48V 500W

• Torque: 130 N·m (Peak 150 N·m)

• Drivetrain: Wheeltop EDS OX-12S wireless (shifter + derailleur)

• Cassette: SUNSHINE 11–50T

• Chain: SUMC 12-speed

• Battery: Samsung 720Wh, 48V15A

• Range: 120–140 km

• Fork: ROCKSHOX JUDY Air

Motor System & Electronics

• Speed Limit: 25 km/h (max 45 km/h)

• Pedal Sensor: Torque + speed (cadence)

• Charging Time: 6–7 hours

• Charger: 3A, DC2.1

• Display: Bafang C030 LCD integrated in top tube

• Waterproof Rating: IPX6

• Max Load: 130 kg

Wheelset & Tires

• Hubs: RS aluminum alloy, 4-sealed bearings, disc, 32H; thru-axle F15×110 / R12×148 Boost

• Rims: RS aluminum alloy, double-wall with rivets, W25×H21mm

• Spokes: SHUNJIU 14G circular

• Tires: MAXXIS 29/27.5×2.25"

Braking System

• Shimano MT200 hydraulic disc brakes, 180/180mm rotors
