Cyclone - 3rd (R7120 Small) - Carbon Road Bike
/
Specification
Specification
Key Components
-
Wheel Size: 700C
-
Frame Heights: 43.5 / 46 / 48 / 50 / 52 / 54 cm
-
Bike Colors: White / Matte Black / Matte Dark Gray / Others / Full Holographic / 3K Gloss Black / 3K Gloss Green
-
Net Weight: 8.7 kg (Alloy Rim) / 8.5 kg (Carbon Wave Rim)
Frame & Structure
-
Frame: CYCLONE-3rd (Disc & Thru-Axle 12×142), high modulus Carbon Fiber, aerodynamic design with full internal cable routing
-
Fork: CYCLONE-3rd (Disc & Thru-Axle 12×100), high modulus Carbon Fiber, 700C
-
Seat Post: High modulus Carbon Fiber, Aero-Racing profile
-
Handlebar Set: TW 3K Carbon Fiber Integrated Handlebar & Stem (400×90 mm), full internal cable routing
-
Clamps: Hidden screw fit to frame
-
Head Set: CNC aluminum alloy with sealed bearings (52×52 mm)
-
Bottom Bracket: Threaded T47×24 mm, hollow bearings
-
Washer: Dedicated for internal cable routing
Drivetrain
-
System: SHIMANO 105 R7120, 2×12-speed hydraulic, alloy rim
-
Shifters: SHIMANO 105 R7120 2×12-speed hydraulic
-
Front Derailleur: SHIMANO 105 R7100 2-speed
-
Rear Derailleur: SHIMANO 105 R7100 12-speed
-
Crankset: SENICX PR1 aluminum alloy hollow 34/50T
-
Cassette: SUNSHINE 12-speed, 11–32T
-
Chain: SUMC 12-speed
-
Brakes: SHIMANO 105 R7070 hydraulic disc, 160/160 mm rotors
Wheelset & Tires
Variant 1 – Alloy Rim
-
Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142
-
Rims: RS AL7005 aluminum alloy, double wall, W21×H38 mm
-
Spokes: SHUNJIU circular 14G
-
Tires: MAXXIS PURSUER 700×28C, foldable, lightweight, black
Variant 2 – Carbon Wave Rim (H50)
-
Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142
-
Rims: RS high modulus Carbon Fiber wave rim, W28×H50 mm
-
Spokes: SHUNJIU flat 14G
-
Tires: MAXXIS PURSUER 700×28C, foldable, lightweight, black
Braking System
-
Brakes: SHIMANO 105 R7070 hydraulic disc, 160 mm front / 160 mm rear rotors
Additional Components
-
Saddle: Lightweight and comfortable racing saddle
-
Pedals: Lightweight & skid-resistant
-
Cables: JAGWIRE performance cables
Included Accessories
-
Standard safety reflectors (handlebar, seat post, front wheel, rear wheel)
-
PC bottle cage + tools
-
Manual + warranty card
Description
Description
Geometry Image
Geometry Image
Cyclone - 3rd (R7120 Small) Features
Why choose this bike
Carbon Aero Frame
CYCLONE-3rd carbon frame with 12×142 mm thru-axle and full internal cable routing for aerodynamic efficiency.
CYCLONE-3rd carbon frame with 12×142 mm thru-axle and full internal cable routing for aerodynamic efficiency.
Carbon Disc Fork
CYCLONE-3rd carbon fork with 12×100 mm thru-axle for responsive control and smooth performance.
CYCLONE-3rd carbon fork with 12×100 mm thru-axle for responsive control and smooth performance.

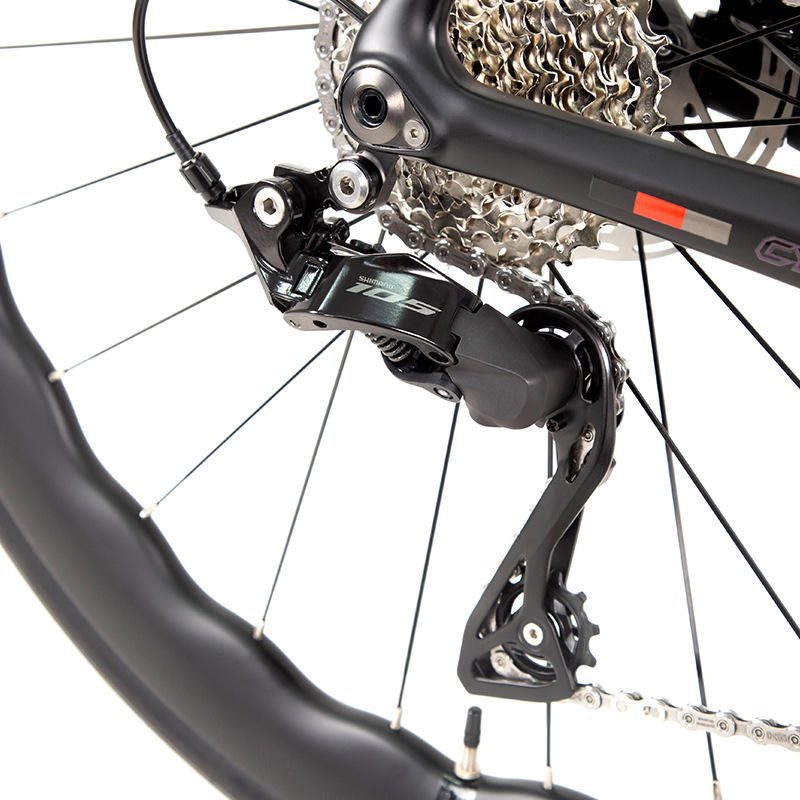

SHIMANO 105 R7120
2×12-speed SHIMANO drivetrain with precise hydraulic shifting and braking control.
2×12-speed SHIMANO drivetrain with precise hydraulic shifting and braking control.

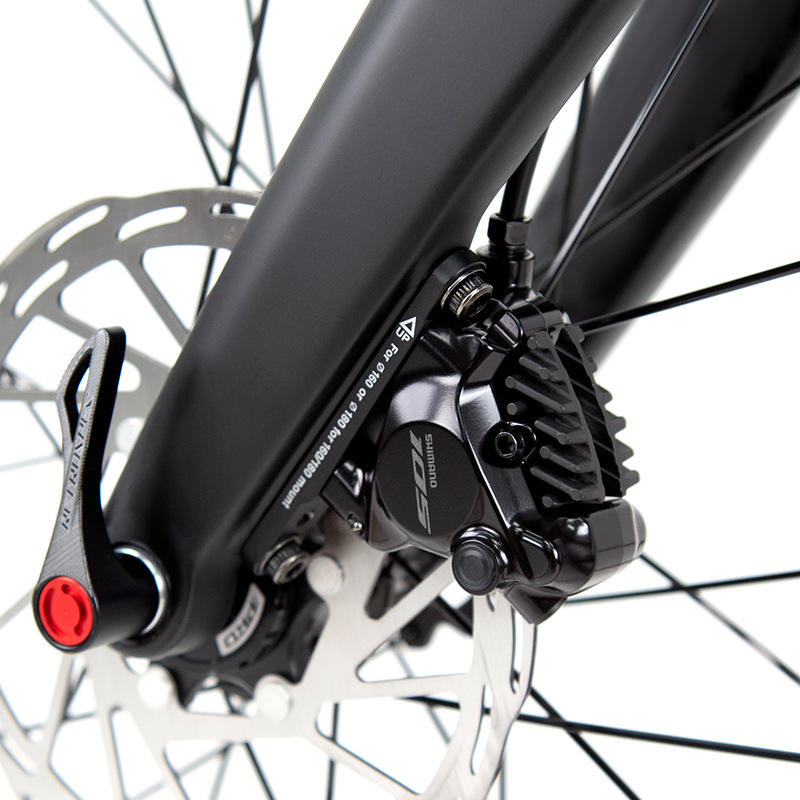

Hydraulic Disc System
SHIMANO 105 R7070 flat-mount hydraulic brakes deliver smooth, controlled stopping in all conditions.
SHIMANO 105 R7070 flat-mount hydraulic brakes deliver smooth, controlled stopping in all conditions.
Alloy or Carbon Wave Rims
RS AL7005 alloy or 50H carbon wave rims paired with MAXXIS PURSUER 700×28C foldable tires.
RS AL7005 alloy or 50H carbon wave rims paired with MAXXIS PURSUER 700×28C foldable tires.

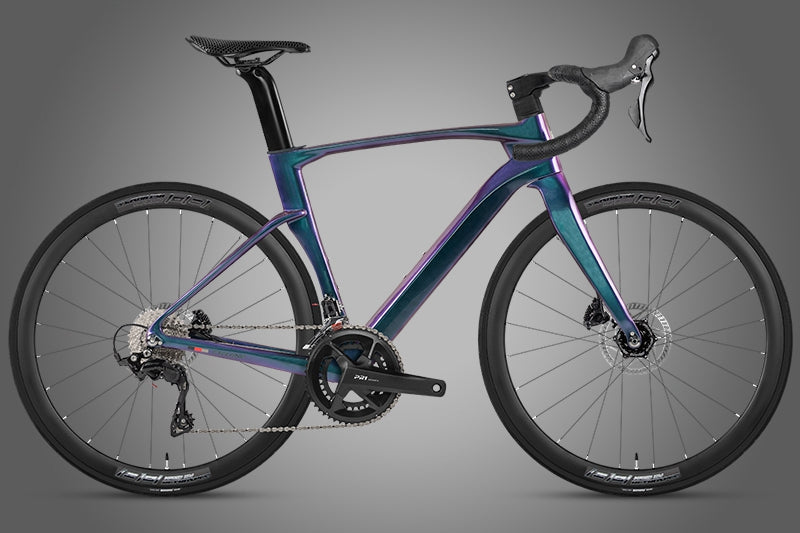

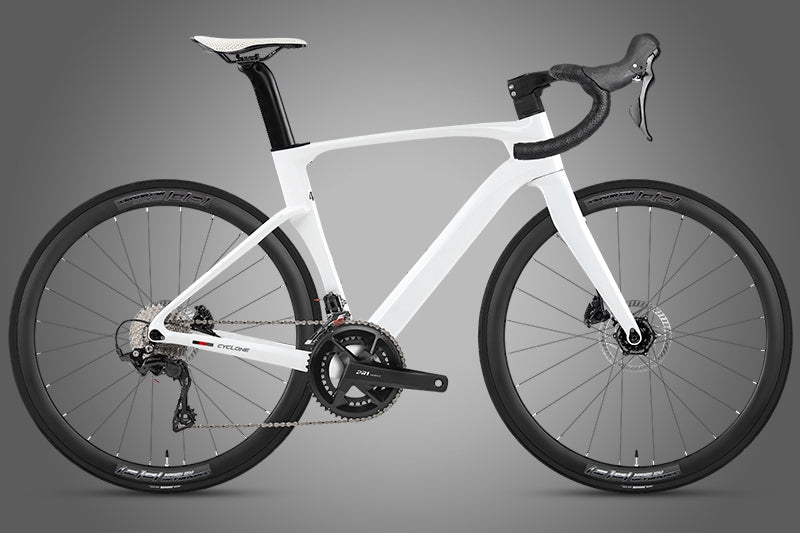

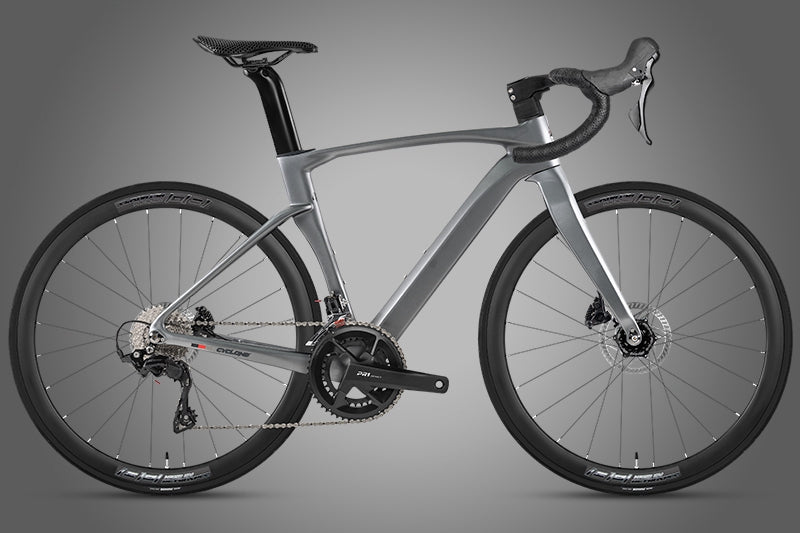

Color Options
Available in White, Matte Black, Matte Dark Gray, Full Holographic, 3K Gloss Black, and 3K
Gloss Green finishes.Available in White, Matte Black, Matte Dark Gray, Full Holographic, 3K Gloss Black, and 3K Gloss Green finishes.
