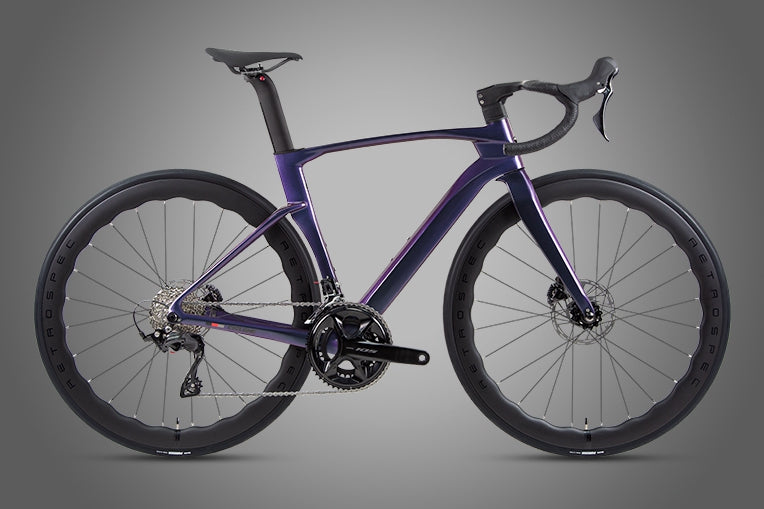

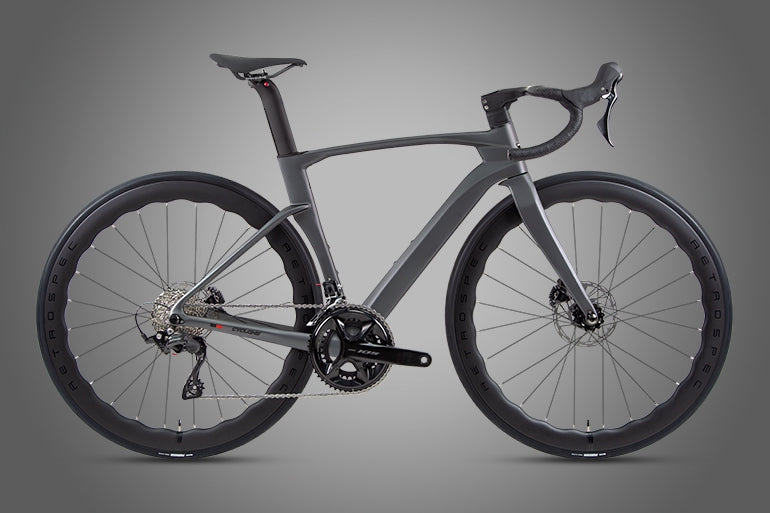

⏱ Made to Order: 10-25 Business daysCyclone - 3rd (105 Big) - Carbon Road Bike
/
Key Components
-
Wheel Size: 700C
-
Frame Heights: 43.5 / 46 / 48 / 50 / 52 / 54 cm
-
Bike Colors: White / Matte Black / Matte Dark Gray / Others / Full Holographic / 3K Gloss Black / 3K Gloss Green
-
Net Weight: 8.3 kg (both variants)
Frame & Structure
-
Frame: CYCLONE-3rd (Disc & Thru-Axle 12×142), high modulus Carbon Fiber, aerodynamic structure, full internal cable routing
-
Fork: CYCLONE-3rd (Disc & Thru-Axle 12×100), high modulus Carbon Fiber, 700C
-
Seat Post: High modulus Carbon Fiber, Aero-Racing profile
-

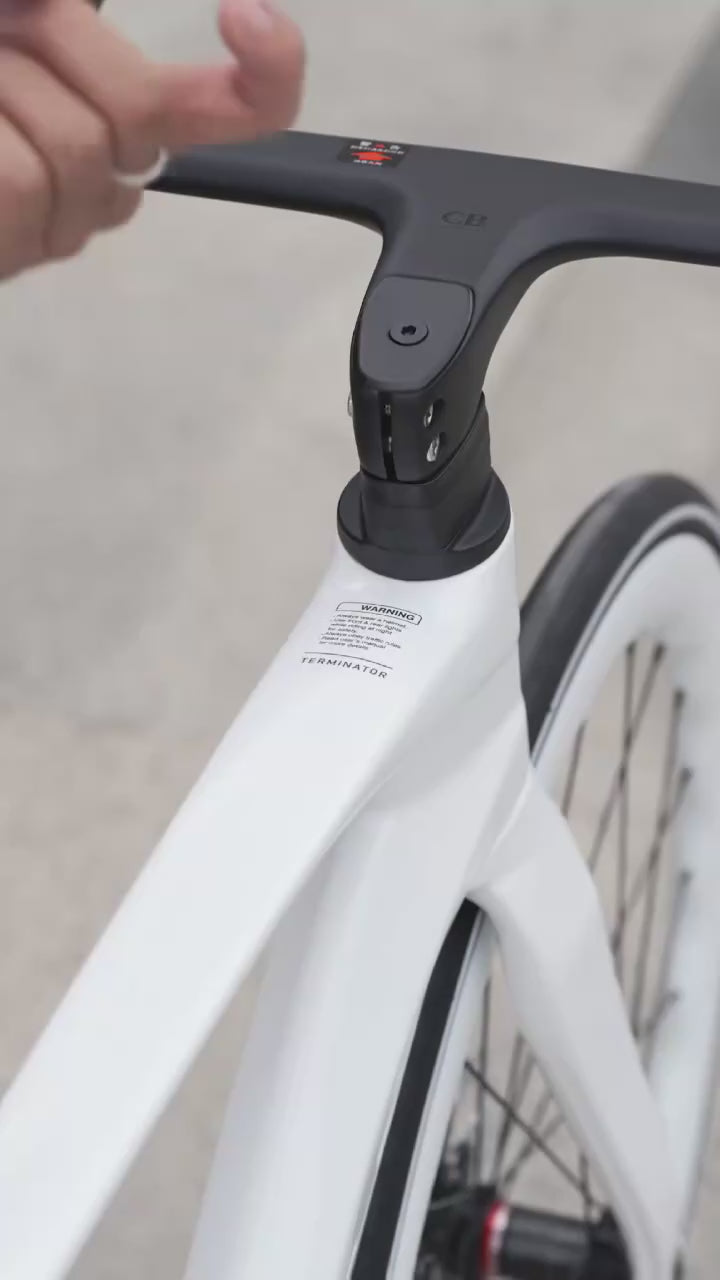

Handlebar Set: TW 3K Carbon Fiber Integrated Handlebar & Stem (400×90 mm), full internal cable routing
-
Clamps: Hidden screw fit to frame
-
Head Set: CNC aluminum alloy with sealed bearings (52×52 mm)
-
Bottom Bracket: Threaded T47×24 mm, hollow bearings
-
Washer: Dedicated for internal cable routing
Drivetrain Options
Variant 1 – SHIMANO 105 R7120 Mechanical 24-Speed (Carbon Wave Rim)
-
System: SHIMANO 105 R7120, 2×12-speed hydraulic
-
Shifters: SHIMANO 105 R7120 2×12-speed hydraulic
-
Front Derailleur: SHIMANO 105 R7100 2-speed
-

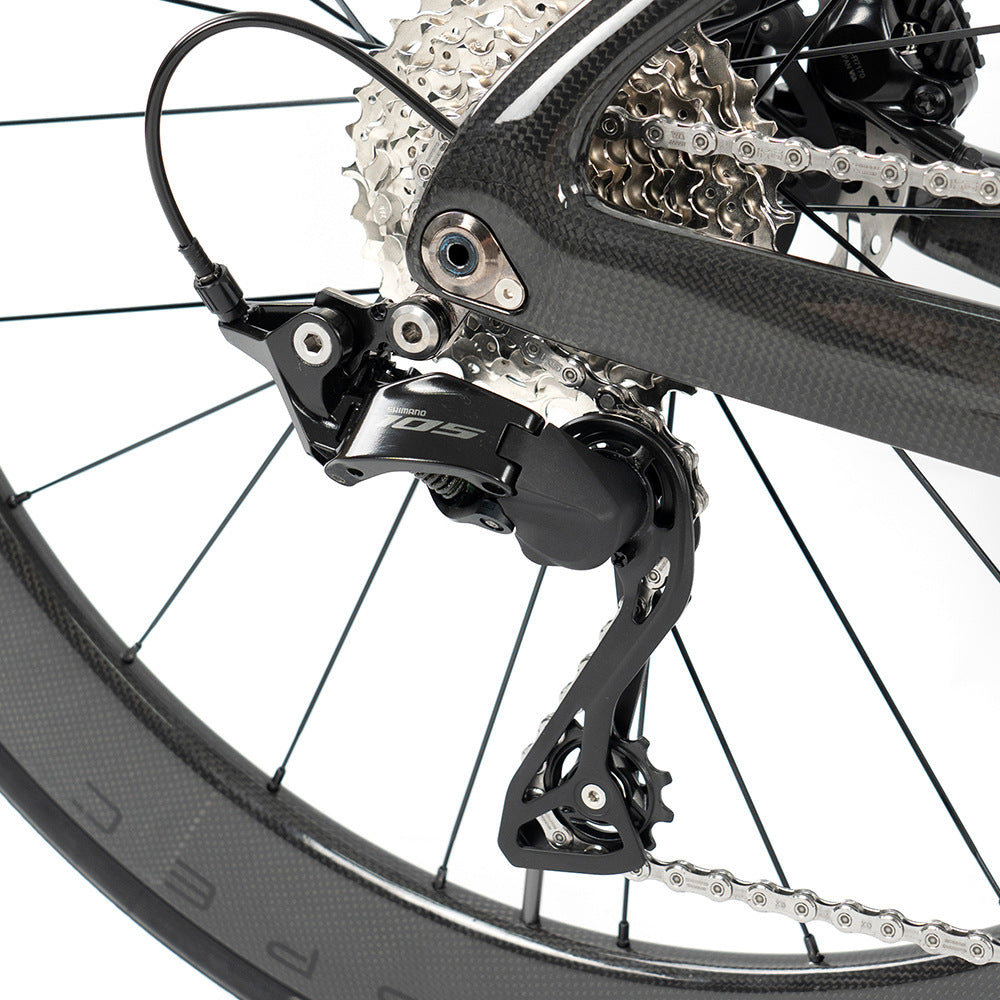

Rear Derailleur: SHIMANO 105 R7100 12-speed
-

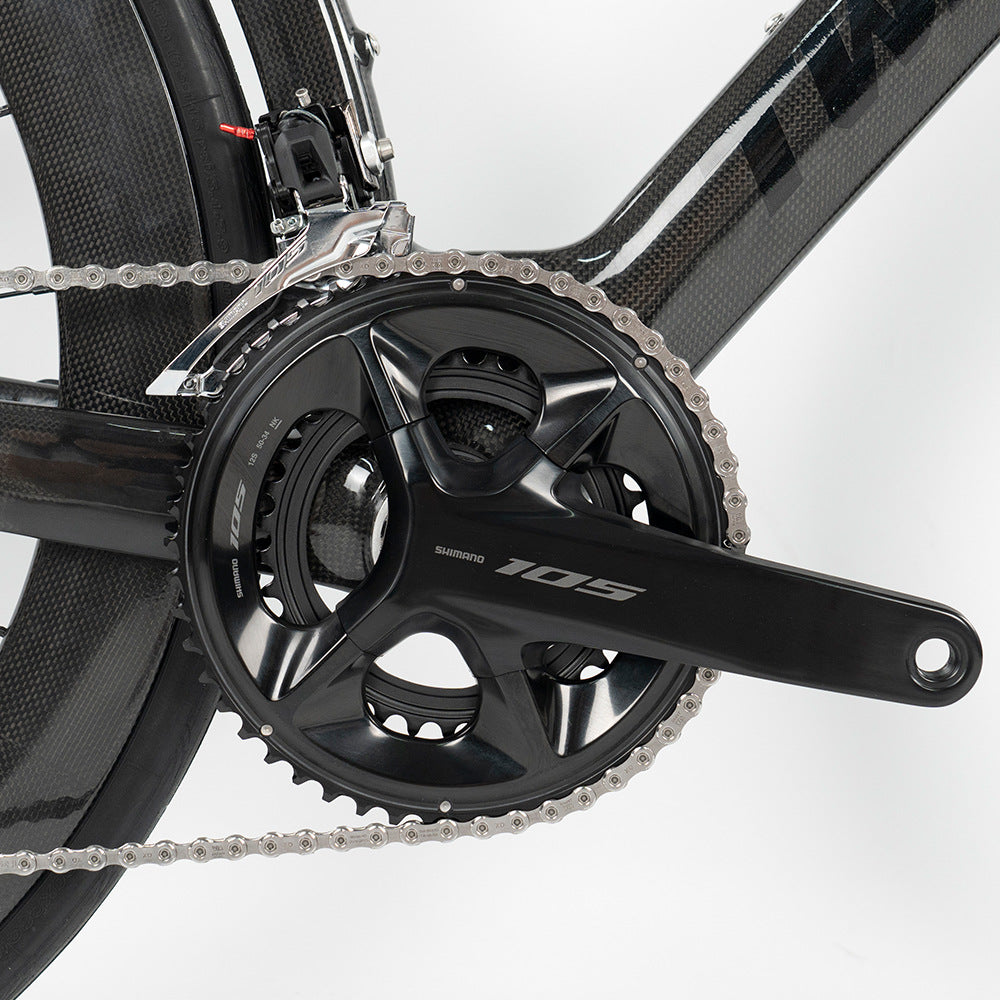

Crankset: SHIMANO 105 R7100 34/50T
-
Cassette: SHIMANO 105 R7100 12-speed, 11–34T
-
Chain: SHIMANO HG6100 12-speed
-

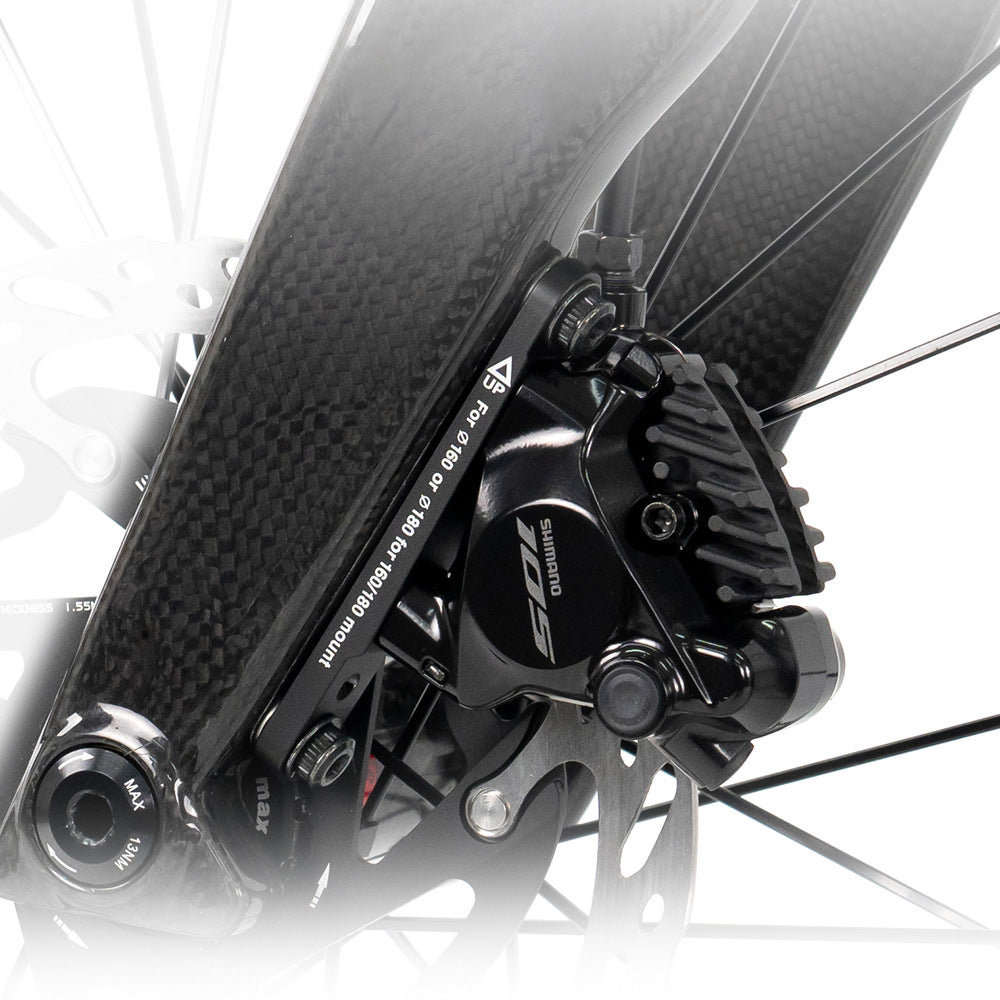

Brakes: SHIMANO 105 R7070 hydraulic disc, 160/160 mm rotors
Variant 2 – SHIMANO 105 R7170 Di2 24-Speed (Carbon Wave Rim)
-
System: SHIMANO 105 R7170 Di2, 2×12-speed electronic hydraulic
-
Shifters: SHIMANO 105 R7170 Di2 2×12-speed
-
Front Derailleur: SHIMANO 105 R7150 Di2 2-speed
-
Rear Derailleur: SHIMANO 105 R7150 Di2 12-speed
-
Crankset: SHIMANO 105 R7100 34/50T
-
Cassette: SHIMANO 105 R7100 12-speed, 11–34T
-
Chain: SHIMANO M7100 12-speed
-
Brakes: SHIMANO 105 R7170 hydraulic disc, 160/160 mm rotors
Wheelset & Tires
-
Hubs: RS aluminum alloy, super light 54T ratchet system, 4 sealed bearings, HG freehub, 24H front / 24H rear, centerlock disc, thru-axle F12×100 / R12×142
-
Rims: RS high modulus Carbon Fiber Wave rims, W28×H50 mm
-
Spokes: SHUNJIU flat 14G
-
Tires: MAXXIS PURSUER 700×28C, foldable & lightweight, black
Braking System
-
Variant 1: SHIMANO 105 R7070 hydraulic disc, 160/160 mm
-
Variant 2: SHIMANO 105 R7170 hydraulic disc, 160/160 mm
Additional Components
-
Saddle: Lightweight and comfortable racing saddle
-
Pedals: Lightweight & skid-resistant
-
Cables: JAGWIRE performance cables
Included Accessories
-
Standard safety reflectors (handlebar, seat post, front wheel, rear wheel)
-
PC bottle cage + tools
-
Manual + warranty card
Cyclone - 3rd (105 Big) Features
Why choose this bike
Carbon Aero Frame
CYCLONE-3rd carbon fiber frame with 12×142 mm thru-axle and full internal routing for aerodynamic efficiency.
CYCLONE-3rd carbon fiber frame with 12×142 mm thru-axle and full internal routing for aerodynamic efficiency.
Carbon Disc Fork
CYCLONE-3rd carbon fork with 12×100 mm thru-axle for precise steering and comfort.
CYCLONE-3rd carbon fork with 12×100 mm thru-axle for precise steering and comfort.
SHIMANO 105 Full Sets
Available in R7120 mechanical or R7170 Di2 electronic 2×12-speed systems for smooth, efficient performance.
Available in R7120 mechanical or R7170 Di2 electronic 2×12-speed systems for smooth, efficient performance.
Hydraulic Disc Brakes
SHIMANO 105 hydraulic discs with 160 mm rotors deliver controlled, consistent stopping power.
SHIMANO 105 hydraulic discs with 160 mm rotors deliver controlled, consistent stopping power.
Carbon Wave Rims
RS carbon fiber wave rims (W28×H50 mm) with lightweight 54T ratchet hubs and MAXXIS PURSUER
tires.RS carbon fiber wave rims (W28×H50 mm) with lightweight 54T ratchet hubs and MAXXIS PURSUER tires.
Color Options
Available in White, Matte Black, Matte Dark Gray, Full Holographic, 3K Gloss Black, and 3K
Gloss Green finishes.Available in White, Matte Black, Matte Dark Gray, Full Holographic, 3K Gloss Black, and 3K Gloss Green finishes.
Carbon Aero Construction
Lightweight and efficient design
The CYCLONE-3rd uses a high modulus carbon frame, fork, and cockpit to balance aerodynamics, stiffness, and comfort.
Full SHIMANO Setup
R7120 or R7170 Di2
Choose between the SHIMANO 105 R7120 mechanical or R7170 Di2 electronic drivetrains for advanced road performance.
