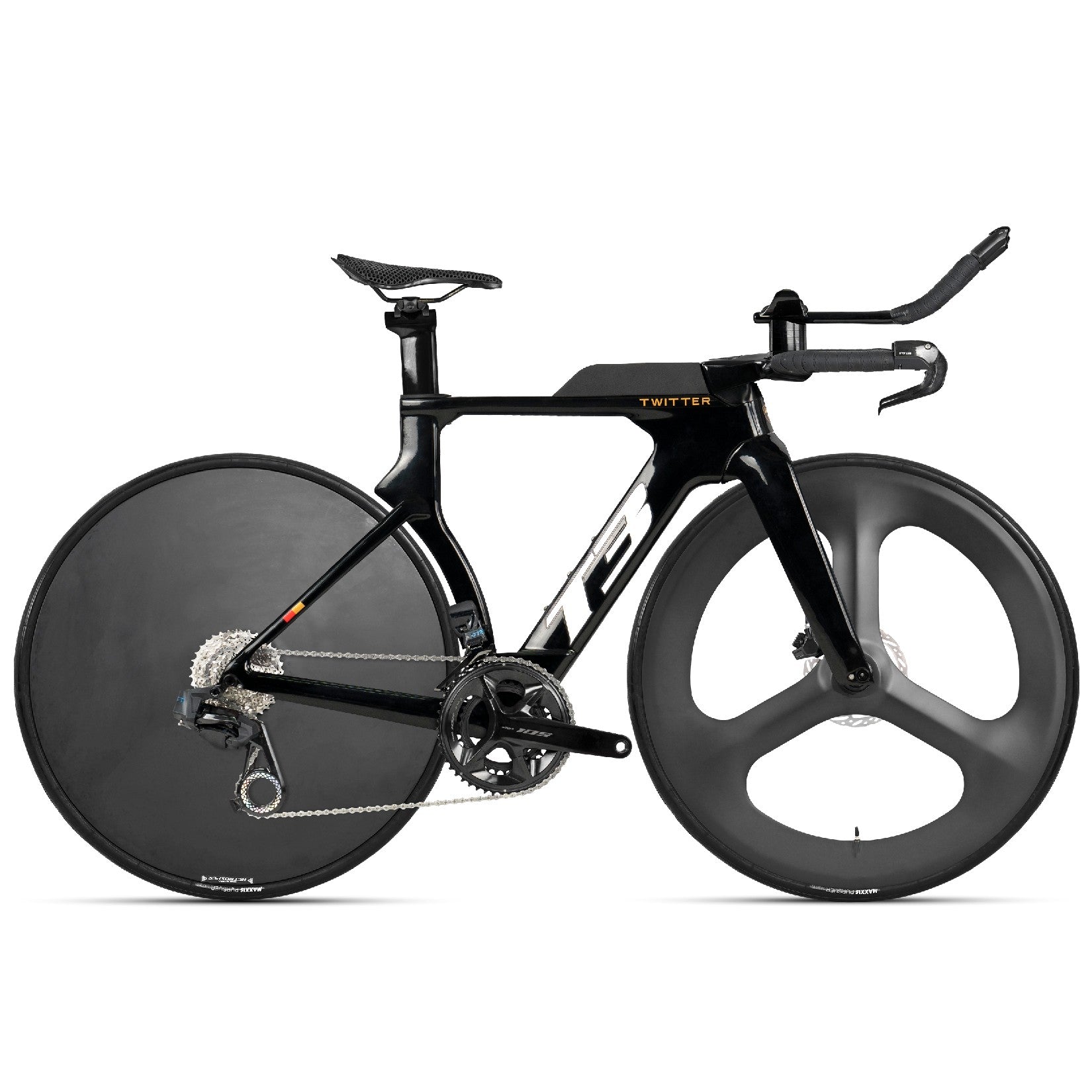

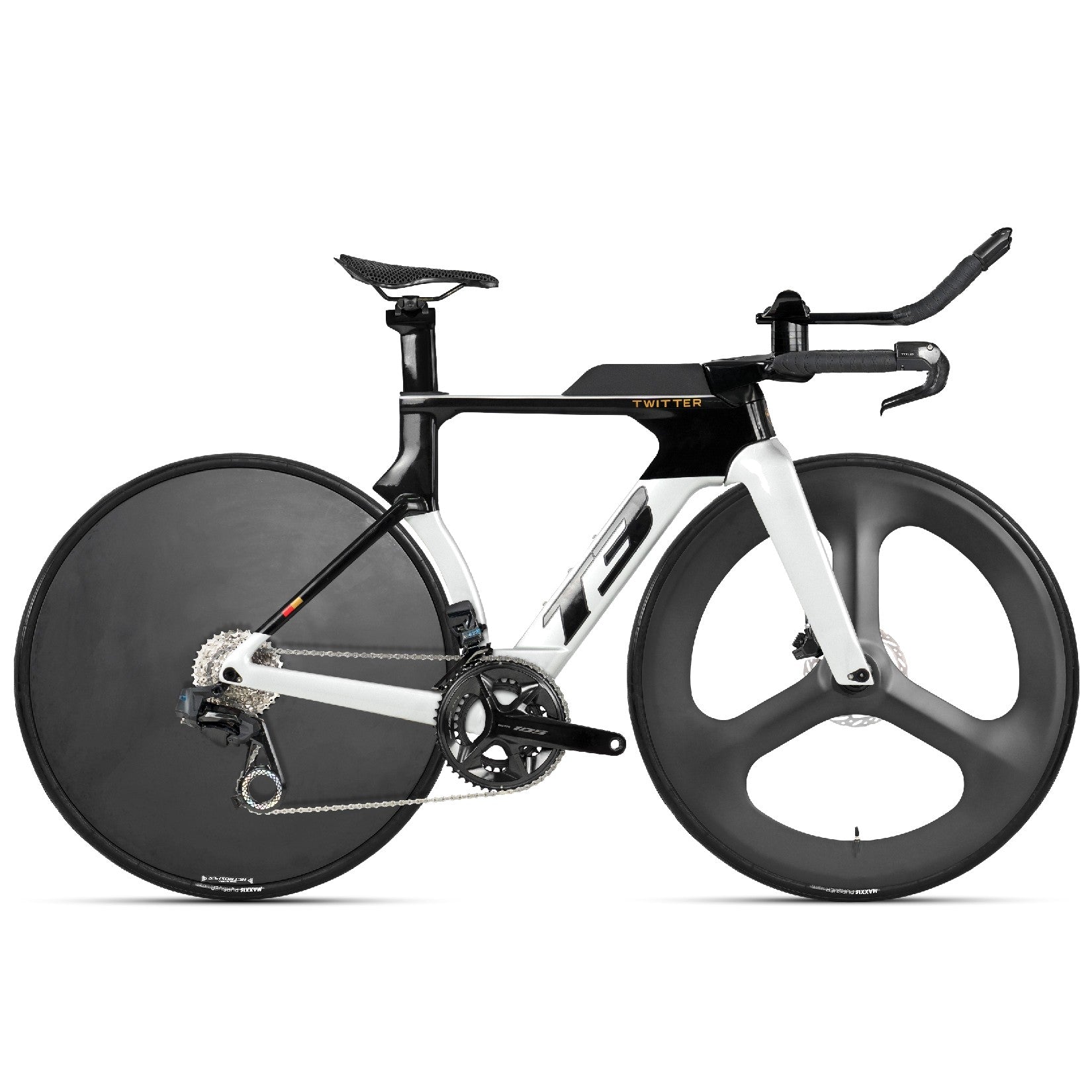

Triathlon T3 Wheeltop Wireless Electric 24S Carbon Road Bike
/
Specification
Specification
Specification
Key Components
-
Wheel Size: 700C
-
Frame Heights: 46 / 48 / 50 / 52 / 54 cm
-
Bike Colors: Multiple colors available
-
Net Weight: 9.2 kg
Frame & Structure
-
Frame: T3 (Disc & Thru-Axle 12×142), high modulus Carbon Fiber, TT-Racing, internal cable routing, gloss finish with UV laser decals
-
Fork: T3 (Disc & Thru-Axle 12×100), high modulus Carbon Fiber, 700C, TT design
-
Seat Post: High modulus Carbon Fiber, Aero-Racing profile
-
Handlebar Set: TW high modulus Carbon Fiber, Integrated TT Handlebar & Stem (400×100 mm), Assist handle 45º, Assist Arm 260mm
-
Clamps: Hidden screw fit to frame
-
Head Set: CNC aluminum alloy with sealed bearings (52×52 mm)
-
Bottom Bracket: Threaded T47×24 mm, hollow bearings
-
Washer: Aluminum alloy, for internal cable routing
Drivetrain Options
-
System: Wheeltop TT7110 Wireless Electric, 2×12-speed
-
Shifters: Wheeltop TT7110 Wireless Electric
-
Front Derailleur: WheelTop EVO TX Wireless 2-speed
-
Rear Derailleur: WheelTop EVO TX Wireless 12-speed Carbon, large carbon jockey wheels
-
Crankset: SHIMANO 105/R7100 Hollow, 34/50T
-
Cassette: SHIMANO 105/R7100, 12-speed, 11–34T
-
Chain: SHIMANO HG6100-12S
-
Brakes: Wheeltop Flat full Hydraulic Disc RT70, 160/160 mm
Wheelset & Tires
-
Hubs: RS Aluminum & Carbon Fiber, 4 sealed bearings, XD freehub, 24H front / 24H rear, centerlock disc, thru-axle F12×100 / R12×142
-
Rims: RS high modulus Carbon Fiber, front 3-spoke wheel & rear disc wheel
-
Spokes: Integrated into carbon rims (front tri-spoke / rear disc)
-
Tires: MAXXIS PURSUER 700×28C, foldable & lightweight, black
Braking System
-
Hydraulic Disc: Wheeltop RT70, 160/160 mm
Additional Components
-
Saddle: 3D printed, lightweight & comfortable
-
Pedals: RS Aluminum Alloy CNC Bearing, lightweight
-
Cables: JAGWIRE performance cables
Included Accessories
-
Standard safety reflectors (handlebar, seat post, front wheel, rear wheel)
-
Aluminum alloy bottle cage + tools
-
Instruction manual + warranty card + Wheeltop charger
Description
Description
Geometry Image
Geometry Image
T3 ( TT ) Features
Why choose this bike
High-Modulus Carbon Frame
T3 carbon fiber frame with internal cable routing, gloss finish, UV laser decals, and TT-Racing
aerodynamic design for maximum stiffness and lightweight performance.T3 carbon fiber frame with internal cable routing, gloss finish, UV laser decals, and TT-Racing aerodynamic design for maximum stiffness and lightweight performance.
High-Modulus Carbon Fork
T3 carbon fiber fork with thru-axle design, optimized for aerodynamics and maximum stiffness.
T3 carbon fiber fork with thru-axle design, optimized for aerodynamics and maximum stiffness.
Wireless 2×12-Speed System
Wheeltop TT7110 wireless drivetrain with carbon rear derailleur for smooth and precise gear changes.
Wheeltop TT7110 wireless drivetrain with carbon rear derailleur for smooth and precise gear changes.
Full Hydraulic Disc Brakes
Wheeltop RT70 hydraulic discs, 160/160mm, providing powerful and consistent stopping power in all conditions.
Wheeltop RT70 hydraulic discs, 160/160mm, providing powerful and consistent stopping power in all conditions.
Aerodynamic Carbon Wheels
Front tri-spoke and rear disc 700C wheels for ultra-lightweight speed and precision handling.
Front tri-spoke and rear disc 700C wheels for ultra-lightweight speed and precision handling.
Aerodynamic Carbon Wheels
Glossy and holographic color options combining style with high-tech carbon fiber.
Glossy and holographic color options combining style with high-tech carbon fiber.
Wireless 2×12-Speed System
Wheeltop TT7110 wireless
T3 carbon fiber frame
Wheeltop RT70 hydraulic discs
High-Modulus Carbon Fork
T3 carbon fiber fork
