⏱ Made to Order: 10-25 Business daysEC1 - Cyctrac Electric Mountain Bikes
/
Key Components
EC1 (SP)ConfRev Options
-
RS10S + M560 / 500W
-
M4100/10S + M560 / 500W
-
M6100/12S + M560 / 500W
-
Frame: CYCTRAC EC1, Alu alloy AL6061-T6, Flat weld & Smooth, Inner cables
-
Frame Size: 27.5×16"
-
Bike Color: MatteBlack / MatteDarkGray / CementGray / DarkGreen
-
Net Weight:
-
22.5KG (RS10S / M4100)
-
22.7KG (M6100 12S)
-
-
Max Load: 160 KG
-
Fork: RS, Alu alloy, Coil suspension, Manual-lockout
-
Head Sets: Inner-cables routing, Sealed bearings 52×52mm
-
Handlebar Sets: RS, Alu alloy, Matte, Handlebar 31.8×720, Stem 60, Seat post 31.6×350, Clamps 34.9mm QR
-
Motor System: Bafang Mid, M560, 48V 500W
-
Max Torque: 140 Nm
-

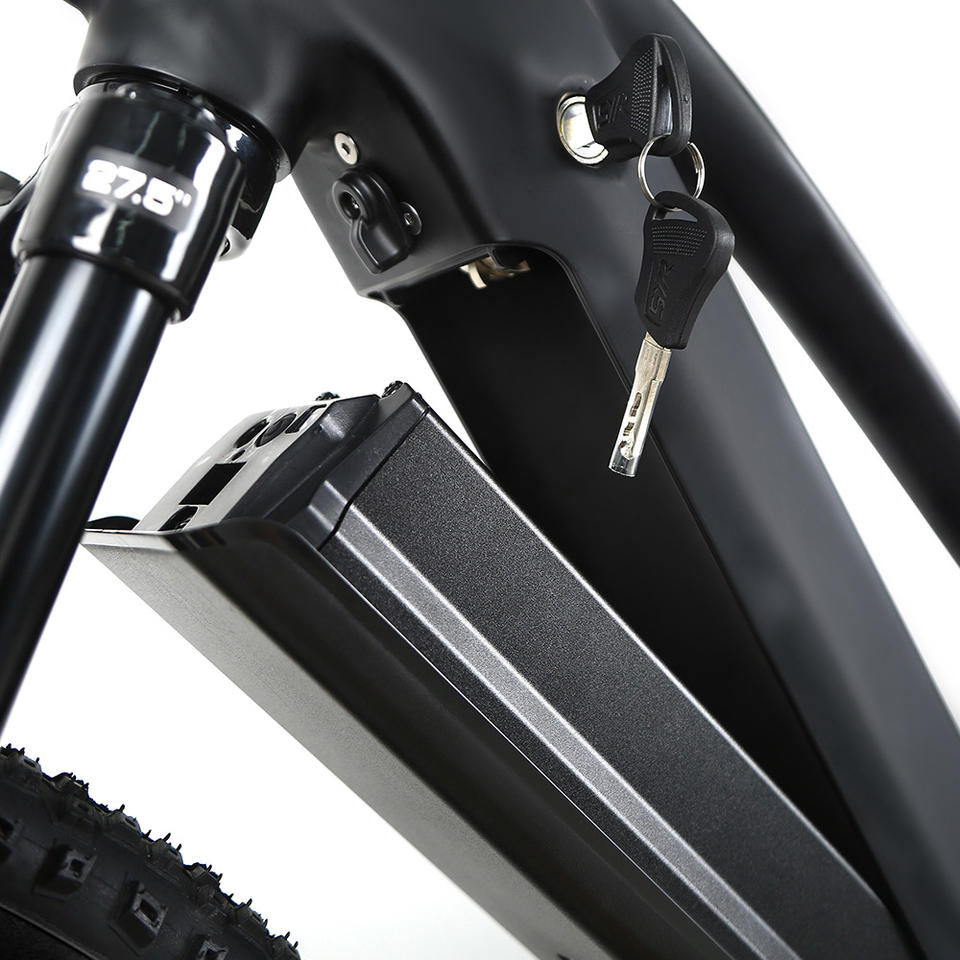

Battery: Samsung 21700 Li-ion, 720Wh, 48V15A
-
Endurance (Pedal Assist): Max 120–140KM
-
Speed Limit: 25KMh Default (max 45KMh)
-
Pedal Sensor: Torque + Cadence, Throttle available
-
Charging Time: 5–6 Hours
-
Charger: 3A, DC2.1
-
HMI: CYC-C101, LCD digital, USB/Type-C
-
Waterproof: IP X6
Variant 1 – RS10S + M560 (10-Speed)
-
Derailleur Lever: RS (LTWOO) V5010-10S
-
Rear Derailleur: RS (LTWOO) V5010-10S
-
Cranksets: Matching with Mid Motor, 38T
-
Cassette: SUNSHINE-10S, 11-36T
-
Chain: SUMC-10S
-
Derailleur Lever: SHIMANO DEORE M4100-10S
-
Rear Derailleur: SHIMANO DEORE M4120-10S
-
Cranksets: Matching with Mid Motor, 38T
-
Cassette: SUNSHINE-10S, 11-36T
-
Chain: SUMC-10S
-
Derailleur Lever: SHIMANO DEORE M6100-12S
-
Rear Derailleur: SHIMANO DEORE M6100-12S
-
Cranksets: Matching with Mid Motor, 38T
-
Cassette: SUNSHINE-12S, 11-50T
-
Chain: SUMC-12S
-
Hub: RS Alu alloy, 2-sealed Bearings, HG, Disc, 32 Holes
-
Rim: RS, Alu alloy with Double-wall & Rivets, W30×H21mm
-
Spoke: SHUNJIU, Circular 14G
-
Tire: CST, 27.5×2.4"
-
Brake: SHIMANO MT200 hydraulic disc brake, 180/180mm
-
Grips: Circular 22.2×120mm, PU leather & locking Ring
-
Saddle: RS, Comfortable and Thickened for MTB
-
Pedals: RS, Alu alloy & Skid resistant for MTB
Cyctrac EC1 Features
Why choose this bike
AL6061 Alloy Frame
Strong, smooth-weld frame with internal cable routing for a clean, modern look.
Strong, smooth-weld frame with internal cable routing for a clean, modern look.
Coil Suspension
RS coil fork with manual lockout provides comfort and control on mixed surfaces.
RS coil fork with manual lockout provides comfort and control on mixed surfaces.
10-Speed System
LTWOO V5010 shifters and derailleur offer smooth shifting for varied terrain.
LTWOO V5010 shifters and derailleur offer smooth shifting for varied terrain.
Hydraulic Braking
TEKTRO hydraulic disc brakes ensure reliable stopping power in all conditions.
TEKTRO hydraulic disc brakes ensure reliable stopping power in all conditions.
Durable Wheelset
RS double-wall rims and INNOVA PRO tires provide stability and long-lasting performance.
RS double-wall rims and INNOVA PRO tires provide stability and long-lasting performance.
Color Options
Matte Black, Matte Dark Gray, Cement Gray, and Dark Green finishes available.
Matte Black, Matte Dark Gray, Cement Gray, and Dark Green finishes available.
Alloy Frame & Suspension
Drivetrain & Control
Learn how the AL6061 frame, coil suspension, and LTWOO 10-speed system create a stable and comfortable riding experience.
EC1 Overview
M560 Mid-Drive
See how the EC1’s Bafang M510 motor delivers 110 N.m of torque and smooth pedal assistance for everyday riding and trail use.
