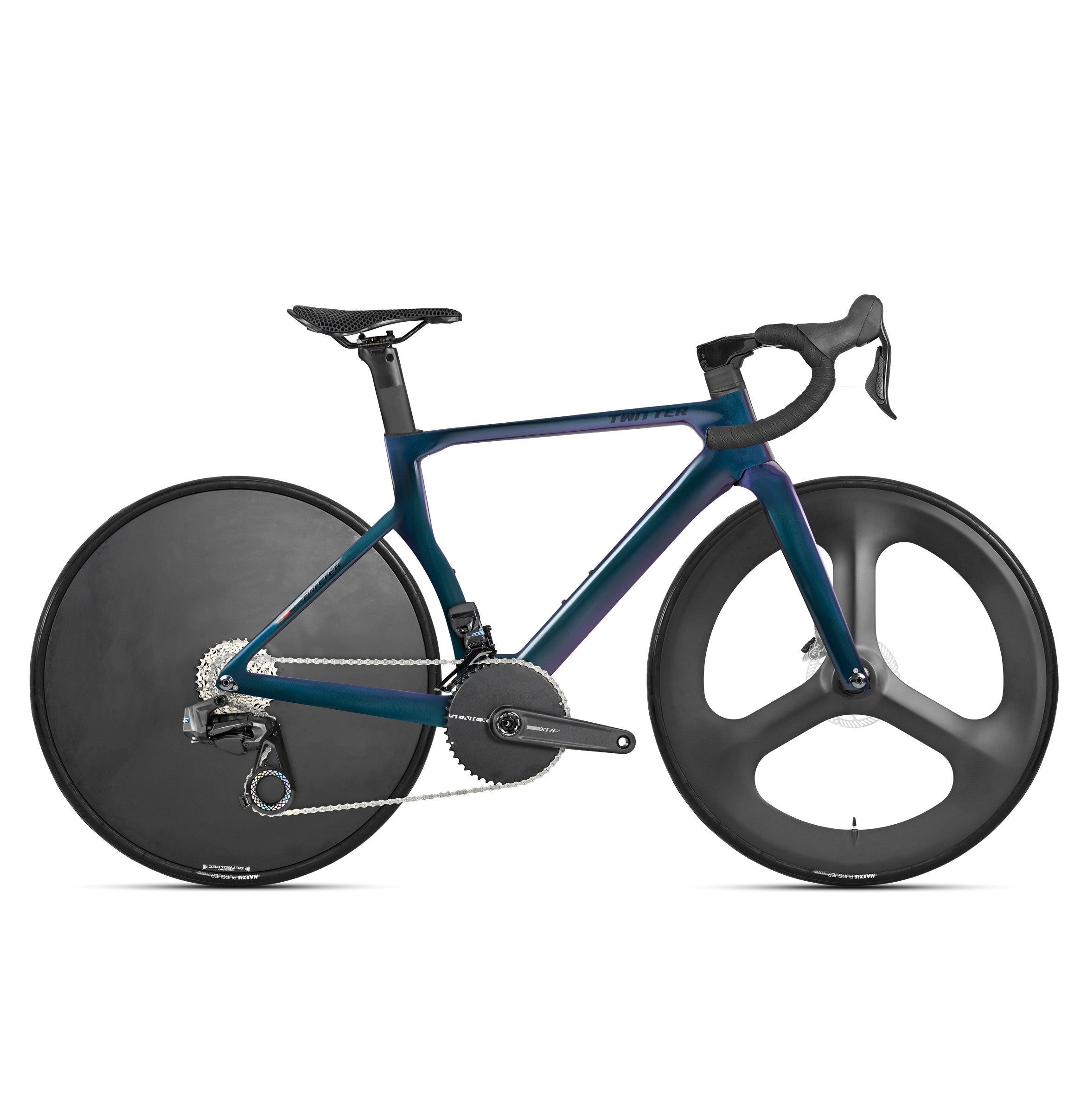

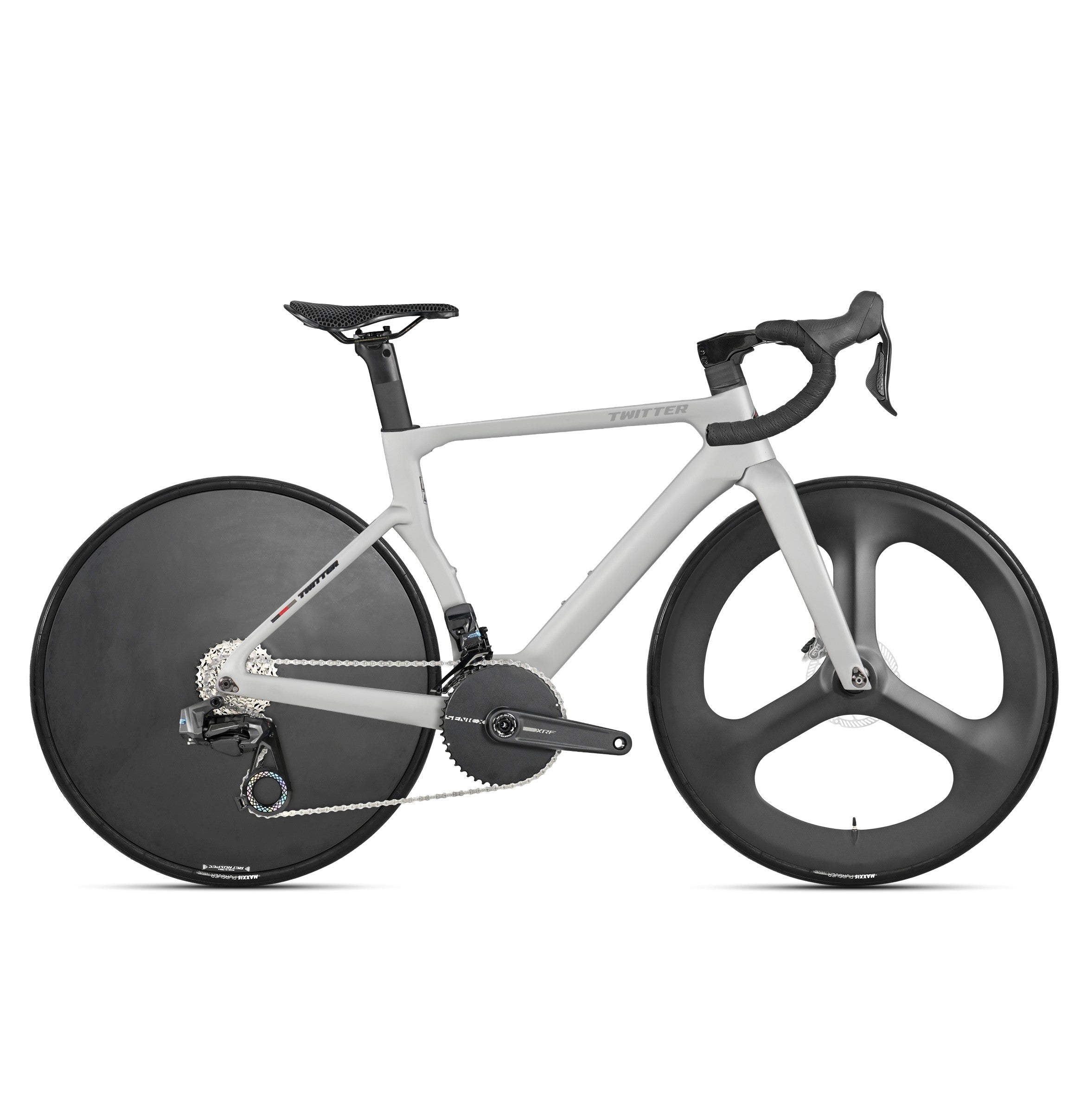

T8 Pro 3 Spoke Full Carbon Fiber Road Bike
/
Specification
Specification
Key Components
-
Wheel Size: 700C.
-
Frame Size: 43.5cm / 46cm / 48cm / 50cm / 52cm / 54cm.
-
Bike Color: multiple colors available.
-
Net Weight: 8.9 kg.
Frame & Structure
-
Frame: T8 (Disc & Thru-axle 12×142mm), high modulus Carbon Fiber, Aero design, full internal cable routing.
-
Fork: T8 (Disc & Thru-axle 12×100mm), high modulus Carbon Fiber, Road Rigid Fork.
-
Handlebar Set: High modulus 3K Carbon Fiber Integrated Handlebar & Stem (380×80 / 400×90 / 420×100mm), full internal cable routing.
-
Seat Post: High modulus Carbon Fiber, Aero-Racing profile.
-
Clamps: Hidden screw fit to frame.
-
Head Set: CNC aluminum alloy with sealed bearings (52×52mm).
-
Washer: Dedicated for internal cables.
-
Bottom Bracket: Threaded T47, Hollow Bearings (29mm or 24mm).
Drivetrain Options
Variant 1 – Wheeltop EVO TX Wireless (24S):
-
Derailleur Handle: Wheeltop EVO TX wireless 2×12S (carbon shifter).
-
Front Derailleur: Wheeltop EVO TX wireless 2-speed.
-
Rear Derailleur: Wheeltop EVO TX wireless 12-speed Carbon, large carbon jockey wheels.
-
Crankset: SENICX-XRF Aluminum Alloy DUB 30–46T.
-
Cassette: SHIMANO 105/R7100, 12-speed, 11–34T.
-
Chain: SHIMANO HG6100-12S.
-
Bottom Bracket: Threaded T47×29mm, Hollow Bearings.
-
Brake: CNC four-piston hydraulic disc, IIIPRO Centerlock heat-dissipating rotors 160/160mm.
Variant 2 – SHIMANO 105/R7100 (24S):
-
Derailleur Handle: SHIMANO 105/R7120 2×12S.
-
Front Derailleur: SHIMANO 105/R7100 2-speed.
-
Rear Derailleur: SHIMANO 105/R7100 12-speed.
-
Crankset: SHIMANO 105/R7100 Hollow, 34–50T.
-
Cassette: SHIMANO 105/R7100, 12-speed, 11–34T.
-
Chain: SHIMANO HG6100-12S.
-
Bottom Bracket: Threaded T47×24mm, Hollow Bearings.
-
Brake: SHIMANO 105/R7070 hydraulic disc, IIIPRO Centerlock heat-dissipating rotors 160/160mm.
Wheelset & Tires
-
Hubs: RS Aluminum Alloy, 36T Ratchet System, 4 sealed bearings, Centerlock Disc, Thru-Axle F12×100 / R12×142.
-
Rims: RS high-modulus Carbon Fiber, front tri-spoke wheel & rear disc wheel.
-
Tires: MAXXIS PURSUER, lightweight folding, 700×28C, black.
Additional Components
-
Belt: PU, comfortable & skid-resistant.
-
Saddle: 3D printed lightweight saddle.
-
Pedals: Lightweight & skid-resistant design.
-
Cables: JAGWIRE performance cables.
Included Accessories
-
Standard safety reflectors (handlebar, seat post, front wheel, rear wheel).
-
PC bottle cage + tools.
-
Instruction manual + warranty card.
Description
Description
Geometry Image
Geometry Image
T8 Pro 3 Spoke Features
Why choose this bike
Disc & Thru-axle 12×142mm frame with full internal cable routing and aero design.
High Modulus T8 Aero Carbon Fiber
High Modulus T8 Aero Carbon Fiber
T8 High Modulus Carbon Rigid Fork
Road rigid fork with Disc & Thru-axle 12×100mm and high modulus carbon construction.
Road rigid fork with Disc & Thru-axle 12×100mm and high modulus carbon construction.
Shimano 105 R7100 or Wheeltop Wireless
Professional 24-speed system with either wireless electronic or Shimano hydraulic shifting options.
Professional 24-speed system with either wireless electronic or Shimano hydraulic shifting options.
Hydraulic Disc Braking System
High-performance hydraulic disc brakes with IIIPRO Centerlock heat-dissipating 160mm rotors.
High-performance hydraulic disc brakes with IIIPRO Centerlock heat-dissipating 160mm rotors.
Carbon Fiber Tri-Spoke & Disc Wheelset
RS high-modulus carbon wheelset featuring a front tri-spoke wheel and a rear disc wheel.
RS high-modulus carbon wheelset featuring a front tri-spoke wheel and a rear disc wheel.
Premium Aero Paint Selection
Available in White, Matte Black, Matte Dark Gray, and stunning Full Holographic finishes.
Available in White, Matte Black, Matte Dark Gray, and stunning Full Holographic finishes.
Professional 24-speed system
Shimano 105 R7100 or Wheeltop Wireless
T8 Aero Carbon Fiber
High-performance
Carbon wheelset featuring a front tri-spoke wheel
Carbon Fiber Tri-Spoke & Disc Wheelset
